Infrastructure Quality

Christian Kaestner

Required reading: Eric Breck, Shanqing Cai, Eric Nielsen, Michael Salib, D. Sculley. The ML Test Score: A Rubric for ML Production Readiness and Technical Debt Reduction. Proceedings of IEEE Big Data (2017)

Recall: Who is to blame?

class Algorithms {
    /**
     * This method finds the shortest distance between to
     * verticies. It returns -1 if the two nodes are not
     * connected.
    */
    int shortestDistance(…) {…}
}

class Algorithms {
    /**
     * This method finds the shortest distance between to
     * verticies. Method is only supported
     * for connected verticies.
    */
    int shortestDistance(…) {…}
}

Anatomy of a Unit Test

import org.junit.Test;
import static org.junit.Assert.assertEquals;

public class AdjacencyListTest {
    @Test
    public void testSanityTest(){
        // set up
        Graph g1 = new AdjacencyListGraph(10);
        Vertex s1 = new Vertex("A");
        Vertex s2 = new Vertex("B");
        // check expected results (oracle)
        assertEquals(true, g1.addVertex(s1));
        assertEquals(true, g1.addVertex(s2));
        assertEquals(true, g1.addEdge(s1, s2));
        assertEquals(s2, g1.getNeighbors(s1)[0]);
    }

    // use abstraction, e.g. common setups
    private int helperMethod…
}

Behavior-Driven Testing

A Stack
- should pop values in last-in-first-out-order
  + Given a non-empty stack
  + When pop is invoked on the stack
  + Then the most recently pushed element should be returned
  + And the stack should have one less item than before
- should throw NoSuchElementException if an empty stack is popped
  + Given an empty stack
  + When pop is invoked on the stack
  + Then NoSuchElementException should be thrown
  + And the stack should still be empty

Behavior-Driven Testing

import org.scalatest.FunSpec
import scala.collection.mutable.Stack
class StackSpec extends FunSpec {
  describe("A Stack") {
    it("should pop values in last-in-first-out order") {
      val stack = new Stack[Int]
      stack.push(1); stack.push(2)
      assert(stack.pop() === 2); assert(stack.pop() === 1)
    }
    it("should throw NoSuchElementException if an empty stack is popped") {
      val emptyStack = new Stack[String]
      intercept[NoSuchElementException] {
        emptyStack.pop()
      }
    }
  }
}

Example: Using Test Data

DataTable getData(Stream stream, DataCleaner cleaner) { ... }

@Test void test() {
    Stream stream = openKafkaStream(...)
    DataTable output = getData(testStream, new DefaultCleaner());
    assert(output.length==10)
}

Example: Using Test Data

DataTable getData(Stream stream, DataCleaner cleaner) { ... }

@Test void test() {
    Stream testStream = new Stream() {
        int idx = 0;
        // hardcoded or read from test file
        String[] data = [ ... ]
        public void connect() { }
        public String getNext() {
            return data[++idx];
        }
    }
    DataTable output = getData(testStream, new DefaultCleaner());
    assert(output.length==10)
}

Example: Mocking a DataCleaner Object

DataTable getData(KafkaStream stream, DataCleaner cleaner) { ... }

@Test void test() {
    DataCleaner dummyCleaner = new DataCleaner() {
        boolean isValid(String row) { return true; }
        ...
    }
    DataTable output = getData(testStream, dummyCleaner);
    assert(output.length==10)
}

Example: Mocking a DataCleaner Object

DataTable getData(KafkaStream stream, DataCleaner cleaner) { ... }

@Test void test() {
    DataCleaner dummyCleaner = new DataCleaner() {
        int counter = 0;
        boolean isValid(String row) {
            counter++;
            return counter!=3;
        }
        ...
    }
    DataTable output = getData(testStream, dummyCleaner);
    assert(output.length==9)
}

Mocking frameworks provide infrastructure for expressing such tests compactly.

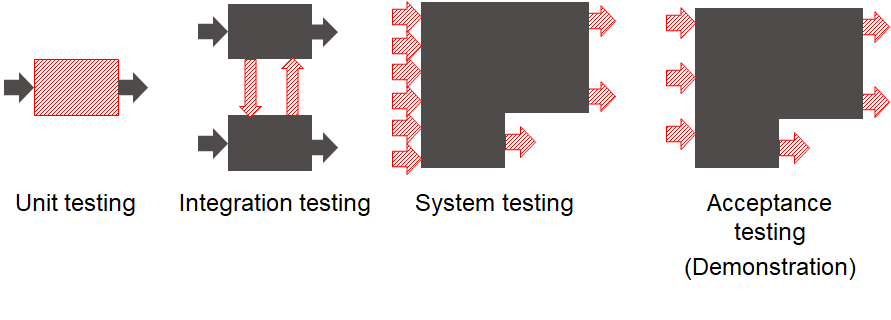

Integration and system tests

Test larger units of behavior

Often based on use cases or user stories -- customer perspective

@Test void gameTest() {
    Poker game = new Poker();
    Player p = new Player();
    Player q = new Player();
    game.shuffle(seed)
    game.add(p);
    game.add(q);
    game.deal();
    p.bet(100);
    q.bet(100);
    p.call();
    q.fold();
    assert(game.winner() == p);
}

Test Error Handling

@Test void test() {
    DataTable data = new DataTable();
    try {
        Model m = learn(data);
        Assert.fail();
    } catch (NoDataException e) { /* correctly thrown */ }
}

Test "Faulty" Environment

DataTable getData(Stream stream, DataCleaner cleaner) { ... }

@Test void test() {
    Stream testStream = new Stream() {
        public void connect() {
            throw new IOException("cannot establish connection")
        }
        public String getNext() {
            throw new IOException("connection dropped")
        }
    }
    try {
        DataTable output = getData(testStream, new DefaultCleaner());
        Assert.fail();
    } catch (DataTableException e) { /* correctly handled */ }
}

Test Local Error Handling (Modular Protection)

@Test void test() {
    Stream testStream = new Stream() {
        int idx = 0;
        public void connect() {
            if (++idx < 3)
                throw new IOException("cannot establish connection")
        }
        public String getNext() { ... }
    }
    DataLoader loader = new DataLoader(testStream, new DefaultCleaner());
    ModelBuilder model = new ModelBuilder(loader, ...);
    // assume all exceptions are handled correctly internally
    assert(model.accuracy > .91)
}

Test Monitoring

Inject/simulate faulty behavior
Mock out notification service used by monitoring
Assert notification

class MyNotificationService extends NotificationService {
    public boolean receivedNotification = false;
    public void sendNotification(String msg) { receivedNotification = true; }
}
@Test void test() {
    Server s = getServer();
    MyNotificationService n = new MyNotificationService();
    Monitor m = new Monitor(s, n);
    s.stop();
    s.request();
    s.request();
    wait();
    assert(n.receivedNotification);
}

Chaos Toolkit

Infrastructure for chaos experiments
Driver for various infrastructure and failure cases
Domain specific language for experiment definitions

{
    "version": "1.0.0",
    "title": "What is the impact of an expired certificate on our application chain?",
    "description": "If a certificate expires, we should gracefully deal with the issue.",
    "tags": ["tls"],
    "steady-state-hypothesis": {
        "title": "Application responds",
        "probes": [
            {
                "type": "probe",
                "name": "the-astre-service-must-be-running",
                "tolerance": true,
                "provider": {
                    "type": "python",
                    "module": "os.path",
                    "func": "exists",
                    "arguments": {
                        "path": "astre.pid"
                    }
                }
            },
            {
                "type": "probe",
                "name": "the-sunset-service-must-be-running",
                "tolerance": true,
                "provider": {
                    "type": "python",
                    "module": "os.path",
                    "func": "exists",
                    "arguments": {
                        "path": "sunset.pid"
                    }
                }
            },
            {
                "type": "probe",
                "name": "we-can-request-sunset",
                "tolerance": 200,
                "provider": {
                    "type": "http",
                    "timeout": 3,
                    "verify_tls": false,
                    "url": "https://localhost:8443/city/Paris"
                }
            }
        ]
    },
    "method": [
        {
            "type": "action",
            "name": "swap-to-expired-cert",
            "provider": {
                "type": "process",
                "path": "cp",
                "arguments": "expired-cert.pem cert.pem"
            }
        },
        {
            "type": "probe",
            "name": "read-tls-cert-expiry-date",
            "provider": {
                "type": "process",
                "path": "openssl",
                "arguments": "x509 -enddate -noout -in cert.pem"
            }
        },
        {
            "type": "action",
            "name": "restart-astre-service-to-pick-up-certificate",
            "provider": {
                "type": "process",
                "path": "pkill",
                "arguments": "--echo -HUP -F astre.pid"
            }
        },
        {
            "type": "action",
            "name": "restart-sunset-service-to-pick-up-certificate",
            "provider": {
                "type": "process",
                "path": "pkill",
                "arguments": "--echo -HUP -F sunset.pid"
            },
            "pauses": {
                "after": 1
            }
        }
    ],
    "rollbacks": [
        {
            "type": "action",
            "name": "swap-to-vald-cert",
            "provider": {
                "type": "process",
                "path": "cp",
                "arguments": "valid-cert.pem cert.pem"
            }
        },
        {
            "ref": "restart-astre-service-to-pick-up-certificate"
        },
        {
            "ref": "restart-sunset-service-to-pick-up-certificate"
        }
    ]
}

http://principlesofchaos.org, https://github.com/chaostoolkit, https://github.com/Netflix/SimianArmy
