Process and Technical Debt
Christian Kaestner
Required Reading:
Sculley, David, Gary Holt, Daniel Golovin, Eugene Davydov, Todd Phillips, Dietmar Ebner, Vinay Chaudhary, Michael Young, Jean-Francois Crespo, and Dan Dennison. "Hidden technical debt in machine learning systems ." In Advances in neural information processing systems, pp. 2503-2511. 2015.
Suggested Readings:
Learning Goals
Contrast development processes of software engineers and data scientists
Outline process conflicts between different roles and suggest ways to mitigate them
Recognize the importance of process
Describe common agile practices and their goals
Understand and correctly use the metaphor of technical debt
Describe how ML can incur reckless and inadvertent technical debt, outline common sources of technical debt

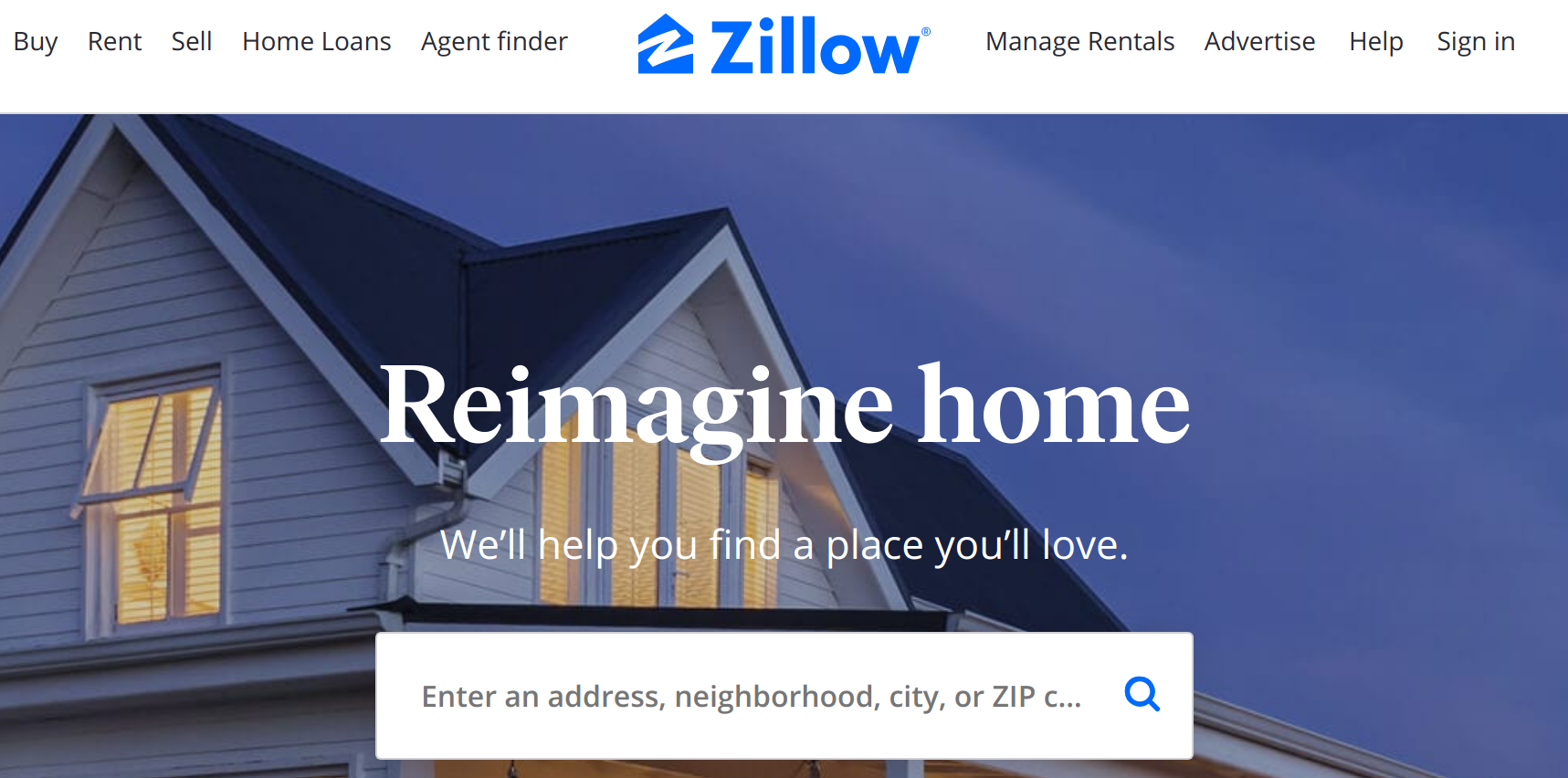

Case Study: Real-Estate Website

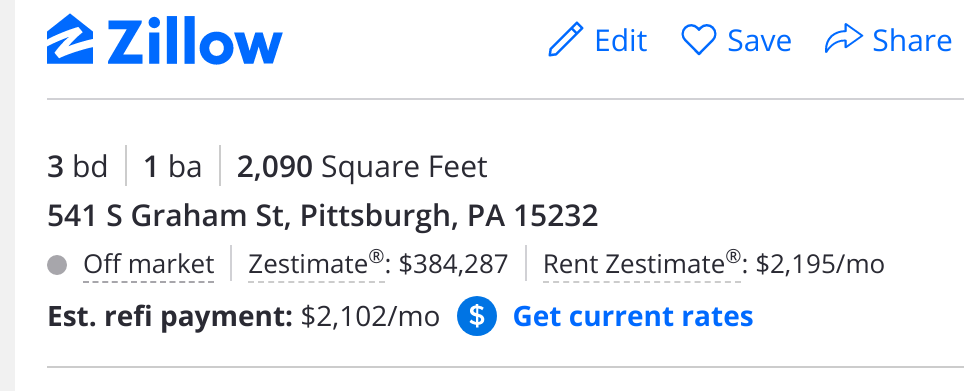

ML Component: Predicting Real Estate Value
Given a large database of house sales and statistical/demographic data from public records, predict the sales price of a house.
f ( s i z e , r o o m s , t a x , n e i g h b o r h o o d , . . . ) → p r i c e

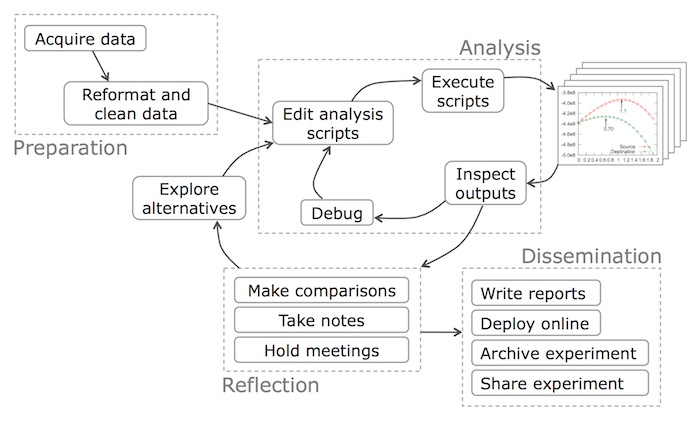

Data Science: Iteration and Exploration
Data Science is Iterative and Exploratory

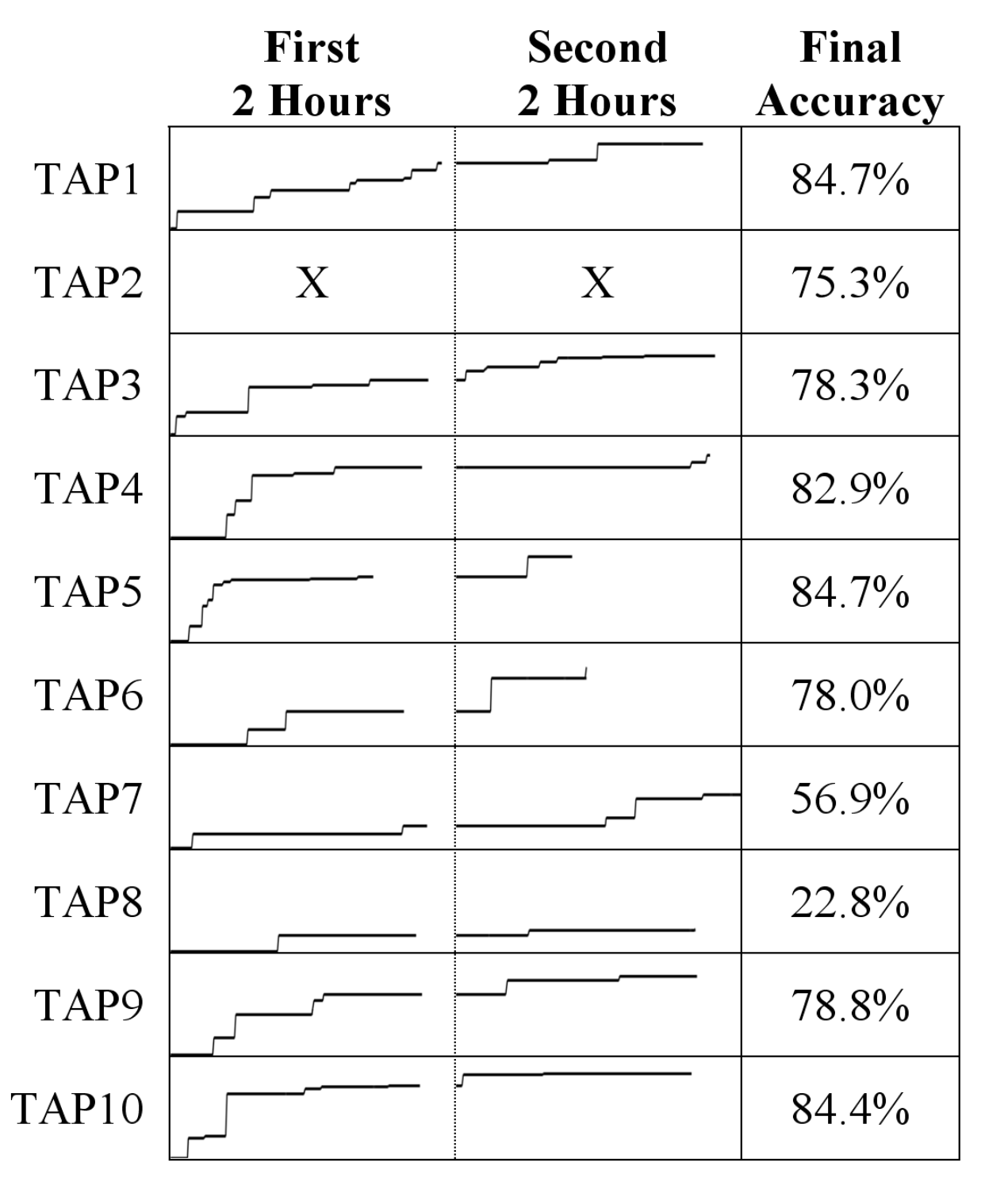

Source: Patel, Kayur, James Fogarty, James A. Landay, and Beverly Harrison. "Investigating statistical machine learning as a tool for software development ." In Proc. CHI, 2008.
This figure shows the result from a controlled experiment in which participants had 2 sessions of 2h each to build a model. Whenever the participants evaluated a model in the process, the accuracy is recorded. These plots show the accuracy improvements over time, showing how data scientists make incremental improvements through frequent iteration.
Data Science is Iterative and Exploratory
Science mindset: start with rough goal, no clear specification, unclear whether possible
Heuristics and experience to guide the process
Try and error, refine iteratively, hypothesis testing
Go back to data collection and cleaning if needed, revise goals
Share Experience?

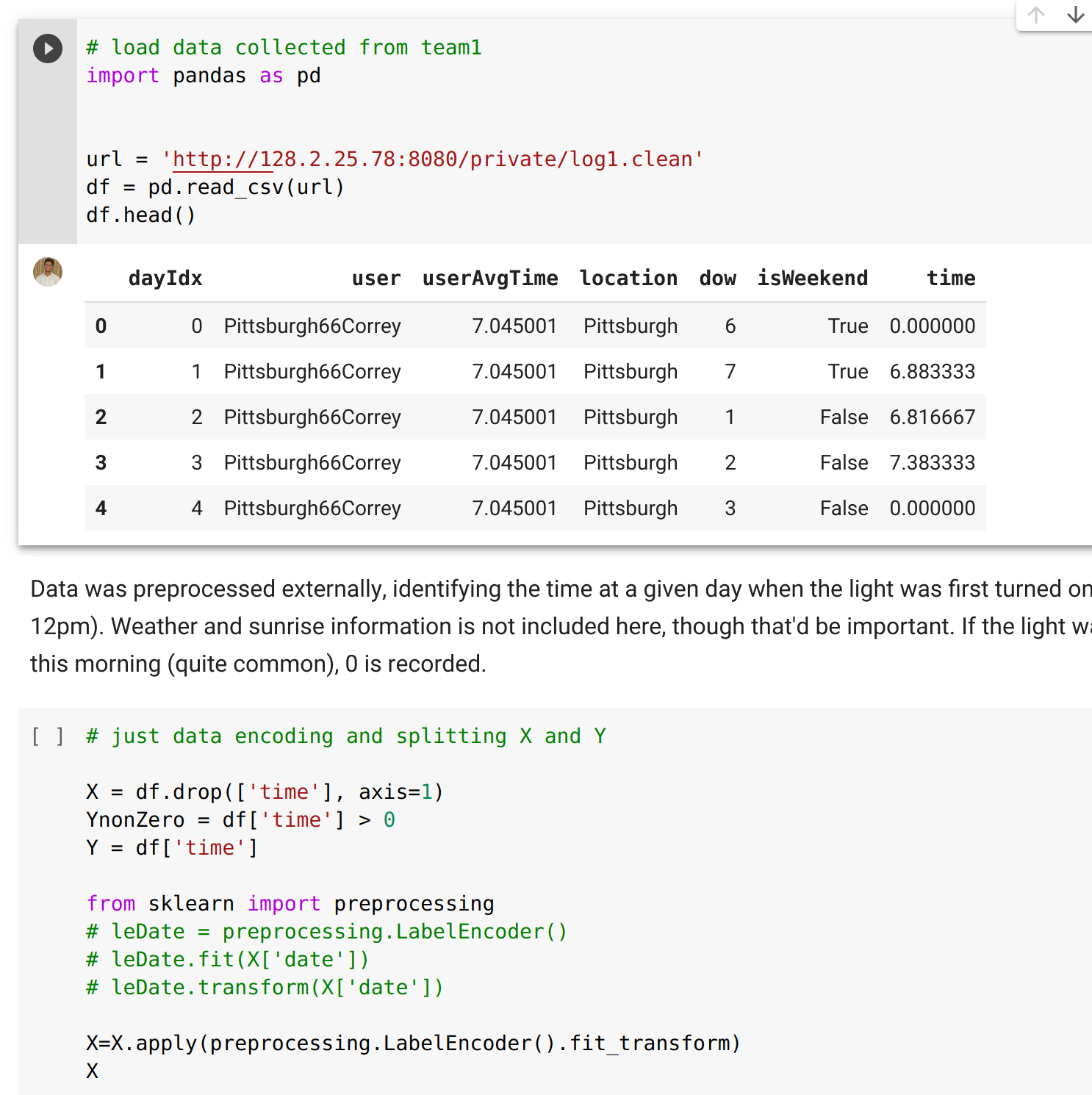

Computational Notebooks
Origins in "literal programming", interleaving text and code, treating programs as literature (Knuth'84)
First notebook in Wolfram Mathematica 1.0 in 1988
Document with text and code cells, showing execution results under cells
Code of cells is executed, per cell, in a kernel
Many notebook implementations and supported languages, Python + Jupyter currently most popular
Notebooks Support Iteration and Exploration
Quick feedback, similar to REPL
Visual feedback including figures and tables
Incremental computation: reexecuting individual cells
Quick and easy: copy paste, no abstraction needed
Easy to share: document includes text, code, and results
Brief Discussion: Notebook Limitations and Drawbacks?
Software Engineering Process
Innovative vs Routine Projects
Like data science tasks, most software projects are innovative
Google, Amazon, Ebay, Netflix
Vehicles and robotics
Language processing, Graphics, AI
Routine (now, not 20 years ago)
E-commerce websites?
Product recommendation? Voice recognition?
Routine gets automated -> innovation cycle
A Simple Process
Discuss the software that needs to be written
Write some code
Test the code to identify the defects
Debug to find causes of defects
Fix the defects
If not done, return to step 1
Software Process
“The set of activities and associated results that produce a software product”
Examples?
Writing down all requirements
Require approval for all changes to requirements
Use version control for all changes
Track all reported bugs
Review requirements and code
Break down development into smaller tasks and schedule and monitor them
Planning and conducting quality assurance
Have daily status meetings
Use Docker containers to push code between developers and operation

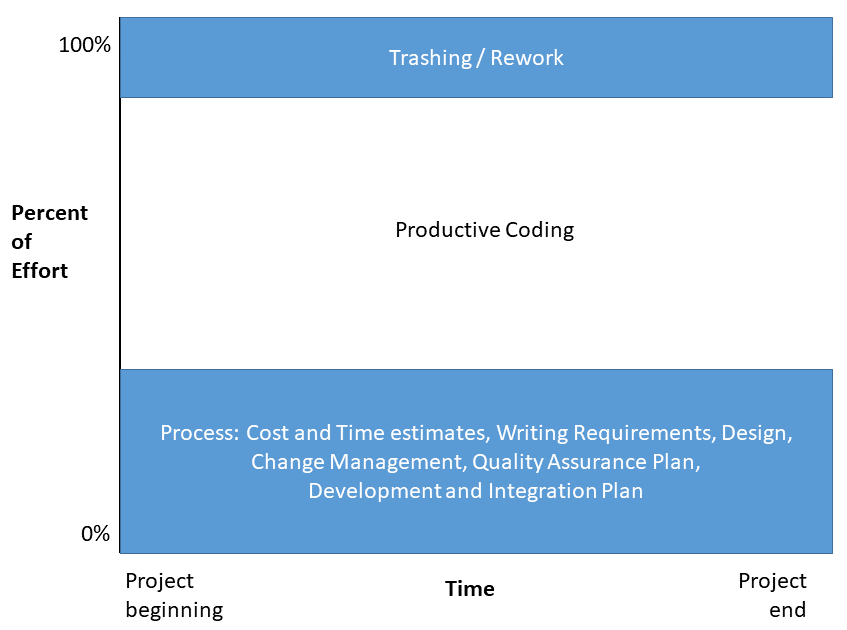

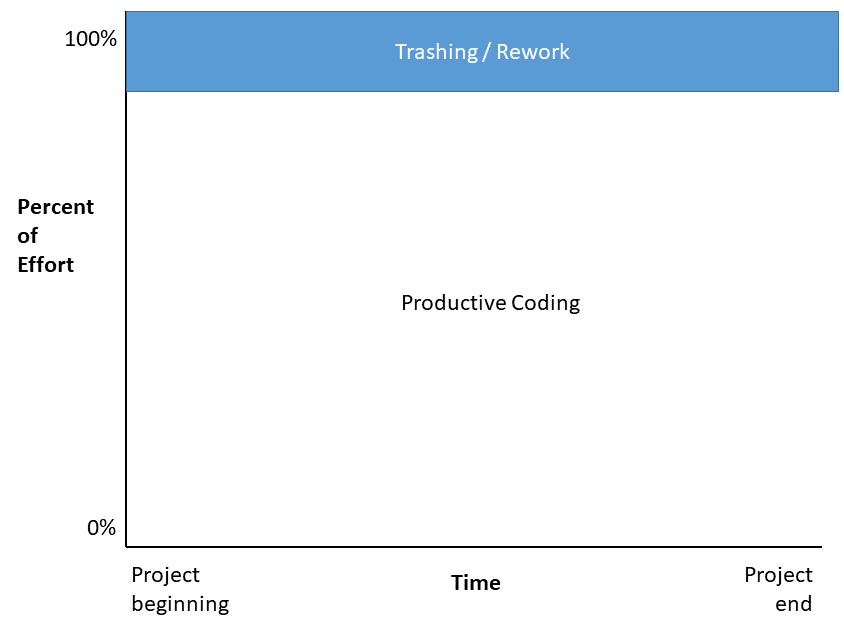

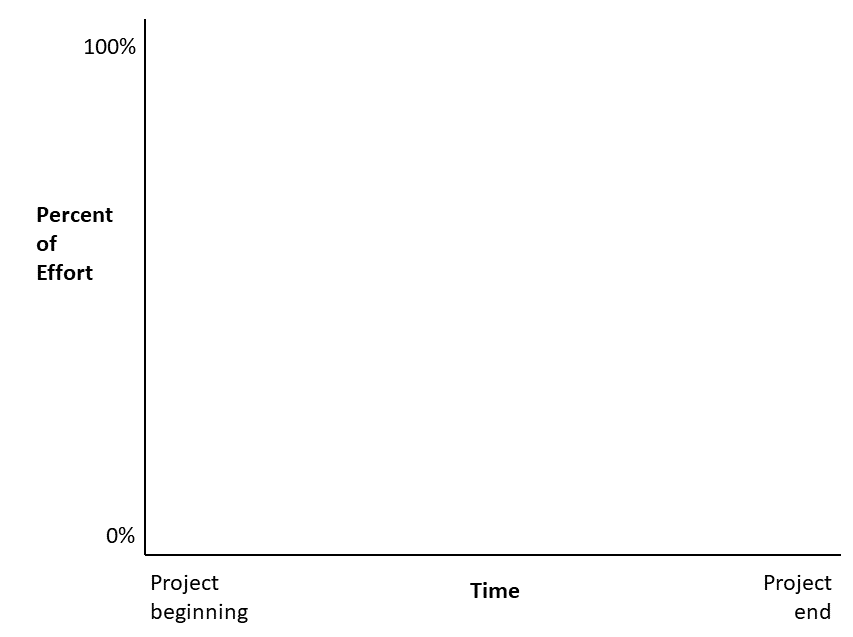

Visualization following McConnell, Steve. Software project survival guide. Pearson Education, 1998.
Idea: spent most of the time on coding, accept a little rework
negative view of process. pure overhead, reduces productive work, limits creativity

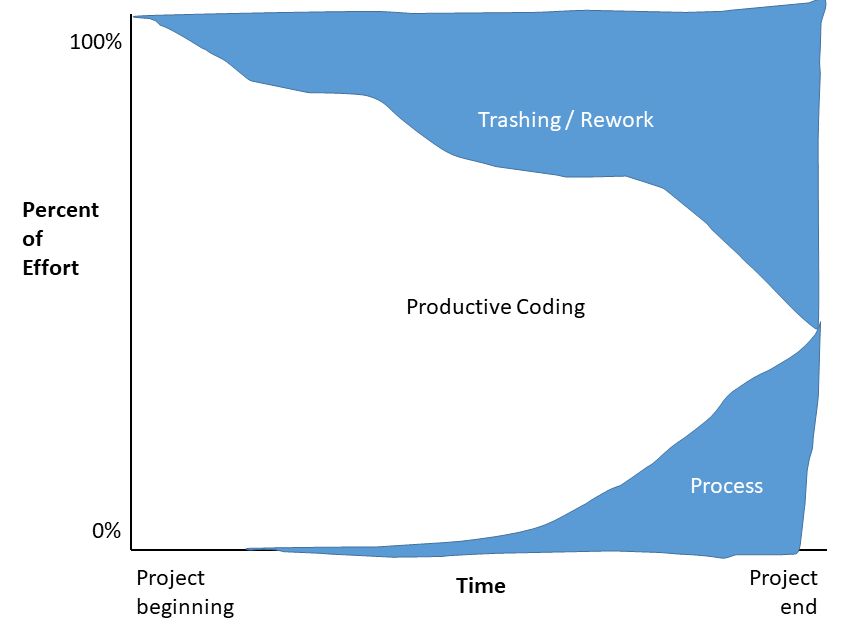

Real experience if little attention is payed to process: increasingly complicated, increasing rework; attempts to rescue by introducing process
Example of Process Problems?
Collect examples of what could go wrong:
Change Control: Mid-project informal agreement to changes suggested by customer or manager. Project scope expands 25-50%
Quality Assurance: Late detection of requirements and design issues. Test-debug-reimplement cycle limits development of new features. Release with known defects.
Defect Tracking: Bug reports collected informally, forgotten
System Integration: Integration of independently developed components at the very end of the project. Interfaces out of sync.
Source Code Control: Accidentally overwritten changes, lost work.
Scheduling: When project is behind, developers are asked weekly for new estimates.
Typical Process Steps (not necessarily in this order)
Understand customers, identify what to build, by when, budget
Identify relevant qualities, plan/design system accordingly
Test, deploy, maintain, evolve
Plan, staff, workaround
Survival Mode
Missed deadlines -> "solo development mode" to meet own deadlines
Ignore integration work
Stop interacting with testers, technical writers, managers, ...

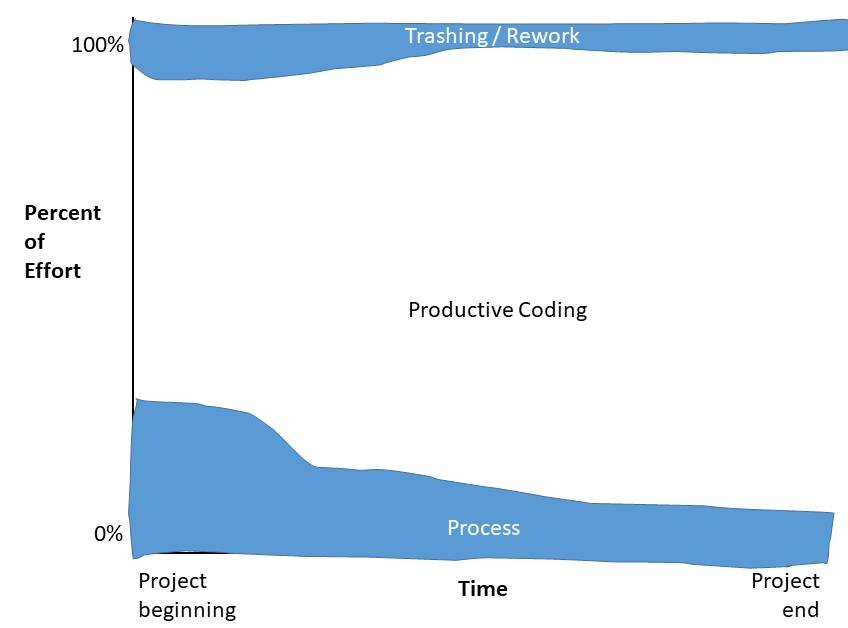

Hypothesis: Process increases flexibility and efficiency + Upfront investment for later greater returns

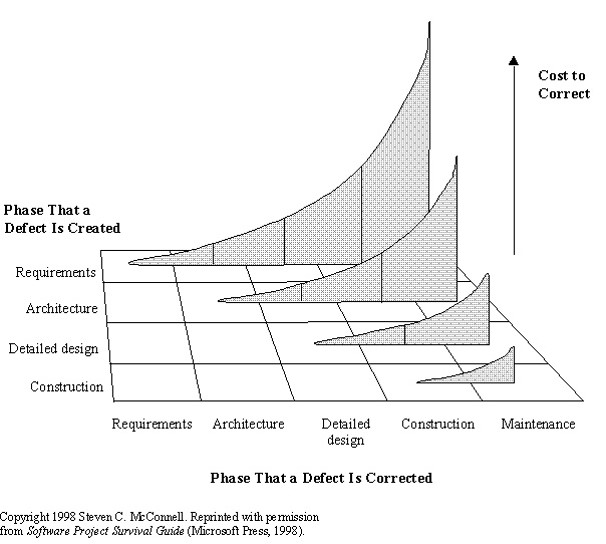

Empirically well established rule: Bugs are increasingly expensive to fix the larger the distance between the phase where they are created vs where they are corrected.

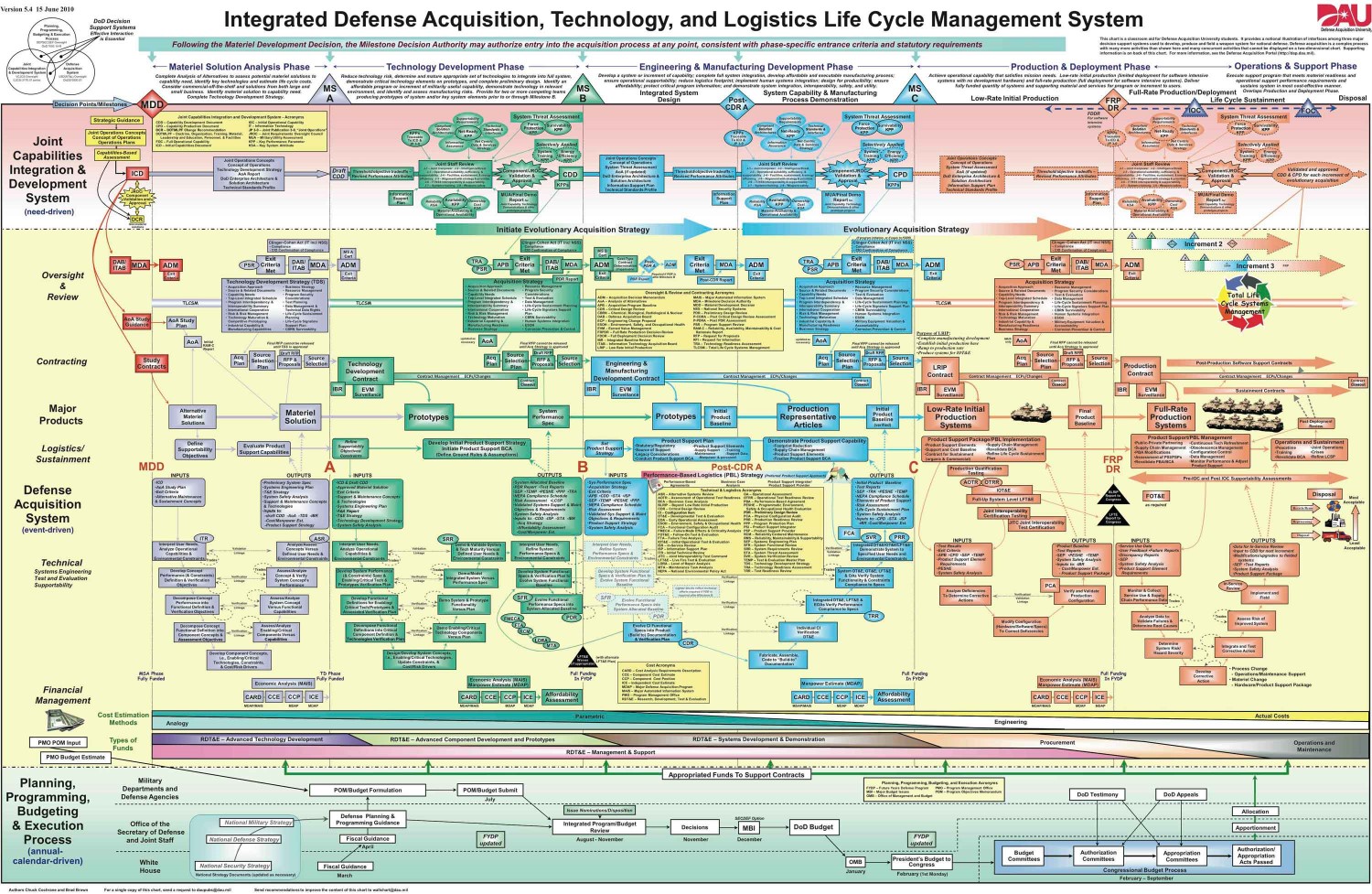

Complicated processes like these are often what people associate with "process". Software process is needed, but does not need to be complicated.
Ad-hoc Processes
Discuss the software that needs to be written
Write some code
Test the code to identify the defects
Debug to find causes of defects
Fix the defects
If not done, return to step 1

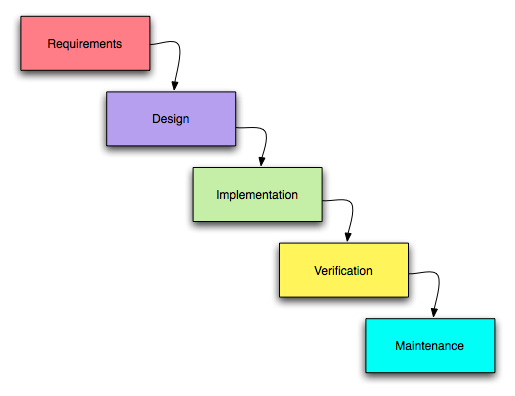

Waterfall Model
taming the chaos, understand requirements, plan before coding, remember testing
(CC-BY-SA-2.5 )
Although dated, the key idea is still essential -- think and plan before implementing. Not all requirements and design can be made upfront, but planning is usually helpful.
Risk First: Spiral Model
incremental prototypes, starting with most risky components
Constant iteration: Agile
working with customers, constant replanning
(CC BY-SA 4.0, Lakeworks)
Contrasting Process Models
Ad-hoc -- Waterfall -- Spiral -- Agile
Data Science vs Software Engineering
Discussion: Iteration in Notebook vs Agile?
There is similarity in that there is an iterative process,
but the idea is different and the process model seems mostly orthogonal
to iteration in data science.
The spiral model prioritizes risk, especially when it is not clear
whether a model is feasible. One can do similar things in model development, seeing whether it is feasible with data at hand at all and build an early
prototype, but it is not clear that an initial okay model can be improved
incrementally into a great one later.
Agile can work with vague and changing requirements, but that again seems
to be a rather orthogonal concern. Requirements on the product are not so
much unclear or changing (the goal is often clear), but it's not clear
whether and how a model can solve it.
Poor Software Engineering Practices in Notebooks?
*
Little abstraction
Global state
No testing
Heavy copy and paste
Little documentation
Poor version control
Out of order execution
Poor development features (vs IDE) Understanding Data Scientist Workflows
Instead of blindly recommended "SE Best Practices" understand context
Documentation and testing not a priority in exploratory phase
Help with transitioning into practice
From notebooks to pipelines
Support maintenance and iteration once deployed
Provide infrastructure and tools
Data
Scientists
Software
Engineers
Process for AI-Enabled Systems
Integrate Software Engineering and Data Science processes
Establish system-level requirements (e.g., user needs, safety, fairness)
Inform data science modeling with system requirements (e.g., privacy, fairness)
Try risky parts first (most likely include ML components; ~spiral)
Incrementally develop prototypes, incorporate user feedback (~agile)
Provide flexibility to iterate and improve
Design system with characteristics of AI component (e.g., UI design, safeguards)
Plan for testing throughout the process and in production
Manage project understanding both software engineering and data science workflows
No existing "best practices" or workflow models
Technical debt
Analogy to financial debt
Have a benefit now (e.g., progress quickly, release now)
accepting later cost (loss of productivity, e.g., higher maintenance/operating cost, rework)
debt accumulates and can suffocate project

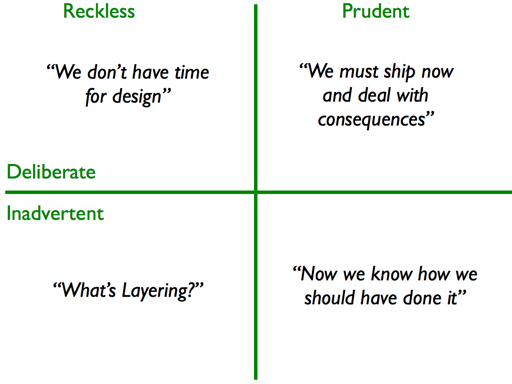

Ideally a deliberate decision (short term tactical or long term strategic)
Ideally track debt and plan for paying it down
Examples?
Technical Debt from ML Components?
(see reading)
The Notebook
Jupyter Notebooks are a gift from God to those who work with data. They allow us to do quick experiments with Julia, Python, R, and more -- John Paul Ada
ML and Technical Debt
Often reckless and inadvertent in inexperienced teams ML can seem like an easy addition, but it may cause long-term costs
Needs to be maintained, evolved, and debugged
Goals may change, environment may change, some changes are subtle
Example problems
Systems and models are tangled and changing one has cascading effects on the other
Untested, brittle infrastructure; manual deployment
Unstable data dependencies, replication crisis
Data drift and feedback loops
Magic constants and dead experimental code paths
Controlling Technical Debt from ML Components
Controlling Technical Debt from ML Components
Avoid AI when not needed
Understand and document requirements, design for mistakes
Build reliable and maintainable pipelines, infrastructure, good engineering practices
Test infrastructure, system testing, testing and monitoring in production
Test and monitor data quality
Understand and model data dependencies, feedback loops, ...
Document design intent and system architecture
Strong interdisciplinary teams with joint responsibilities
Document and track technical debt
...
Summary
Data scientists and software engineers follow different processes
ML projects need to consider process needs of both
Iteration and upfront planning are both important, process models codify good practices
Deliberate technical debt can be good, too much debt can suffocate a project
Easy to amount (reckless) debt with machine learning
