Machine Learning in Production
Summary & Reflection
Today
(1)
Looking back at the semester
(413 slides in 40 min)
(2)
Discussion of future of ML in Production
(3)
Feedback for future semesters
Machine Learning in Production
Motivation, Syllabus, and Introductions
Learning Goals
- Understand how ML components are parts of larger systems
- Illustrate the challenges in engineering an ML-enabled system beyond accuracy
- Explain the role of specifications and their lack in machine learning and the relationship to deductive and inductive reasoning
- Summarize the respective goals and challenges of software engineers vs data scientists
- Explain the concept and relevance of "T-shaped people"

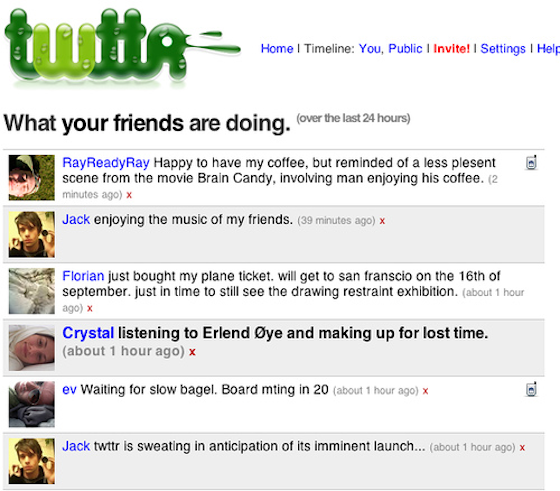

Catastrophic Success
Breakout: Likely challenges in building commercial product?
As a group, think about challenges that the team will likely focus when turning their research into a product:
- One machine-learning challenge
- One engineering challenge in building the product
- One challenge from operating and updating the product
- One team or management challenge
- One business challenge
- One safety or ethics challenge
Post answer to #lecture on Slack and tag all group members
ML in a Production System
By Steven Geringer, via Ryan Orban. Bridging the Gap Between Data Science & Engineer: Building High-Performance Teams. 2016

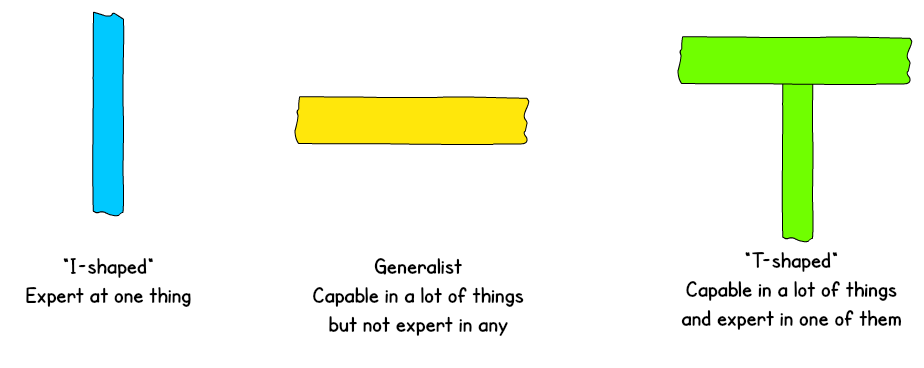

T-Shaped People
Broad-range generalist + Deep expertise
Figure: Jason Yip. Why T-shaped people?. 2018
Syllabus and Class Structure
17-445/17-645/17-745, Fall 2022, 12 units
Monday/Wednesdays 1:25-2:45pm
Recitation Fridays 10:10-11:00am / 1:25-2:45pm
First Homework Assignment
"Coding warmup assignment"
Out now, due Sep 7
Enhance simple web application with ML-based feature: Automated image captioning
Open ended coding assignment, change existing code, learn new APIs
Reading Assignments & Quizzes
Building Intelligent Systems by Geoff Hulten
https://www.buildingintelligentsystems.com/
Most chapters assigned at some point in the semester
Supplemented with research articles, blog posts, videos, podcasts, ...
Electronic version in the library
Timeline
Grading Philosophy
Specification grading, based in adult learning theory
Giving you choices in what to work on or how to prioritize your work
We are making every effort to be clear about expectations (specifications), will clarify if you have questions
Assignments broken down into expectations with point values, each graded pass/fail
Opportunities to resubmit work until last day of class

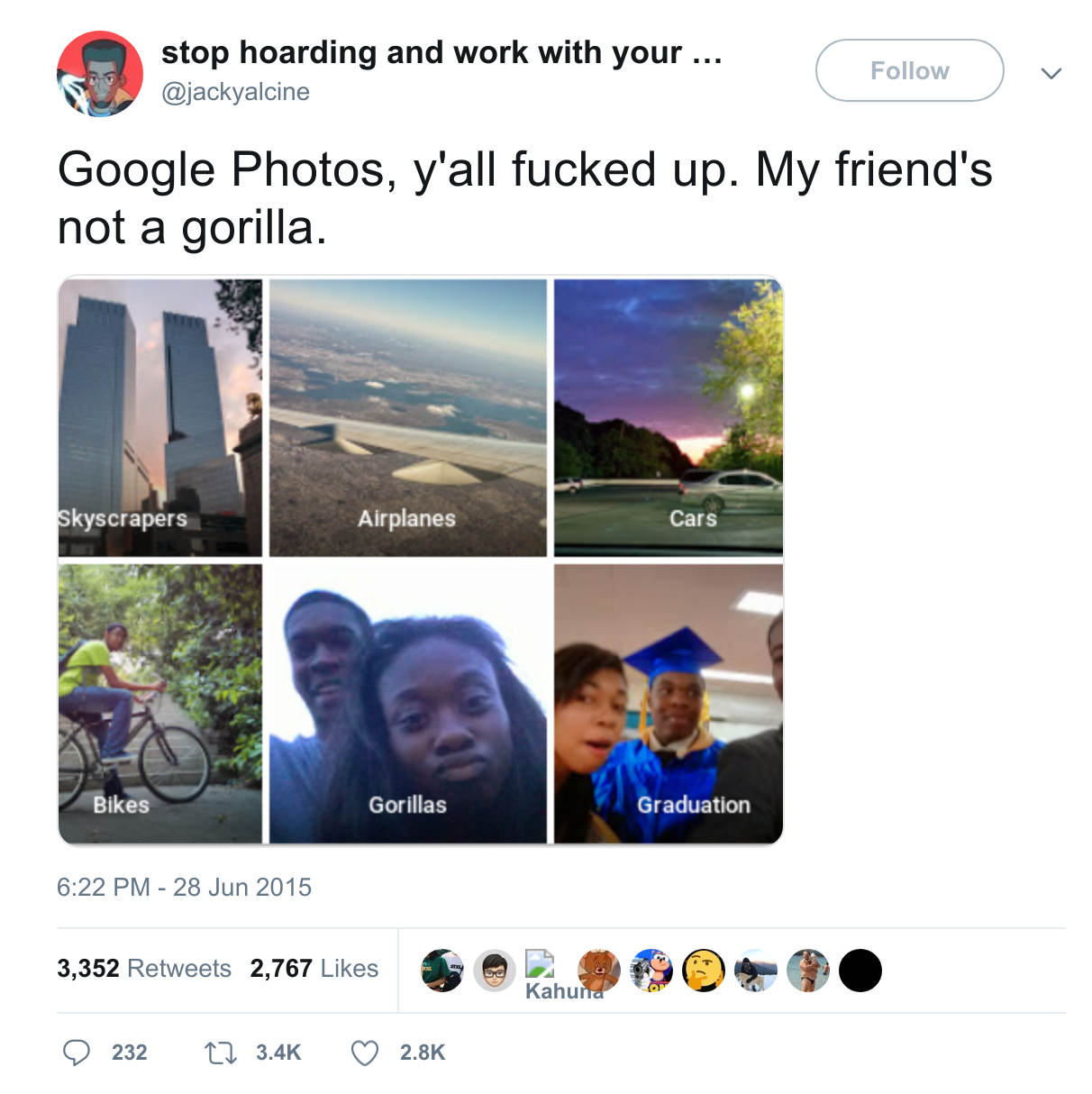

ML Models Make Mistakes

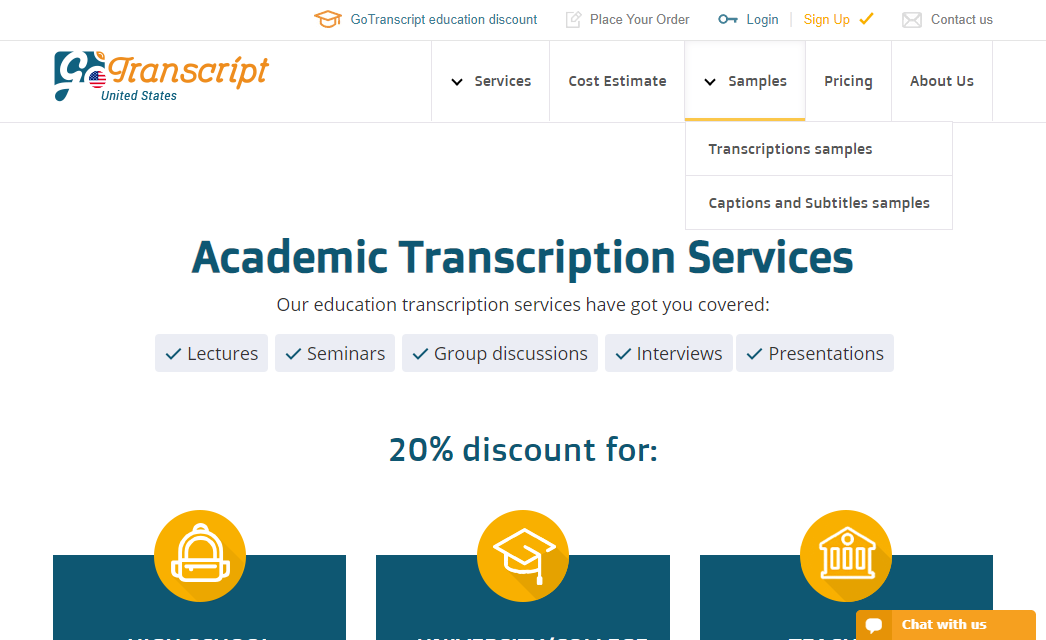

Lack of Specifications
/**

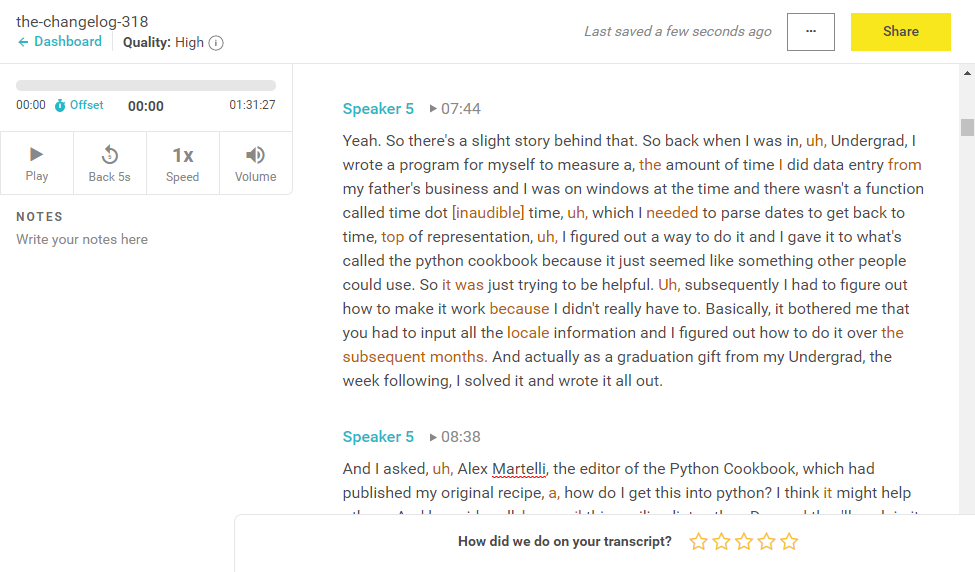

Return the text spoken within the audio file
????
*/
String transcribe(File audioFile);
It's not all new
We routinely build:
- Safe software with unreliable components
- Cyberphysical systems
- Non-ML big data systems, cloud systems
- "Good enough" and "fit for purpose" not "correct"
ML intensifies our challenges
Complexity
Machine Learning in Production
From Models to Systems
Learning goals
- Explain how machine learning fits into the larger picture of building and maintaining production systems
- Explain the consequences of the shift from deductive to inductive reasoning for abstraction and composition
- Explain the modularity implications of having machine-learning components without specifications
- Describe the typical components relating to AI in an AI-enabled system and typical design decisions to be made

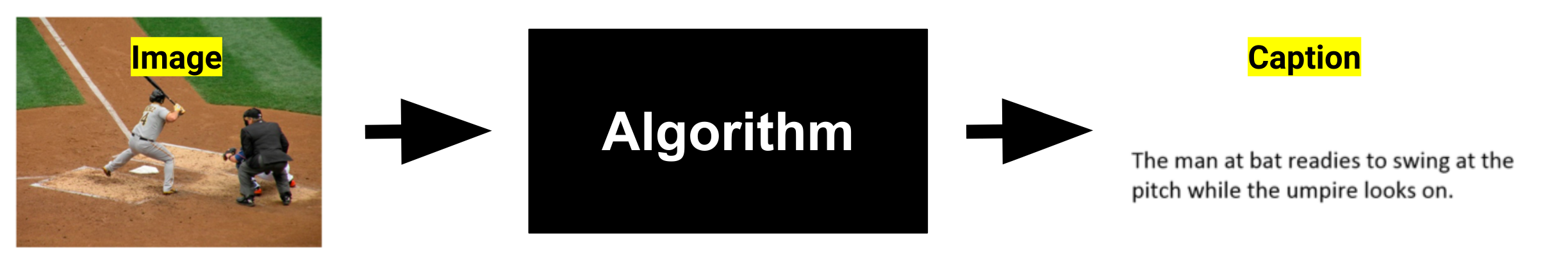

Why do we care about image captioning?

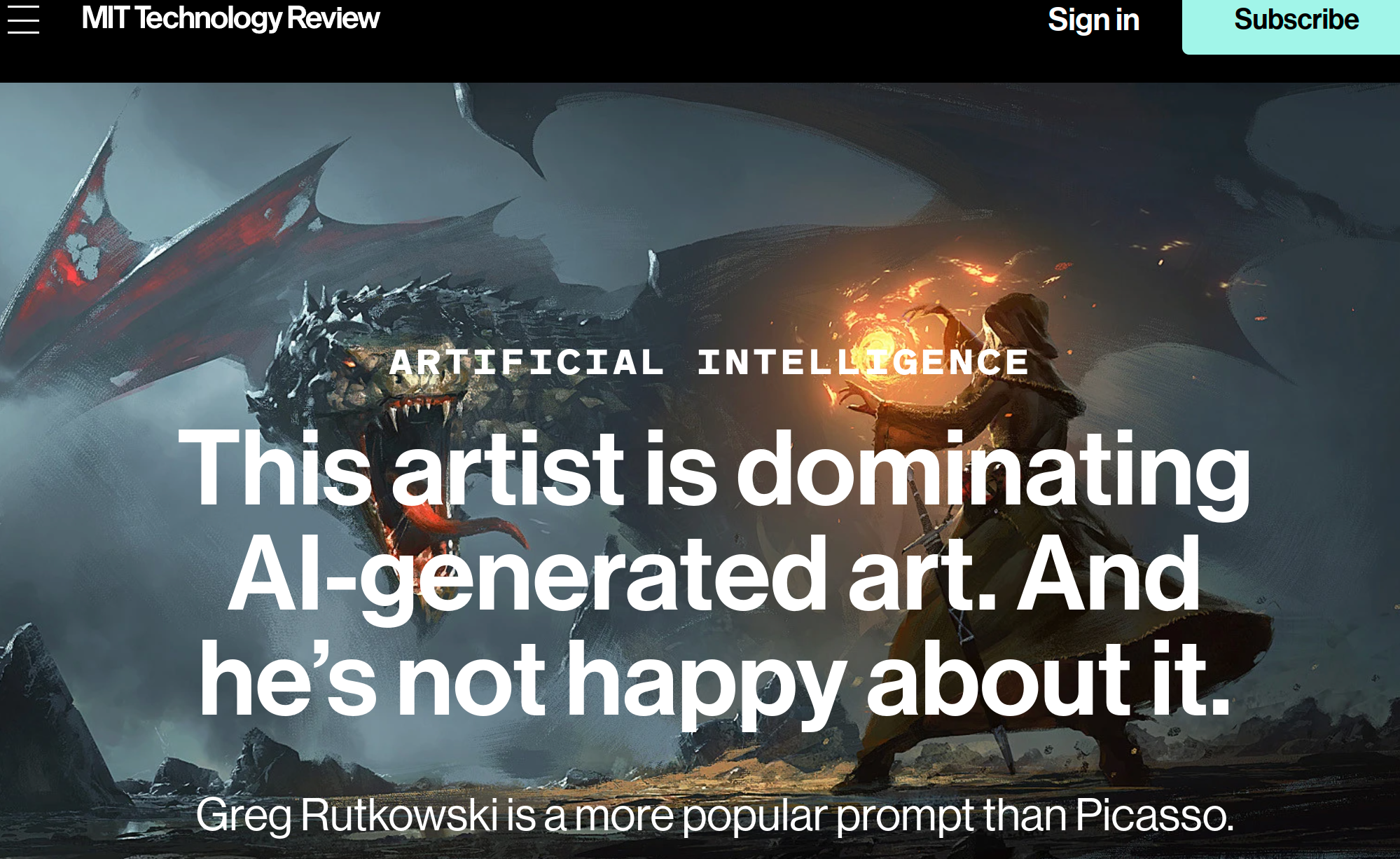

Products using Image Synthesis?
Traditional Model Focus (Data Science)
Focus: building models from given data, evaluating accuracy
Automating Pipelines and MLOps (ML Engineering)
Focus: experimenting, deploying, scaling training and serving, model monitoring and updating
ML-Enabled Systems (ML in Production)
Interaction of ML and non-ML components, system requirements, user interactions, safety, collaboration, delivering products
Model vs System Goals

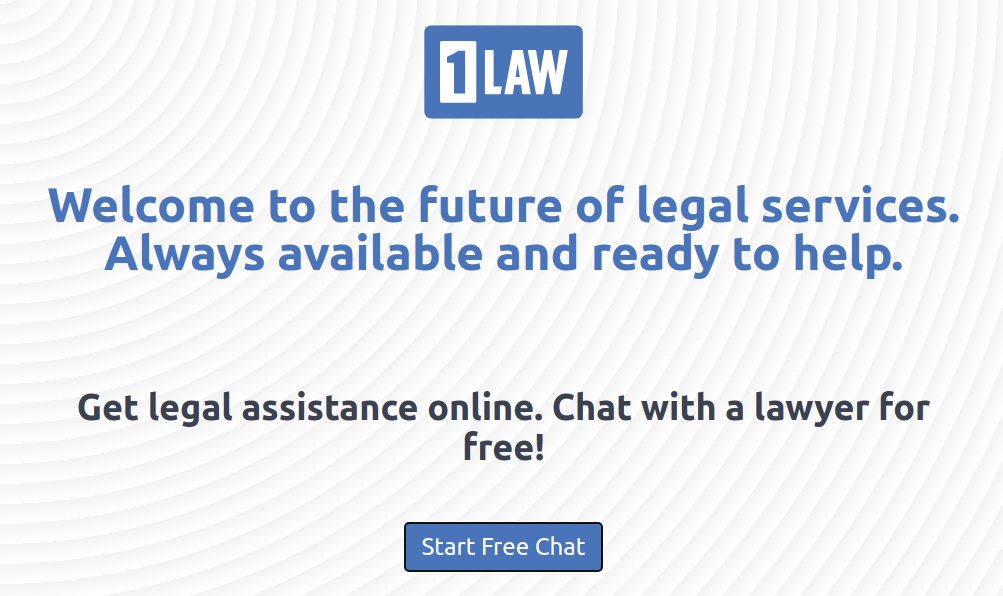

Case Study: Self-help legal chatbot
Based on the excellent paper: Passi, S., & Sengers, P. (2020). Making data science systems work. Big Data & Society, 7(2).
Machine learning that matters
- 2012(!) essay lamenting focus on algorithmic improvements and benchmarks
- focus on standard benchmark sets, not engaging with problem: Iris classification, digit recognition, ...
- focus on abstract metrics, not measuring real-world impact: accuracy, ROC
- distant from real-world concerns
- lack of follow-through, no deployment, no impact
- Failure to reproduce and productionize paper contributions common
- Ignoring design choices in how to collect data, what problem to solve, how to design human-AI interface, measuring impact, ...
- Argues: Should focus on making impact -- requires building systems
Wagstaff, Kiri. "Machine learning that matters." In Proceedings of the 29 th International Conference on Machine Learning, (2012).
Systems Thinking
Feedback Loops

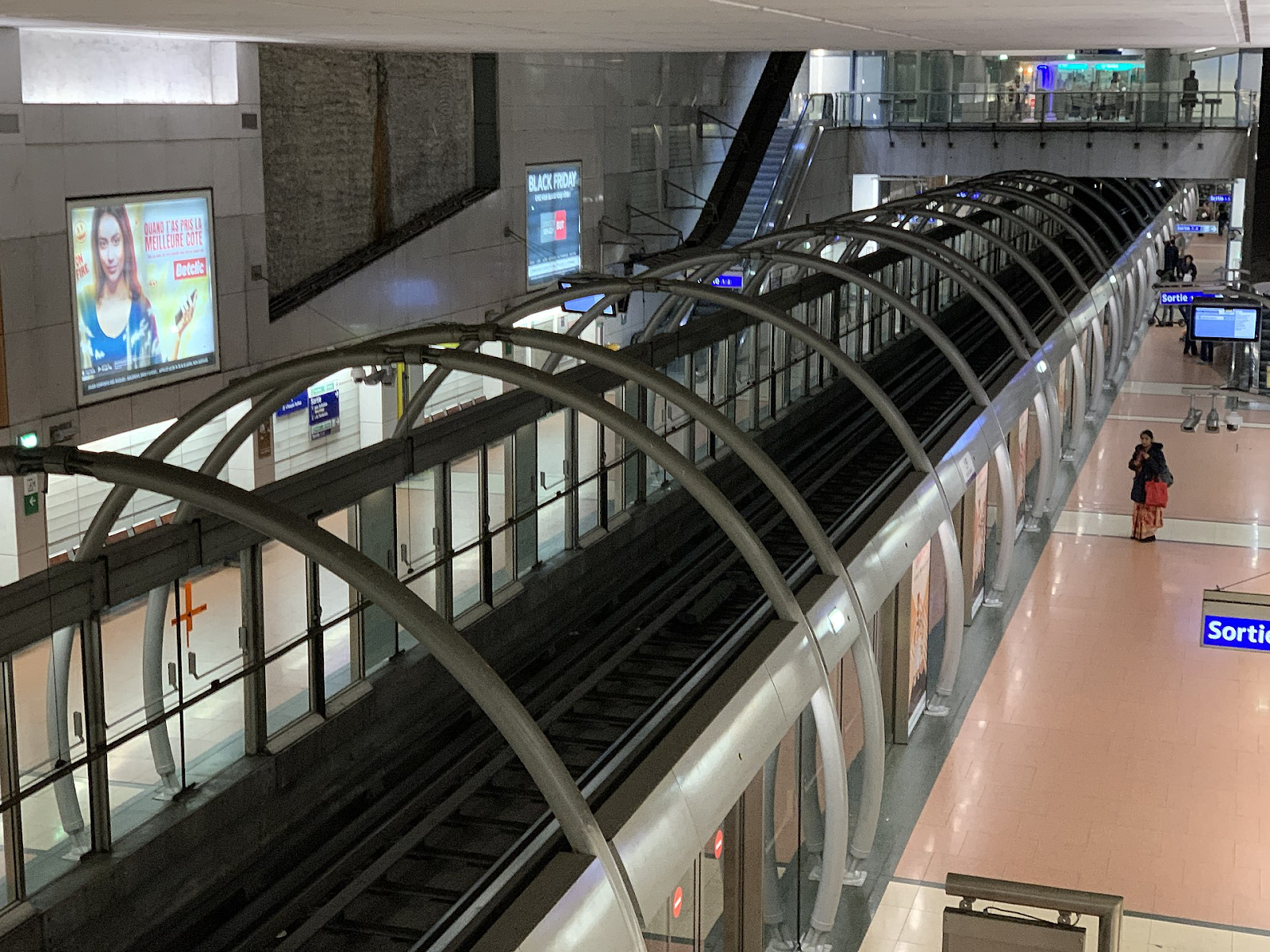

Safety is a System Property
- Code/models are not unsafe, cannot harm people
- Systems can interact with the environment in ways that are unsafe

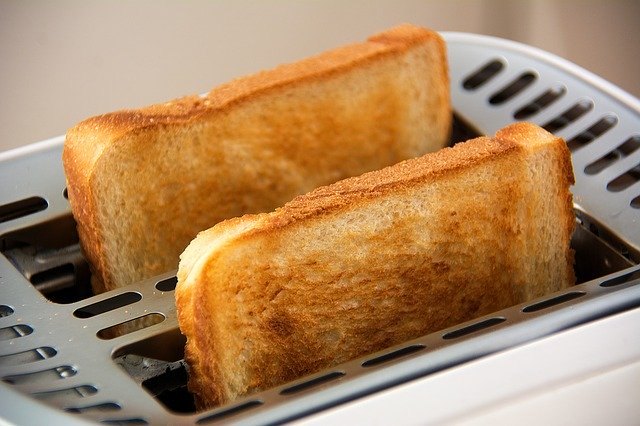

Safety Assurance in/outside the Model
In the model
- Ensure maximum toasting time
- Use heat sensor and past outputs for prediction
- Hard to make guarantees
Outside the model (e.g., "guardrails")
- Simple code check for max toasting time
- Non-ML rule to shut down if too hot

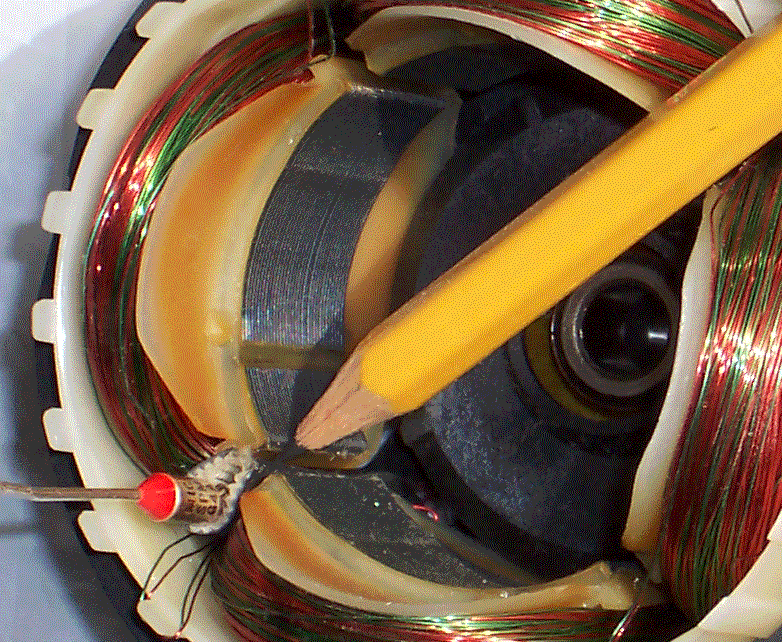

- Hardware solution: thermal fuse
(Image CC BY-SA 4.0, C J Cowie)

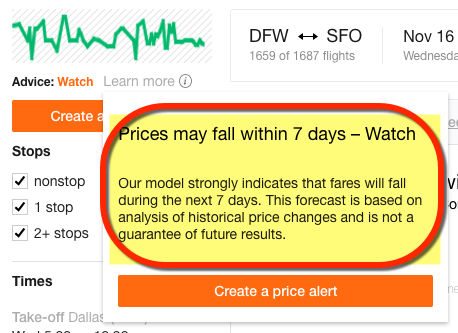

Presenting Intelligence
Automate: Take action on user's behalf
Prompt: Ask the user if an action should be taken
Organize/Annotate/Augment: Add information to a display
Hybrids of these
Breakout Discussion: Experience Design

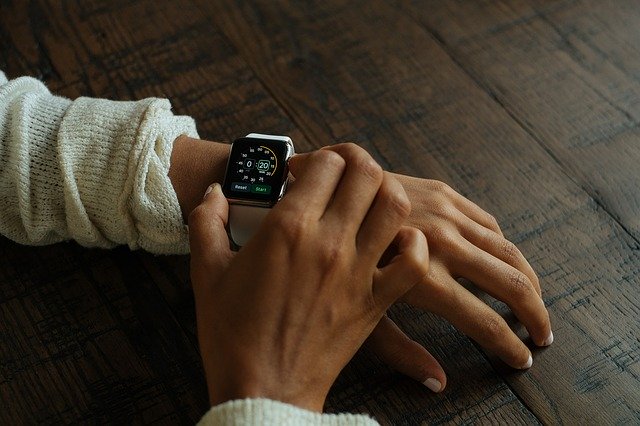

Fall detection for elderly people:

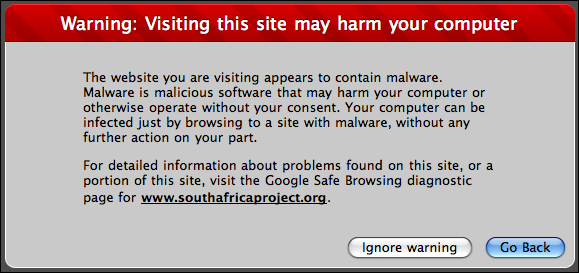

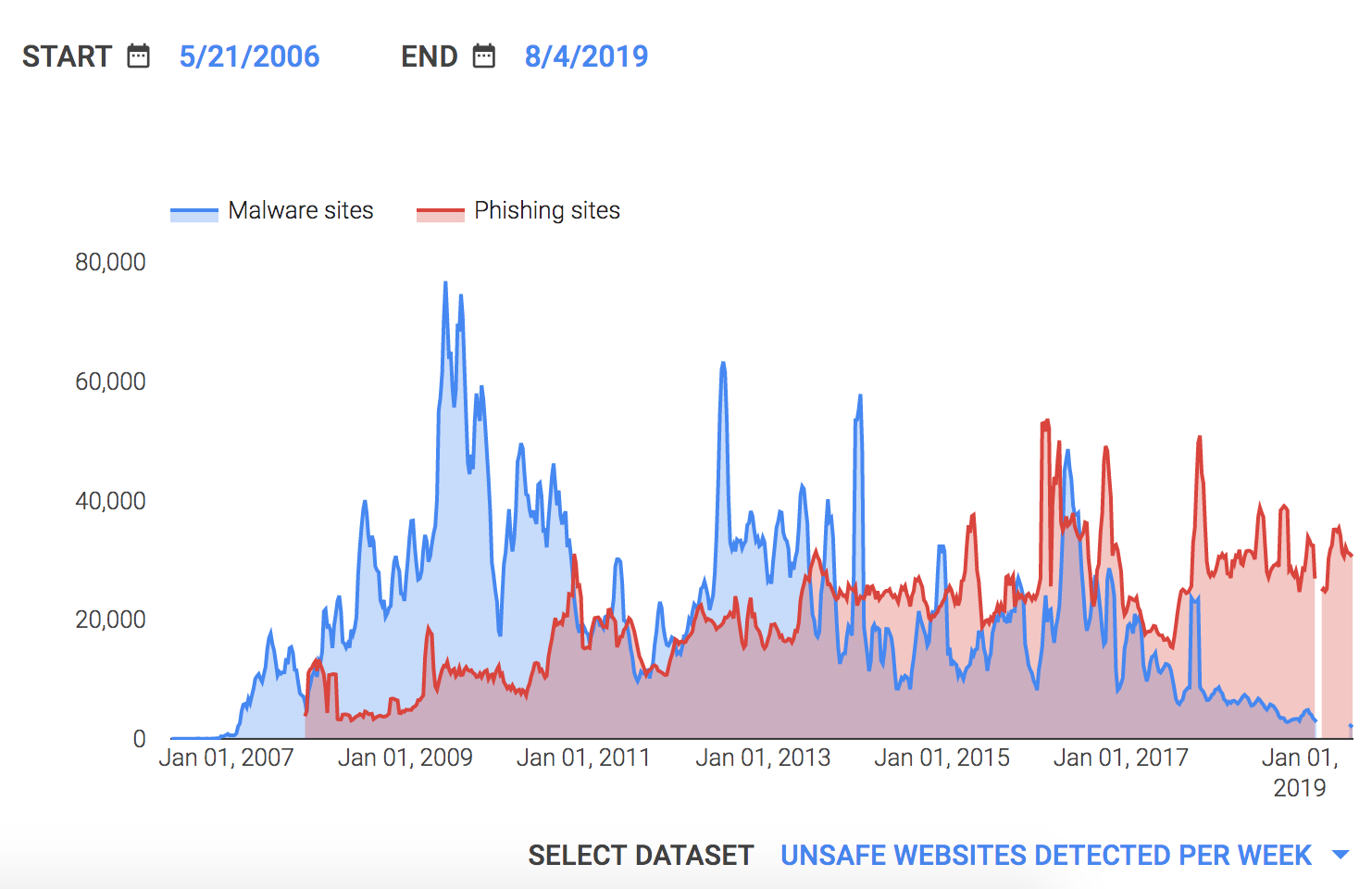

Safe browsing: Blocking malicious web pages
Discuss in group and post to #lecture tagging all members:
(1) How do we present the intelligence to the user?
(2) Justify in terms of system goals, forcefulness, frequency, value of correct and cost of wrong predictions

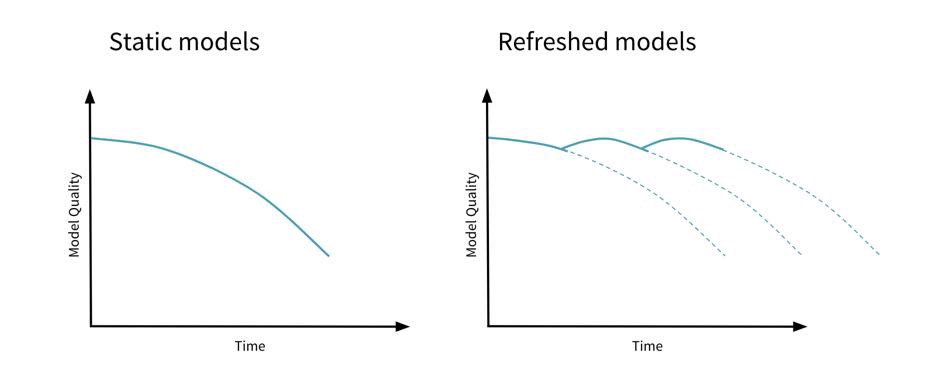

Things change...
Newer better models released (better model architectures, more training data, ...)
Goals and scope change (more domains, handling dialects, ...)
The world changes (new products, names, slang, ...)

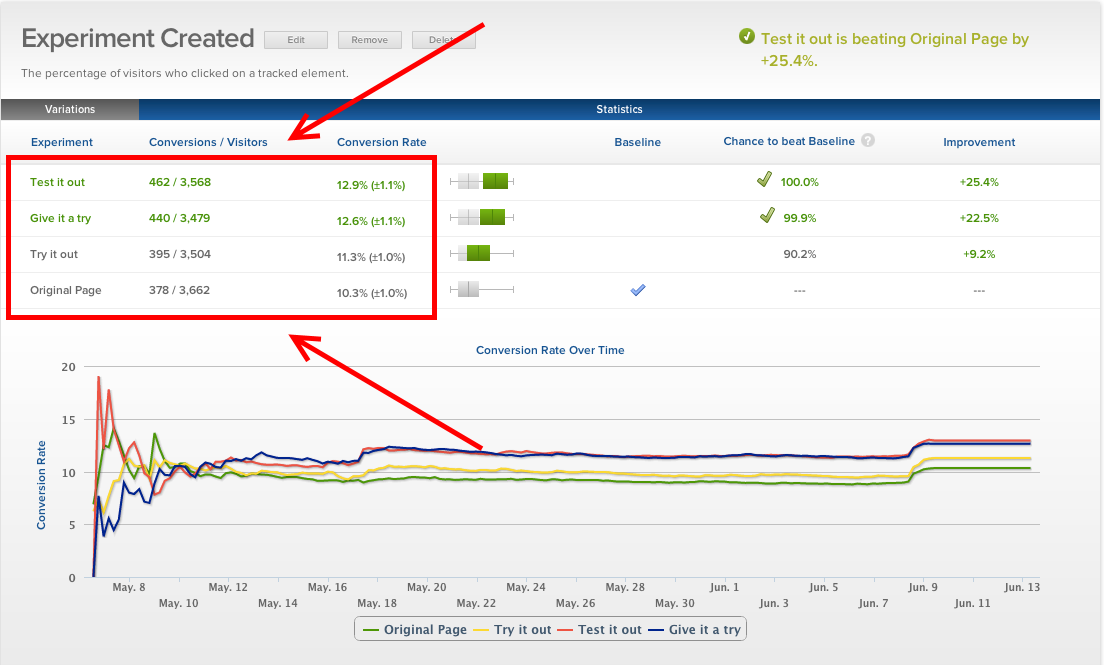

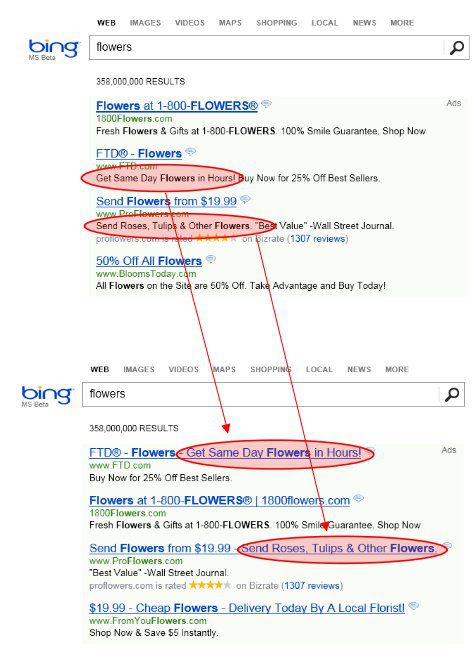

Online experimentation
Monitoring in Production

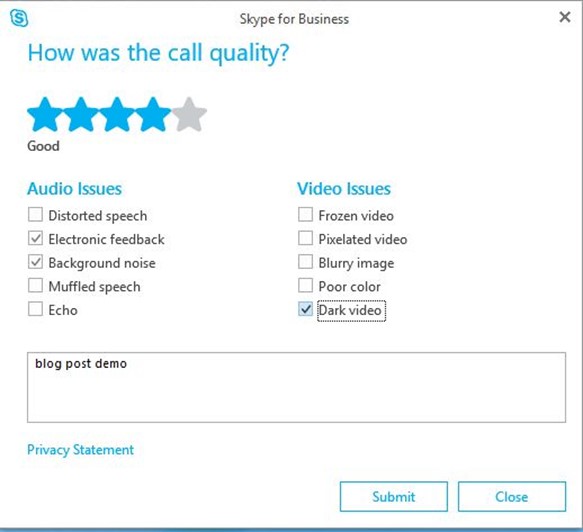

Design for telemetry
Pipelines Thinking is Challenging
In enterprise ML teams:
- Data scientists often focus on modeling in local environment, model-centric workflow
- Rarely robust infrastructure, often monolithic and tangled
- Challenges in deploying systems and integration with monitoring, streams etc
Shifting to pipeline-centric workflow challenging
- Requires writing robust programs, slower, less exploratory
- Standardized, modular infrastructure
- Big conceptual leap, major hurdle to adoption
O'Leary, Katie, and Makoto Uchida. "Common problems with Creating Machine Learning Pipelines from Existing Code." Proc. Third Conference on Machine Learning and Systems (MLSys) (2020).
Machine Learning in Production
Teamwork - A Primer
Who has had bad experiences in teams? Student teams? Teams in industry?
Summary: How would you handle...
- One team member has very little technical experience and is struggling with basic Python scripts and the Unix shell. It is faster for other team members to take over the task rather than helping them.
- You divide the work and but when you try to integrate on the evening before the deadline you learn that one team member has failed to complete their part. They tried the day before, but got stuck with a compatibility problem.
- After last minute stress at the last assignment, you team agrees to start earlier and to integrate at a milestone days before the deadline to leave a buffer. Yet you see little progress from half the team in GitHub and hardly anybody responds in Slack. Little is done at the agreed milestone. The work gets done before the deadline, but with the same stress as in the last assignment.
- This homework is low priority for one team member. They rarely contribute beyond the bare minimum at the last minute. (The rest of the team grudgingly compensates and achieves full points for the assignment. You do not feel comfortable criticizing the student as it may negatively affect their grade.)
Teamwork Policies and Support in this Course
- Teams can set their own priorities and policies -- do what works for you, experiment
- Not everybody will contribute equally to every assignment -- that's okay
- Team members have different strength and weaknesses -- that's good
- We will intervene in team citizenship issues!
Golden rule: Try to do what you agreed to do by the time you agreed to. If you cannot, seek help and communicate clearly and early.
Machine Learning in Production
Model Correctness and Accuracy
Learning Goals
- Select a suitable metric to evaluate prediction accuracy of a model and to compare multiple models
- Select a suitable baseline when evaluating model accuracy
- Know and avoid common pitfalls in evaluating model accuracy
- Explain how software testing differs from measuring prediction accuracy of a model
Model Quality
First Part: Measuring Prediction Accuracy
- the data scientist's perspective
Second Part: What is Correctness Anyway?
- the role and lack of specifications, validation vs verification
Third Part: Learning from Software Testing
- unit testing, test case curation, invariants, simulation (next lecture)
Later: Testing in Production
- monitoring, A/B testing, canary releases (in 2 weeks)
Confusion/Error Matrix
| Actually Grade 5 Cancer | Actually Grade 3 Cancer | Actually Benign | |
|---|---|---|---|
| Model predicts Grade 5 Cancer | 10 | 6 | 2 |
| Model predicts Grade 3 Cancer | 3 | 24 | 10 |
| Model predicts Benign | 5 | 22 | 82 |
accuracy=correct predictionsall predictions
Example's accuracy = 10+24+8210+6+2+3+24+10+5+22+82=.707
def accuracy(model, xs, ys):
count = length(xs)
countCorrect = 0
for i in 1..count:
predicted = model(xs[i])
if predicted == ys[i]:
countCorrect += 1
return countCorrect / count

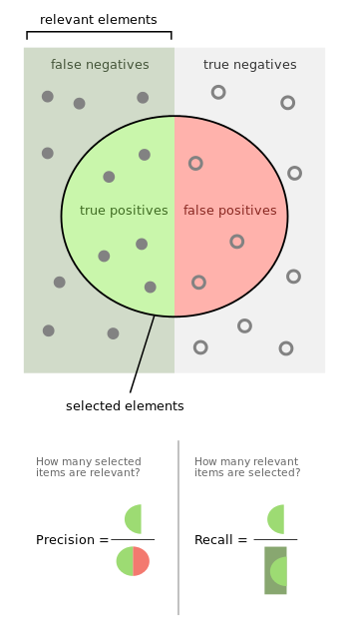

(CC BY-SA 4.0 by Walber)
Area Under the Curve
Turning numeric prediction into classification with threshold ("operating point")
The Legend of the Failed Tank Detector
Production Data -- The Ultimate Unseen Validation Data
more in a later lecture
Common Pitfalls of Evaluating Model Quality?
Test Data not Representative
Often neither training nor test data representative of production data

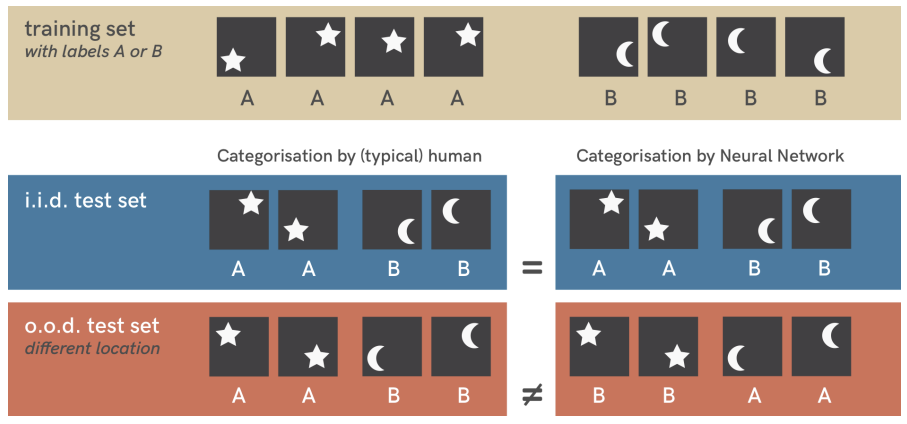

Shortcut Learning
Figure from: Geirhos, Robert, et al. "Shortcut learning in deep neural networks." Nature Machine Intelligence 2, no. 11 (2020): 665-673.
Data Leakage during Data Preprocessing
wordsVectorizer = CountVectorizer().fit(text)
wordsVector = wordsVectorizer.transform(text)
invTransformer = TfidfTransformer().fit(wordsVector)
invFreqOfWords = invTransformer.transform(wordsVector)
X = pd.DataFrame(invFreqOfWords.toarray())
train, test, spamLabelTrain, spamLabelTest =
train_test_split(X, y, test_size = 0.5)
predictAndReport(train = train, test = test)
Independence of Data: Temporal
Independence of Data: Related Datapoints
Example: Kaggle competition on detecting distracted drivers
Relation of datapoints may not be in the data (e.g., driver)
Part 2:
What is Correctness Anyway?
specifications, bugs, fit
SE World: Evaluating a Component's Functional Correctness
Given a specification, do outputs match inputs?
/**
* compute deductions based on provided adjusted
* gross income and expenses in customer data.
*
* see tax code 26 U.S. Code A.1.B, PART VI
*/
float computeDeductions(float agi, Expenses expenses);
Each mismatch is considered a bug, should to be fixed.†

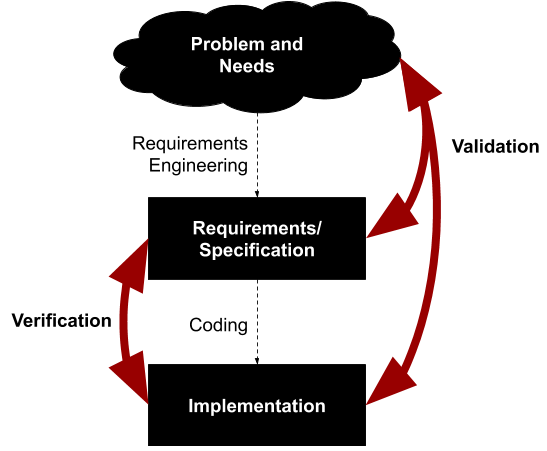

Validation vs Verification
No specification!
Use ML precisely because no specifications (too complex, rules unknown)
- No specification that could tell us for any input whether the output is correct
- Intuitions, ideas, goals, examples, "implicit specifications", but nothing we can write down as rules!
- We are usually okay with some wrong predictions
Testing a Machine Learning Model?

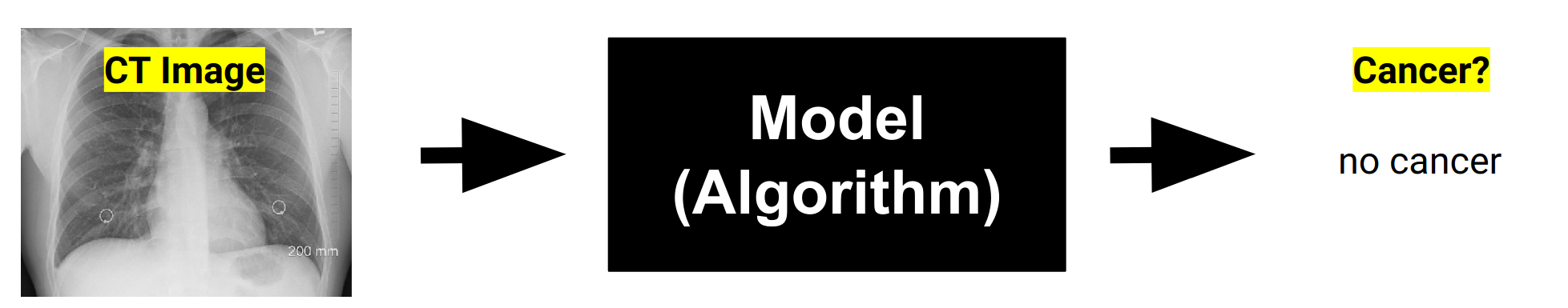

// detects cancer in an image
boolean hasCancer(Image scan);
@Test
void testPatient1() {
assertEquals(loadImage("patient1.jpg"), false);
}
@Test
void testPatient2() {
assertEquals(loadImage("patient2.jpg"), false);
}
All Models Are Wrong
All models are approximations. Assumptions, whether implied or clearly stated, are never exactly true. All models are wrong, but some models are useful. So the question you need to ask is not "Is the model true?" (it never is) but "Is the model good enough for this particular application?" -- George Box

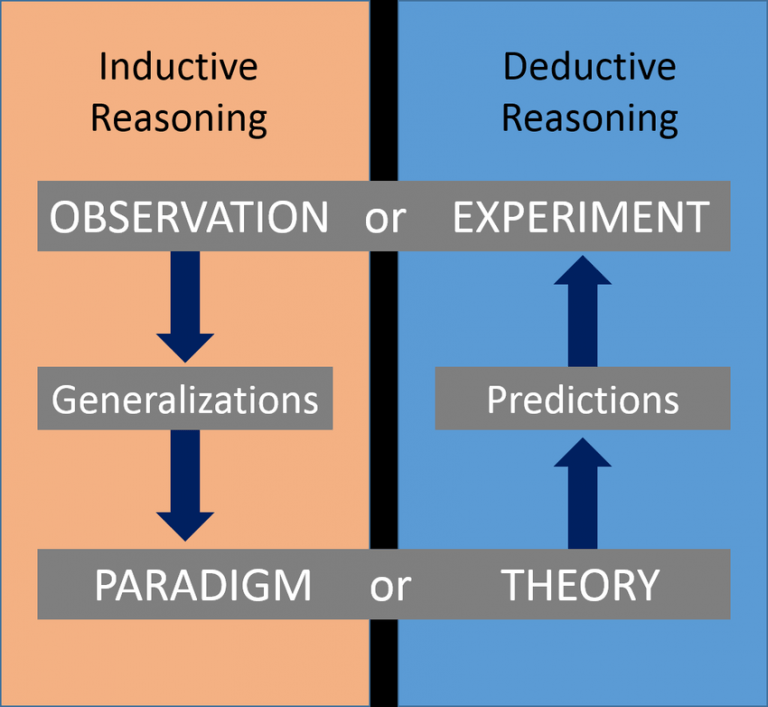

Deductive vs Inductive Reasoning
(Daniel Miessler, CC SA 2.0)
Machine Learning Models Fit, or Not
- A model is learned from given data in given procedure
- The learning process is typically not a correctness concern
- The model itself is generated, typically no implementation issues
- Is the data representative? Sufficient? High quality?
- Does the model "learn" meaningful concepts?
- Is the model useful for a problem? Does it fit?
- Do model predictions usually fit the users' expectations?
- Is the model consistent with other requirements? (e.g., fairness, robustness)
Machine Learning in Production
Model Testing beyond Accuracy
(Slicing, Capabilities, Invariants, Simulation, ...)
Learning Goals
- Curate validation datasets for assessing model quality, covering subpopulations and capabilities as needed
- Explain the oracle problem and how it challenges testing of software and models
- Use invariants to check partial model properties with automated testing
- Select and deploy automated infrastructure to evaluate and monitor model quality

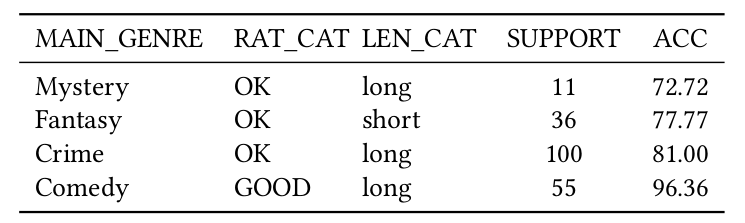

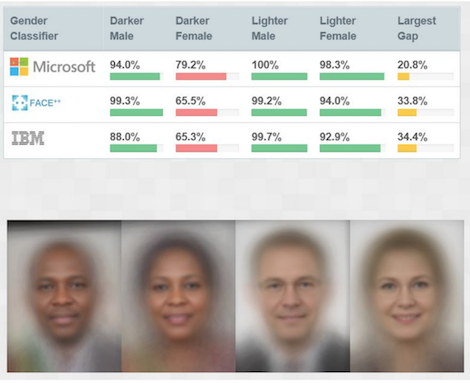

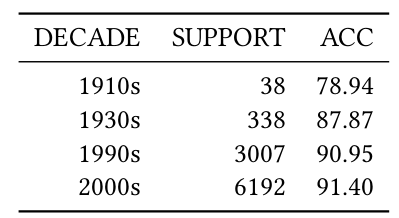

Curating Validation Data & Input Slicing
Software Test Case Design
Opportunistic/exploratory testing: Add some unit tests, without much planning
Specification-based testing ("black box"): Derive test cases from specifications
- Boundary value analysis
- Equivalence classes
- Combinatorial testing
- Random testing
Structural testing ("white box"): Derive test cases to cover implementation paths
- Line coverage, branch coverage
- Control-flow, data-flow testing, MCDC, ...
Test execution usually automated, but can be manual too; automated generation from specifications or code possible

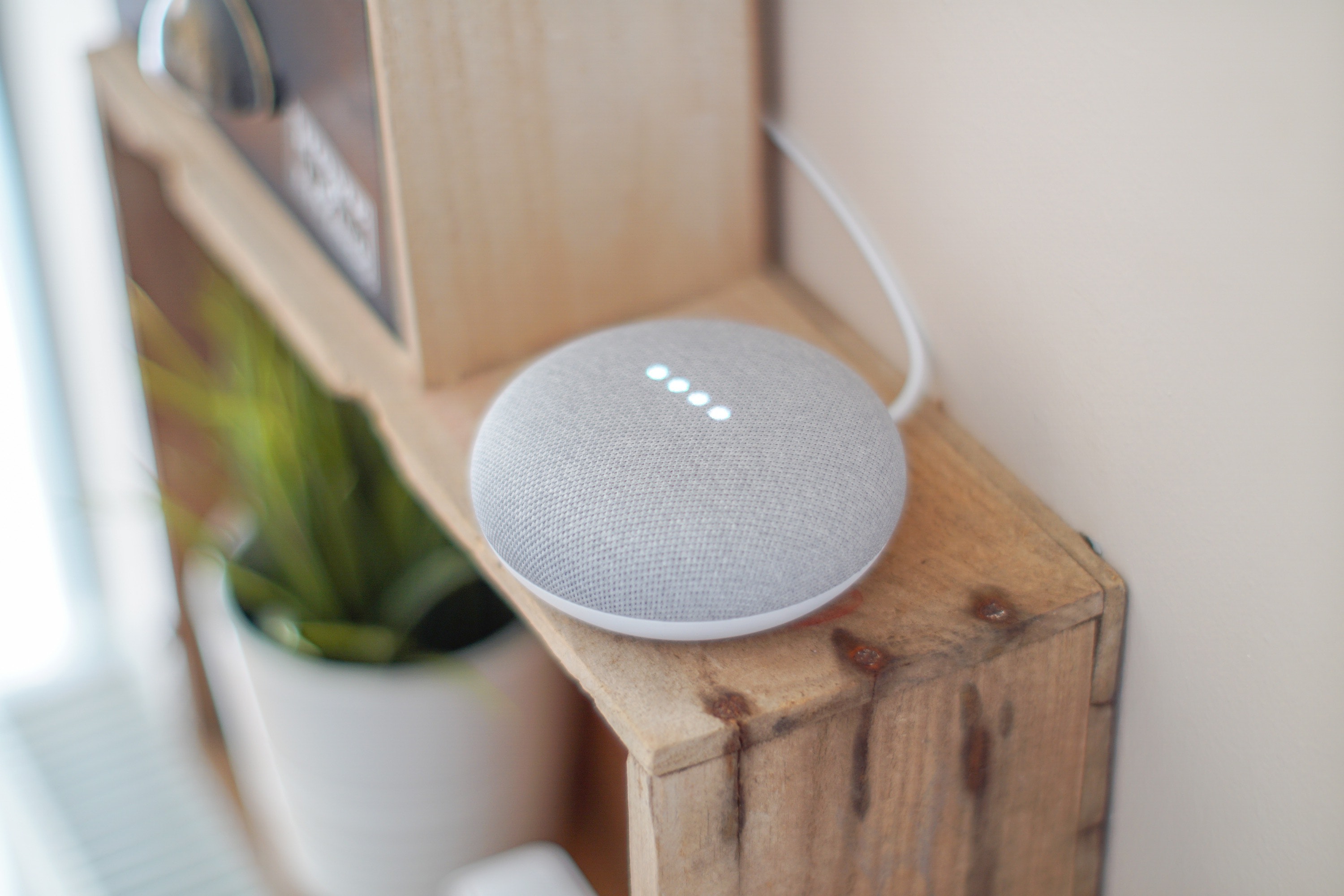

Not All Inputs are Equal
"Call mom" "What's the weather tomorrow?" "Add asafetida to my shopping list"
Input Partitioning Example
Input divided by movie age. Notice low accuracy, but also low support (i.e., little validation data), for old movies.
Input divided by genre, rating, and length. Accuracy differs, but also amount of test data used ("support") differs, highlighting low confidence areas.
Source: Barash, Guy, et al. "Bridging the gap between ML solutions and their business requirements using feature interactions." In Proc. FSE, 2019.

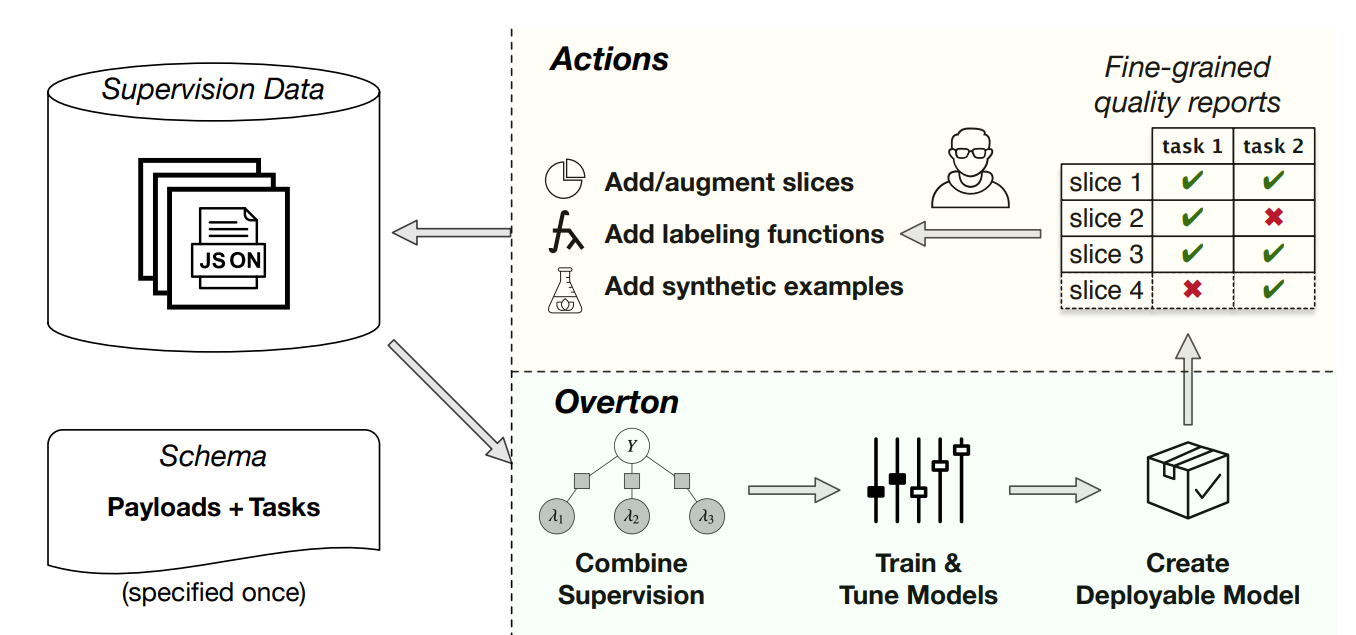

Example: Model Impr. at Apple (Overton)
Ré, Christopher, Feng Niu, Pallavi Gudipati, and Charles Srisuwananukorn. "Overton: A Data System for Monitoring and Improving Machine-Learned Products." arXiv preprint arXiv:1909.05372 (2019).
Testing Model Capabilities
Further reading: Christian Kaestner. Rediscovering Unit Testing: Testing Capabilities of ML Models. Toward Data Science, 2021.

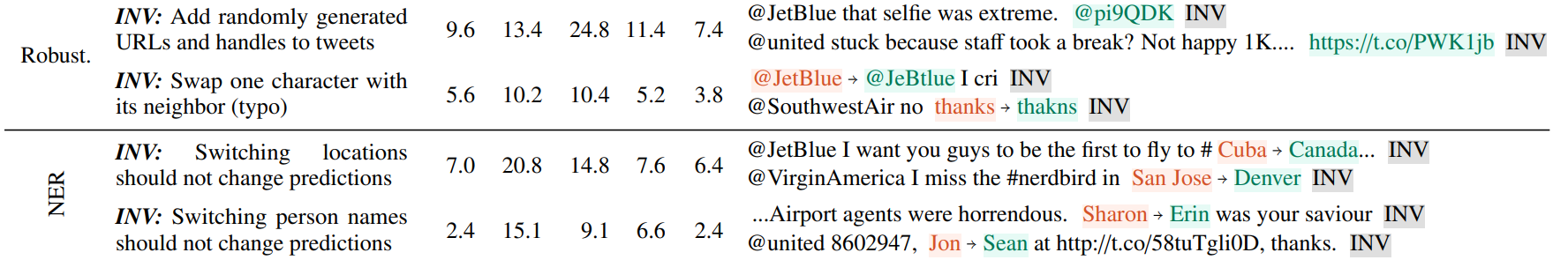

Testing Capabilities
From: Ribeiro, Marco Tulio, Tongshuang Wu, Carlos Guestrin, and Sameer Singh. "Beyond Accuracy: Behavioral Testing of NLP Models with CheckList." In Proceedings ACL, p. 4902–4912. (2020).
Generating Test Data for Capabilities
Idea 1: Domain-specific generators
Testing negation in sentiment analysis with template:
I {NEGATION} {POS_VERB} the {THING}.
Testing texture vs shape priority with artificial generated images:
Figure from Geirhos, Robert, Patricia Rubisch, Claudio Michaelis, Matthias Bethge, Felix A. Wichmann, and Wieland Brendel. “ImageNet-trained CNNs are biased towards texture; increasing shape bias improves accuracy and robustness.” In Proc. International Conference on Learning Representations (ICLR), (2019).
Generating Test Data for Capabilities
Idea 3: Crowd-sourcing test creation

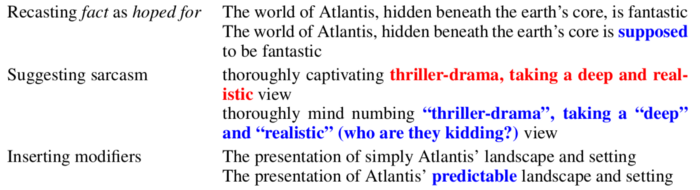

Testing sarcasm in sentiment analysis: Ask humans to minimally change text to flip sentiment with sarcasm
Testing background in object detection: Ask humans to take pictures of specific objects with unusual backgrounds
Figure from: Kaushik, Divyansh, Eduard Hovy, and Zachary C. Lipton. “Learning the difference that makes a difference with counterfactually-augmented data.” In Proc. International Conference on Learning Representations (ICLR), (2020).
Automated (Random) Testing and Invariants
(if it wasn't for that darn oracle problem)
Cancer in Random Image?
The Oracle Problem
How do we know the expected output of a test?
assertEquals(??, factorPrime(15485863));
Examples of Invariants
- Credit rating should not depend on gender:
- ∀x.f(x[gender←male])=f(x[gender←female])
- Synonyms should not change the sentiment of text:
- ∀x.f(x)=f(replace(x,"is not", "isn't"))
- Negation should swap meaning:
- ∀x∈"X is Y".f(x)=1−f(replace(x," is ", " is not "))
- Robustness around training data:
- ∀x∈training data.∀y∈mutate(x,δ).f(x)=f(y)
- Low credit scores should never get a loan (sufficient conditions for classification, "anchors"):
- ∀x.x.score<649⇒¬f(x)
Identifying invariants requires domain knowledge of the problem!
Simulation-Based Testing
One More Thing: Simulation-Based Testing
- Derive input-output pairs from simulation, esp. in vision systems
- Example: Vision for self-driving cars:
- Render scene -> add noise -> recognize -> compare recognized result with simulator state
- Quality depends on quality of simulator:
- examples: render picture/video, synthesize speech, ...
- Less suitable where input-output relationship unknown, e.g., cancer prognosis, housing price prediction
Further readings: Zhang, Mengshi, Yuqun Zhang, Lingming Zhang, Cong Liu, and Sarfraz Khurshid. "DeepRoad: GAN-based metamorphic testing and input validation framework for autonomous driving systems." In Proc. ASE. 2018.

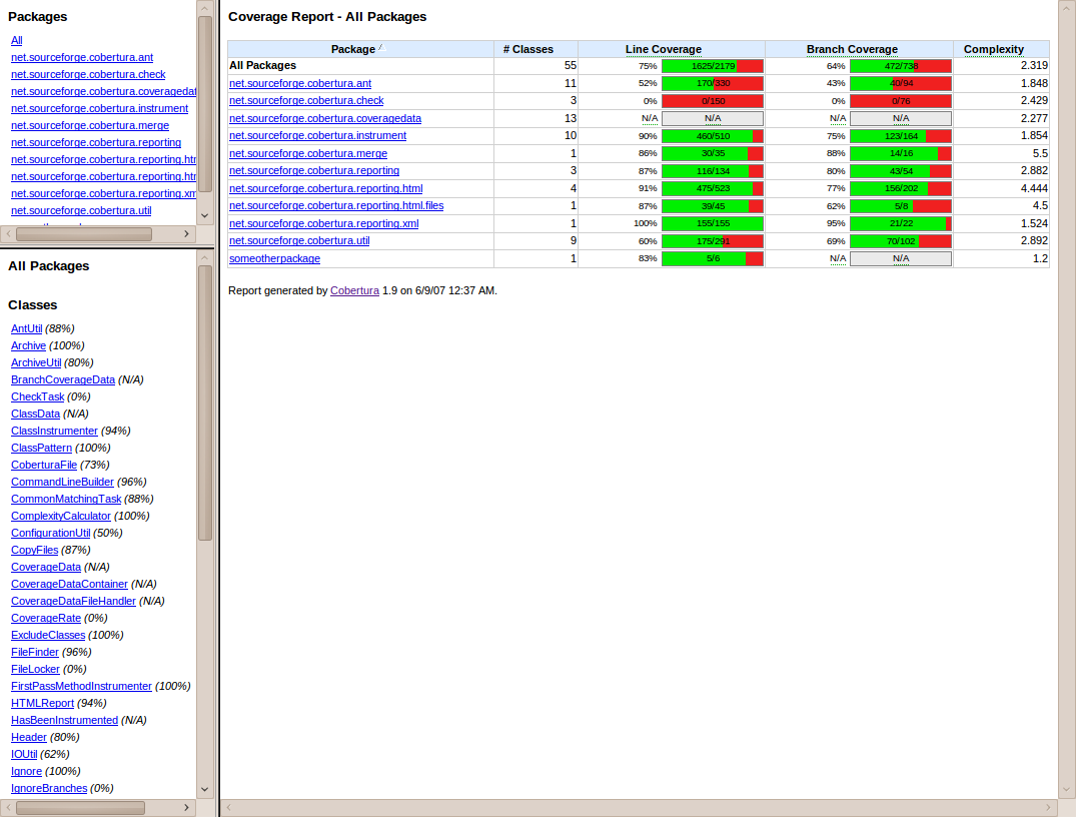

Test Coverage

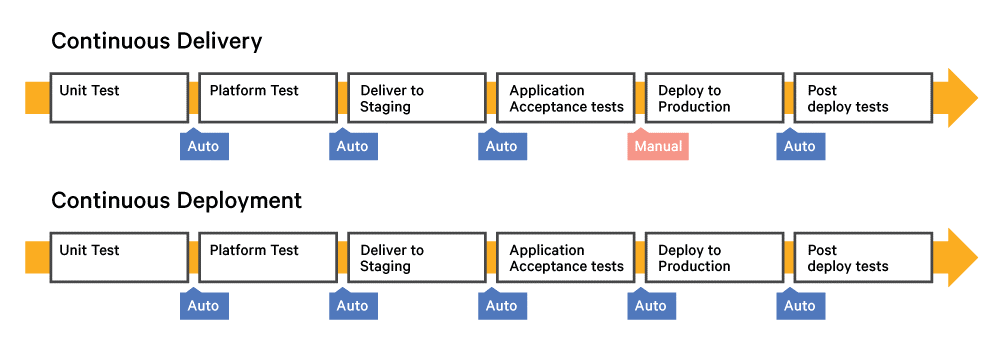

Continuous Integration for Model Quality
Project Milestone 1: Modeling and First Deployment
Machine Learning in Production
Goals and Measurement
Exploring Requirements...
Learning goals
- Judge when to apply ML for a problem in a system
- Define system goals and map them to goals for ML components
- Understand the key concepts and risks of measurement

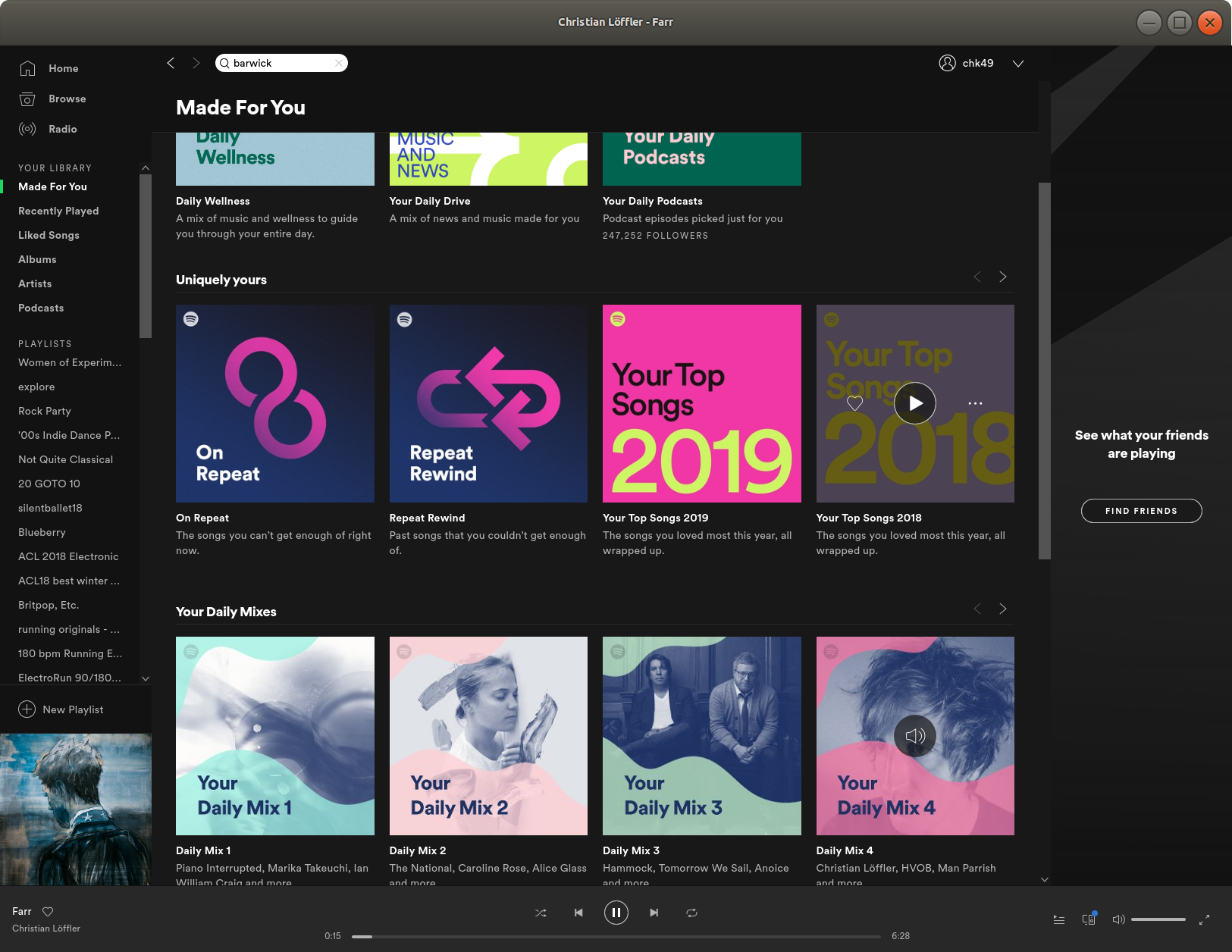

Today's Case Study: Spotify Personalized Playlists
When to use Machine Learning
Big problems: Many inputs, massive scale
Open-ended problems: No single "final" solution; incremental improvements and growth over time
Time-changing problems: Adapting to constant changes, learning with users
Intrinsically hard problems: Unclear rules, heuristics perform poorly
Examples?
see Hulten, Chapter 2
AI as Prediction Machines
AI: Higher accuracy predictions at much lower cost
May use new, cheaper predictions for traditional tasks (examples?)
May now use predictions for new kinds of problems (examples?)
May now use more predictions than before
(Analogies: Reduced cost of light; internet reduced cost of search)
Layers of Success Measures
- Organizational objectives: Innate/overall goals of the organization
- Leading indicators: Measures correlating with future success, from the business perspective
- System goals: Goals of the software system/feature to be built
- User outcomes: How well the system is serving its users, from the user's perspective
- Model properties: Quality of the model used in a system, from the model's perspective
Ideally, these goals should be aligned with each other
Breakout: Automating Admission Decisions
What are different types of goals behind automating admissions decisions to a Master's program?
As a group post answer to #lecture tagging all group members using template:
Organizational goals: ...
Leading indicators: ...
System goals: ...
User goals: ...
Model goals: ...
Everything is Measurable
- If X is something we care about, then X, by definition, must be
detectable.
- How could we care about things like “quality,” “risk,” “security,” or “public image” if these things were totally undetectable, directly or indirectly?
- If we have reason to care about some unknown quantity, it is because we think it corresponds to desirable or undesirable results in some way.
- If X is detectable, then it must be detectable in some amount.
- If you can observe a thing at all, you can observe more of it or less of it
- If we can observe it in some amount, then it must be measurable.
But: Not every measure is precise, not every measure is cost effective
Douglas Hubbard, “How to Measure Anything: finding the value of intangibles in business" 2014
Composing/Decomposing Measures
Often higher-level measures are composed from lower level measures
Clear trace from specific low-level measurements to high-level metric
For design strategy, see Goal-Question-Metric approach
Stating Measures Precisely
- Always be precise about metrics
- "measure accuracy" -> "evaluate accuracy with MAPE"
- "evaluate test quality" -> "measure branch coverage with Jacoco"
- "measure execution time" -> "average and 90%-quantile response time for REST-API x under normal load"
- "assess developer skills" -> "measure average lines of code produced per day and number of bugs reported on code produced by that developer"
- "measure customer happiness" -> "report response rate and average customer rating on survey shown to 2% of all customers (randomly selected)"
- Ideally: An independent party should be able to independently set up infrastructure to measure outcomes
Measuring
Three ingredients:
- Measure: What do we try to capture?
- Data collection: What data is collected and how?
- Operationalization: How is the measure computed from the data?
Streetlight effect
- A type of observational bias
- People tend to look for something where it’s easiest to do so
- Use cheap proxy metrics that only poorly correlate with goal
- e.g., number of daily active users as a measure of projected revenue
Machine Learning in Production
Gathering Requirements
Learning Goals
- Understand the role of requirements in ML-based systems and their failures
- Understand the distinction between the world and the machine
- Understand the importance of environmental assumptions in establishing system requirements

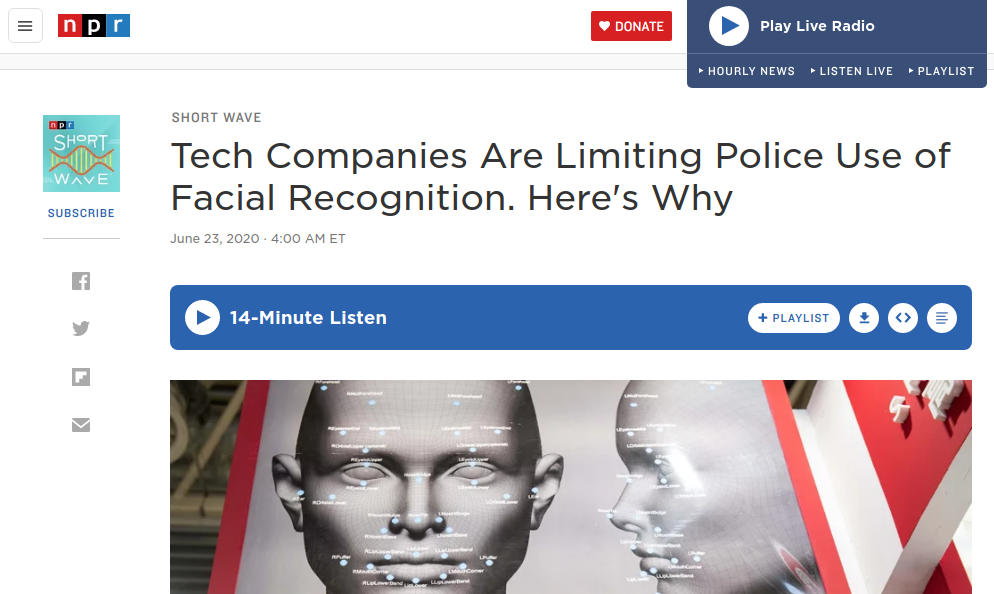

Facial Recognition in ATM
Q. What went wrong? What is the root cause of the failure?

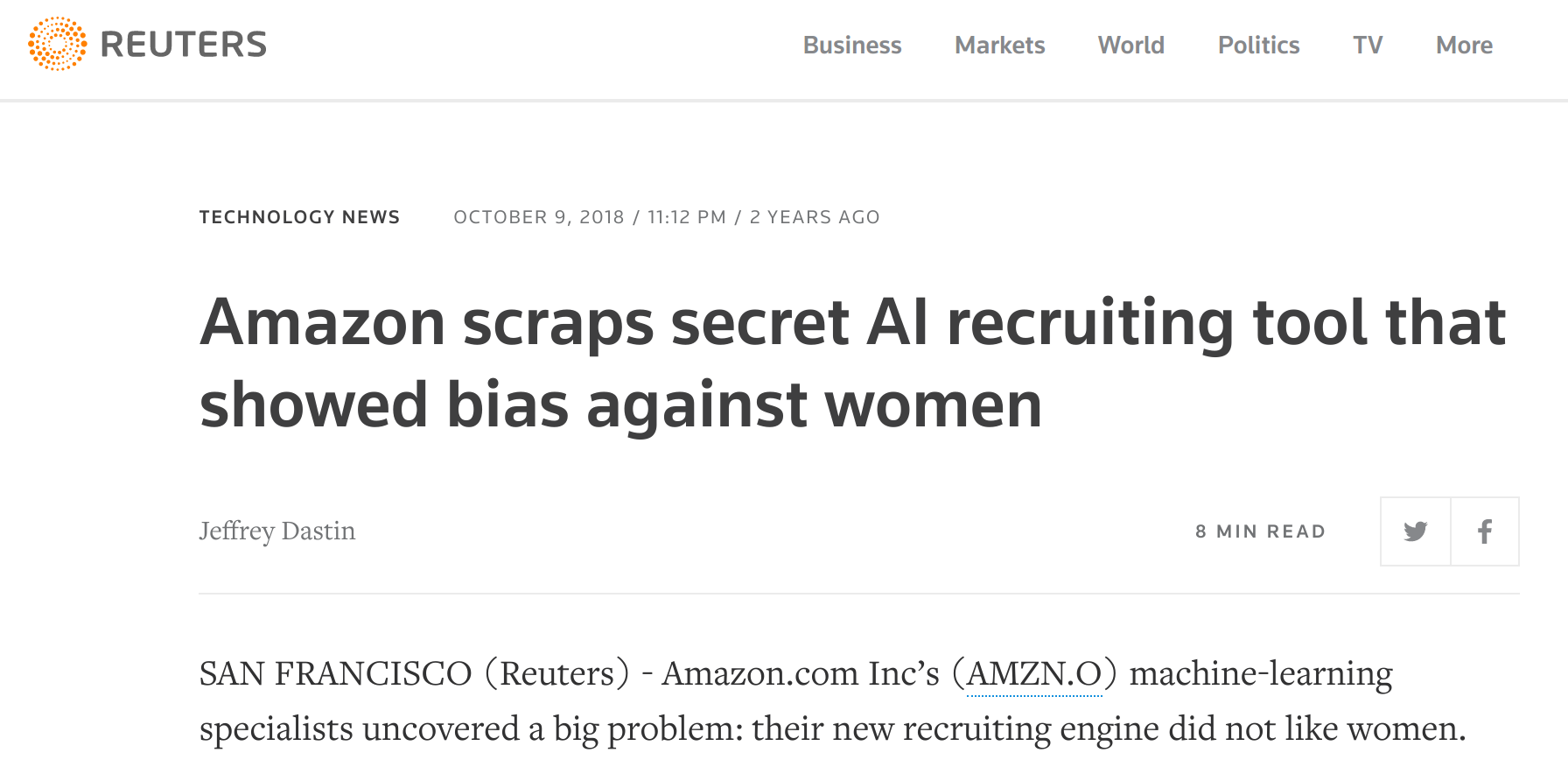

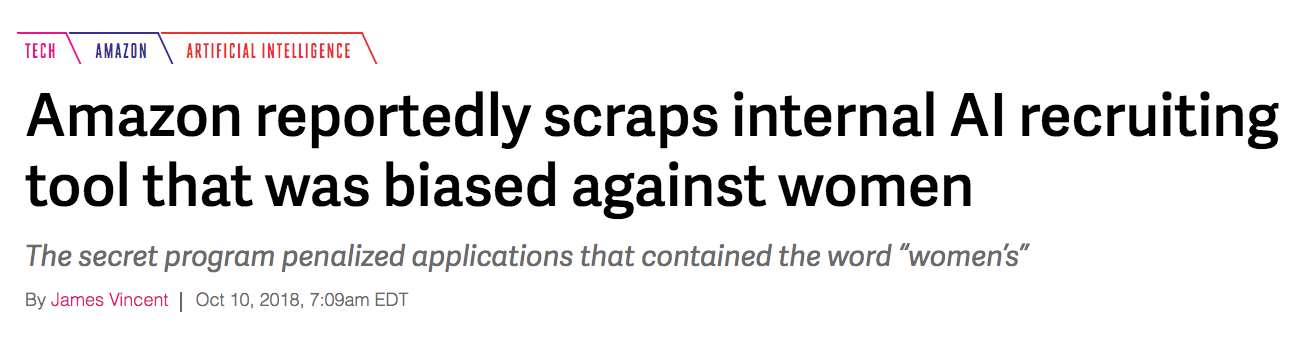

Automated Hiring
Q. What went wrong? What is the root cause of the failure?

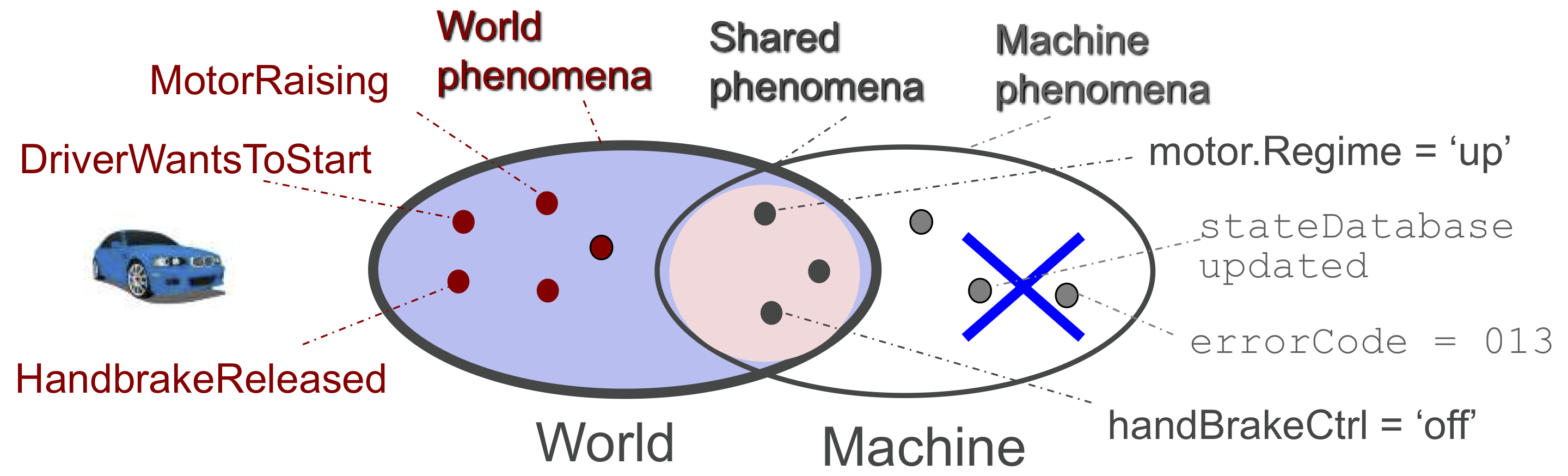

Machine vs World
Shared Phenomena
- Shared phenomena: Interface between the environment & software
- Input: Lidar, camera, pressure sensors, GPS
- Output: Signals generated & sent to the engine or brake control
- Software can influence the environment only through the shared interface
- Unshared parts of the environment are beyond software’s control
- We can only assume how these parts will behave
Breakout: Lane Assist Assumptions
REQ: The vehicle must be prevented from veering off the lane.
SPEC: Lane detector accurately identifies lane markings in the input image; the controller generates correct steering commands
Discuss with your neighbor to come up with 2-3 assumptions

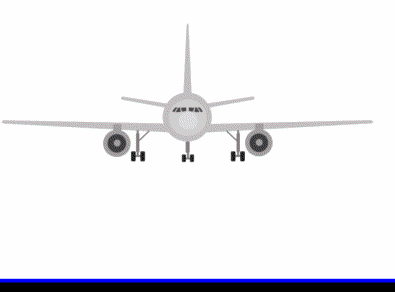

Lufthansa 2904 Runaway Crash
CC BY-SA 3.0 Anynobody
Breakout Session: Fall detection
As a group, post answer to #lecture and tag group members:
Requirement: ...
Assumptions: ...
Specification: ...
What can go wrong: ...
What went wrong? (REQ, ASM, SPEC)?
Understanding requirements is hard
- Customers don't know what they want until they see it
- Customers change their mind ("no, not like that")
- Descriptions are vague
- It is easy to ignore important requirements (privacy, fairness)
- Focused too narrowly on needs of few users
- Engineers think they already know the requirements
- Engineers are overly influenced by technical capability
- Engineers prefer elegant abstractions
Examples?
See also 🗎 Jackson, Michael. "The world and the machine." In Proceedings of the International Conference on Software Engineering. IEEE, 1995.
Requirements elicitation techniques
ML Prototyping: Wizard of Oz
Personas in GenderMag
See examples and details http://gendermag.org/foundations.php
How much requirements eng. and when?
Homework I2: Requirements

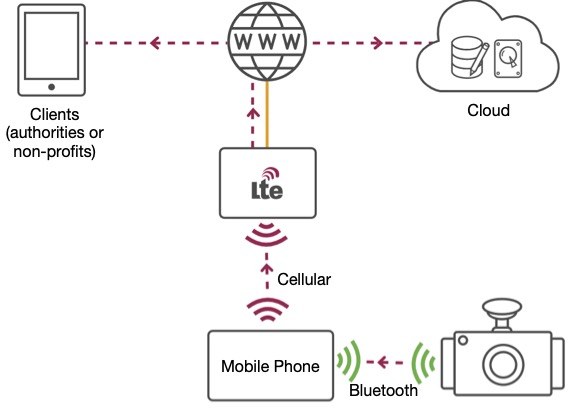

Dashcam system
Machine Learning in Production
Planning for Mistakes
Learning goals:
- Consider ML models as unreliable components

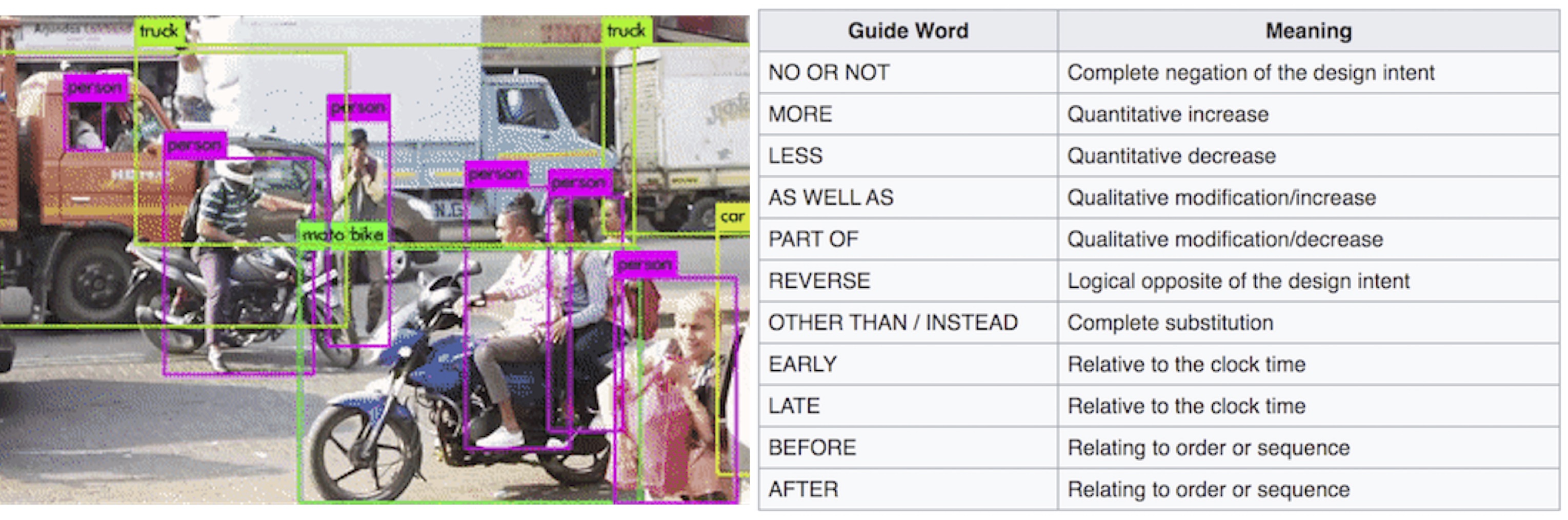

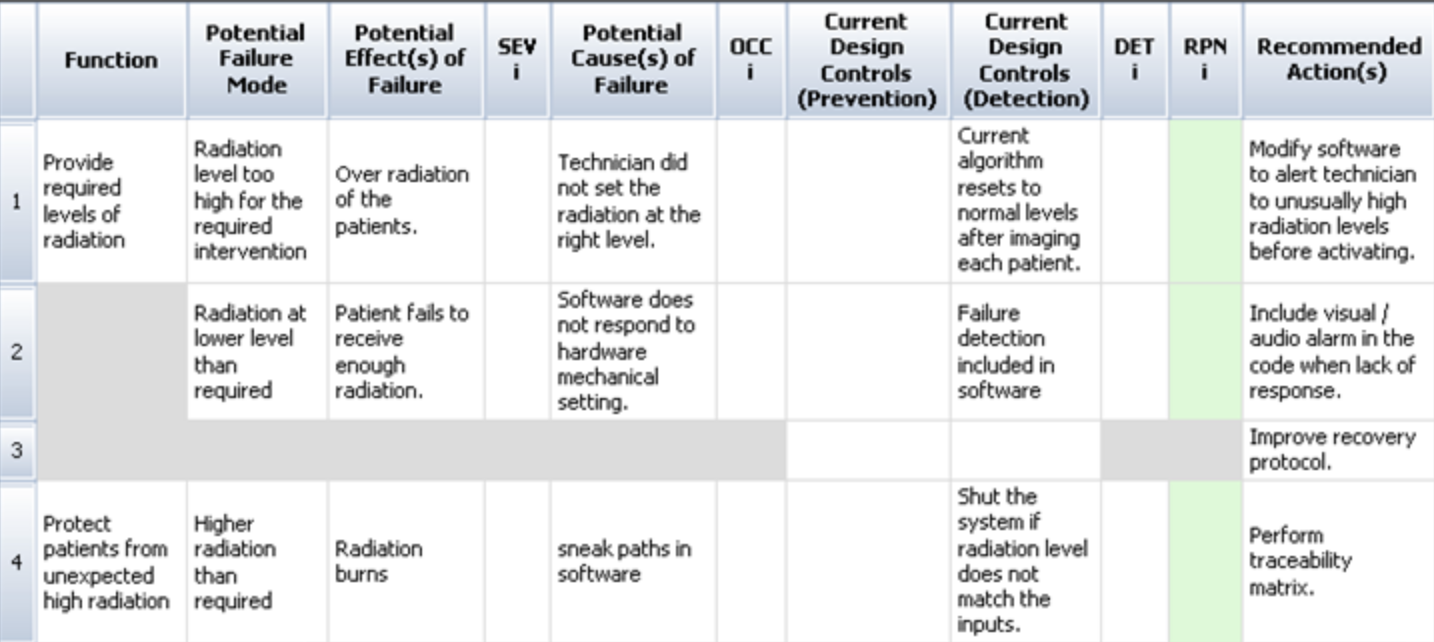

- Use safety engineering techniques FTA, FMEA, and HAZOP to anticipate and analyze possible mistakes
- Design strategies for mitigating the risks of failures due to ML mistakes
Models make mistakes
Common excuse: Nobody could have foreseen this...
What responsibility do designers have to anticipate problems?
Confounding Variables
Reverse Causality
Reasons barely matter
No model is every "correct"
Some mistakes are unavoidable
Anticipate the eventual mistake
- Make the system safe despite mistakes
- Consider the rest of the system (software + environment)
- Example: Thermal fuse in smart toaster
ML model = unreliable component
Bollards mitigate mistakes
Today's Running Example: Autonomous Train
- REQ: The train shall not collide with obstacles
- REQ: The train shall not depart until all doors are closed
- REQ: The train shall not trap people between the doors
- ...
Human in the Loop - Examples

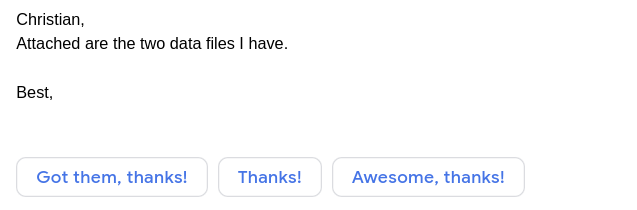

- Email response suggestions
- Fall detection smartwatch
- Safe browsing
Undoable actions - Examples

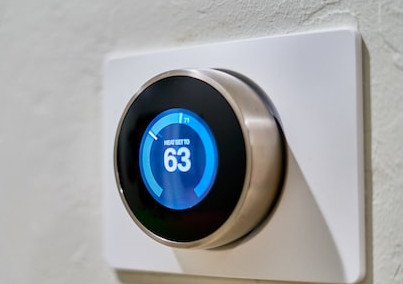

- Override thermostat setting
- Undo slide design suggestions
- Automated shipment + offering free return shipment
- Appeal process for banned "spammers" or "bots"
- Easy to repair bumpers on autonomous vehicles?
Guardrails - Examples
Recall: Thermal fuse in smart toaster
- maximum toasting time + extra heat sensor
Guardrails - Examples
CC BY-SA 4.0 by Chabe01
Mistake detection
Independent mechanism to detect problems (in the real world)
Example: Gyrosensor to detect a train taking a turn too fast
Graceful Degradation (Fail-safe)
- Goal: When a component failure is detected, achieve system safety by reducing functionality and performance
- Switches operating mode when failure detected (e.g., slower, conservative)

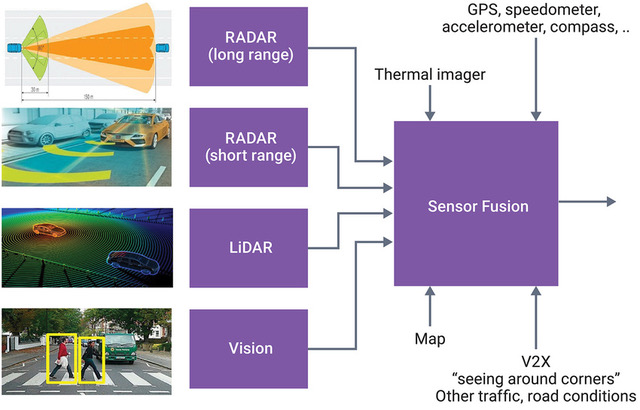

Redundancy Example: Sensor Fusion
- Combine data from a wide range of sensors
- Provides partial information even when some sensor is faulty
- A critical part of modern self-driving vehicles
Short Breakout
What design strategies would you consider to mitigate ML mistakes:
- Credit card fraud detection
- Image captioning for accessibility in photo sharing site
- Speed limiter for cars (with vision system to detect traffic signs)
Consider: Human in the loop, Undoable actions, Guardrails, Mistake detection and recovery (monitoring, doer-checker, fail-over, redundancy), Containment and isolation
As a group, post one design idea for each scenario to #lecture and tag all group members.
What's the worst that could happen?
Likely? Toby Ord predicts existential risk from GAI at 10% within 100 years: Toby Ord, "The Precipice: Existential Risk and the Future of Humanity", 2020
What's the worst that could happen?
What is Risk Analysis?
What can possibly go wrong in my system, and what are potential impacts on system requirements?
Risk = Likelihood * Impact
A number of methods:
- Failure mode & effects analysis (FMEA)
- Hazard analysis
- Why-because analysis
- Fault tree analysis (FTA)
- ...
Fault Tree Analysis (FTA)
- Fault tree: A top-down diagram that displays the relationships
between a system failure (i.e., requirement violation) and its potential causes.
- Identify sequences of events that result in a failure
- Prioritize the contributors leading to the failure
- Inform decisions about how to (re-)design the system
- Investigate an accident & identify the root cause
- Often used for safety & reliability, but can also be used for other types of requirements (e.g., poor performance, security attacks...)
Consider Mitigations
- Remove basic events with mitigations
- Increase the size of cut sets with mitigations
Failure Mode and Effects Analysis (FMEA)
- A forward search technique to identify potential hazards
- Widely used in aeronautics, automotive, healthcare, food services, semiconductor processing, and (to some extent) software
Hazard and Interoperability Study (HAZOP)
identify hazards and component fault scenarios through guided inspection of requirements
Machine Learning in Production
Toward Architecture and Design
After requirements...
Learning Goals
- Describe the role of architecture and design between requirements and implementation
- Identify the different ML components and organize and prioritize their quality concerns for a given project
- Explain they key ideas behind decision trees and random forests and analyze consequences for various qualities
- Demonstrate an understanding of the key ideas of deep learning and how it drives qualities
- Plan and execute an evaluation of the qualities of alternative AI components for a given purpose
Readings
Required reading: Hulten, Geoff. "Building Intelligent Systems: A Guide to Machine Learning Engineering." (2018), Chapters 17 and 18
Recommended reading: Siebert, Julien, Lisa Joeckel, Jens Heidrich, Koji Nakamichi, Kyoko Ohashi, Isao Namba, Rieko Yamamoto, and Mikio Aoyama. “Towards Guidelines for Assessing Qualities of Machine Learning Systems.” In International Conference on the Quality of Information and Communications Technology, pp. 17–31. Springer, Cham, 2020.
- ML components for transcription model, pipeline to train the model, monitoring infrastructure...
- Non-ML components for data storage, user interface, payment processing, ...
- User requirements and assumptions
- System quality vs model quality
- System requirements vs model requirements
Thinking like a Software Architect
Case Study: Twitter
Twitter Case Study: Key Insights
Architectural decisions affect entire systems, not only individual modules
Abstract, different abstractions for different scenarios
Reason about quality attributes early
Make architectural decisions explicit
Question: Did the original architect make poor decisions?
System Decomposition
Identify components and their responsibilities
Establishes interfaces and team boundaries
Information Hiding
Decomposition enables scaling teams
Each team works on a component
Need to coordinate on interfaces, but implementations remain hidden
Interface descriptions are crutial
- Who is responsible for what
- Component requirements (specifications), behavioral and quality
- Especially consider nonlocal qualities: e.g., safety, privacy
Interfaces rarely fully specified in practice, source of conflicts
Common components
- Model inference service: Uses model to make predictions for input data
- ML pipeline: Infrastructure to train/update the model
- Monitoring: Observe model and system
- Data sources: Manual/crowdsourcing/logs/telemetry/...

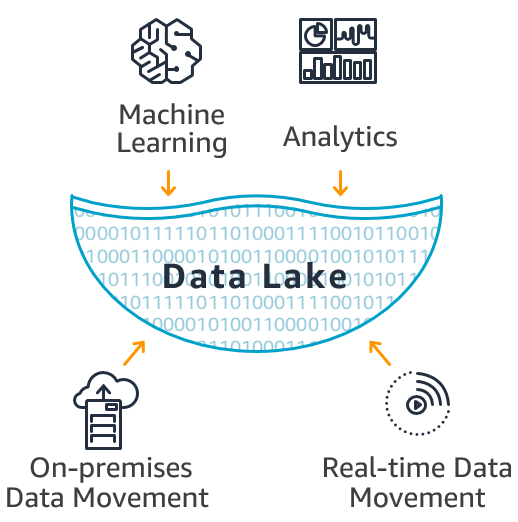

- Data management: Storage and processing of data, often at scale
- Feature store: Reusable feature engineering code, cached feature computations
Common System-Wide Design Challenges
Separating concerns, understanding interdependencies
- e.g., anticipating/breaking feedback loops, conflicting needs of components
Facilitating experimentation, updates with confidence
Separating training and inference and closing the loop
- e.g., collecting telemetry to learn from user interactions
Learn, serve, and observe at scale or with resource limits
- e.g., cloud deployment, embedded devices
Qualities of Interest?
Scenario: Component for detecting credit card frauds, as a service for banks

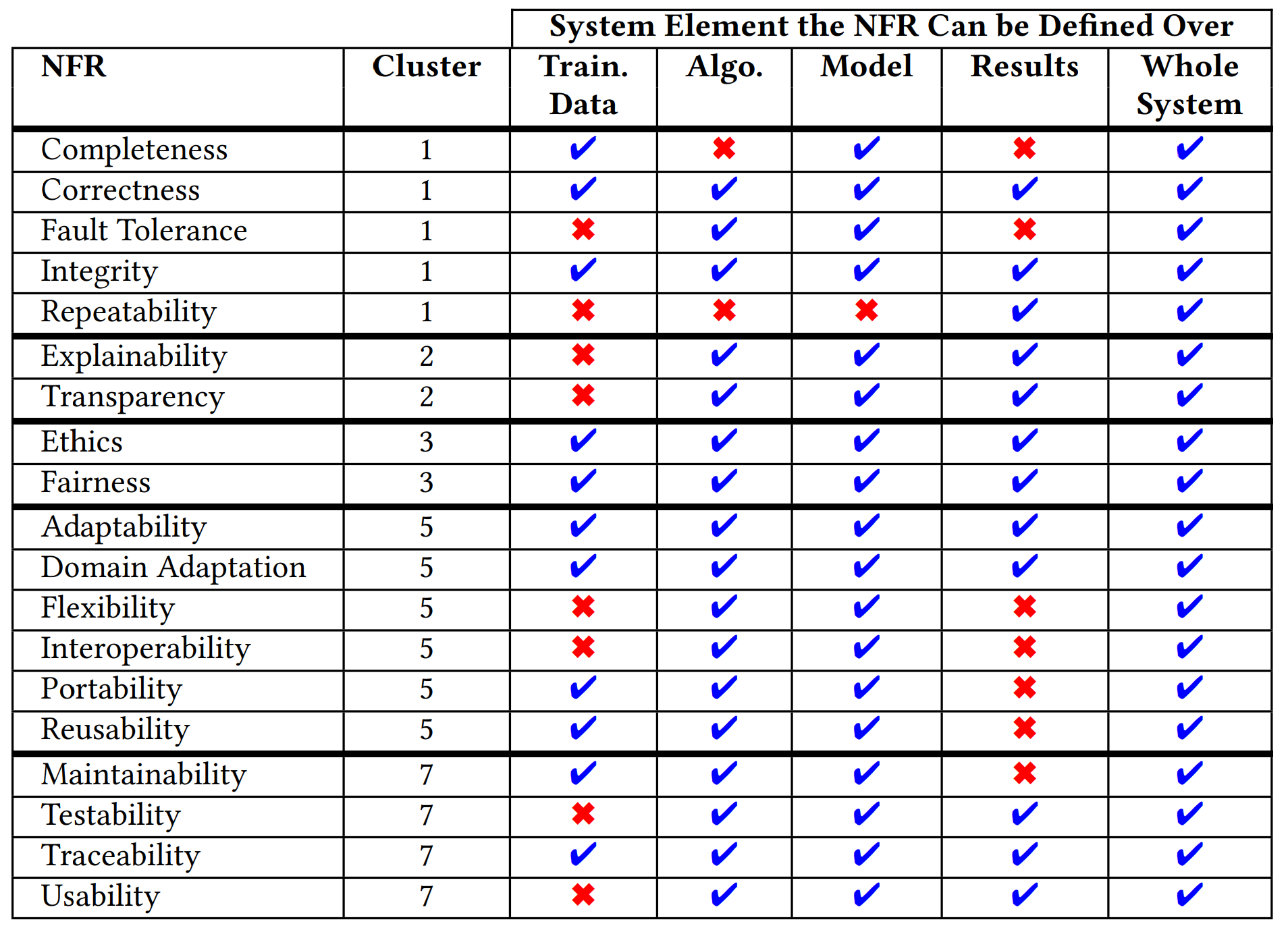

From: Habibullah, Khan Mohammad, Gregory Gay, and Jennifer Horkoff. "Non-Functional Requirements for Machine Learning: An Exploration of System Scope and Interest." arXiv preprint arXiv:2203.11063 (2022).
Decision Trees: Qualities
- Tasks: Classification & regression
- Qualities: Advantages: ?? Drawbacks: ??
fWh,bh,Wo,bo(X)=ϕ(Wo⋅ϕ(Wh⋅X+bh)+bo)
(matrix multiplications interleaved with step function)
Deep Learning
- Tasks: Classification & regression
- Qualities: Advantages: ?? Drawbacks: ??
Network Size
- 50 Layer ResNet network -- classifying 224x224 images into 1000 categories
- 26 million weights, computes 16 million activations during inference, 168 MB to store weights as floats
- Google in 2012(!): 1TB-1PB of training data, 1 billion to 1 trillion parameters
- OpenAI’s GPT-2 (2019) -- text generation
- 48 layers, 1.5 billion weights (~12 GB to store weights)
- released model reduced to 117 million weights
- trained on 7-8 GPUs for 1 month with 40GB of internet text from 8 million web pages
- OpenAI’s GPT-3 (2020): 96 layers, 175 billion weights, 700 GB in memory, $4.6M in approximate compute cost for training
Cost & Energy Consumption
| Consumption | CO2 (lbs) |
|---|---|
| Air travel, 1 passenger, NY↔SF | 1984 |
| Human life, avg, 1 year | 11,023 |
| American life, avg, 1 year | 36,156 |
| Car, avg incl. fuel, 1 lifetime | 126,000 |
| Training one model (GPU) | CO2 (lbs) |
|---|---|
| NLP pipeline (parsing, SRL) | 39 |
| w/ tuning & experimentation | 78,468 |
| Transformer (big) | 192 |
| w/ neural architecture search | 626,155 |
Strubell, Emma, Ananya Ganesh, and Andrew McCallum. "Energy and Policy Considerations for Deep Learning in NLP." In Proc. ACL, pp. 3645-3650. 2019.
Constraints and Tradeoffs
Constraints
Constraints define the space of attributes for valid design solutions
Trade-offs: Cost vs Accuracy
"We evaluated some of the new methods offline but the additional accuracy gains that we measured did not seem to justify the engineering effort needed to bring them into a production environment.”
Amatriain & Basilico. Netflix Recommendations: Beyond the 5 stars, Netflix Technology Blog (2012)
Breakout: Qualities & ML Algorithms
Consider two scenarios:
- Credit card fraud detection
- Pedestrian detection in sidewalk robot
As a group, post to #lecture tagging all group members:
- Qualities of interests: ??
- Constraints: ??
- ML algorithm(s) to use: ??
Machine Learning in Production
Deploying a Model
Learning Goals
- Understand important quality considerations when deploying ML components
- Follow a design process to explicitly reason about alternative designs and their quality tradeoffs
- Gather data to make informed decisions about what ML technique to use and where and how to deploy it
- Understand the power of design patterns for codifying design knowledge
- Create architectural models to reason about relevant characteristics
- Critique the decision of where an AI model lives (e.g., cloud vs edge vs hybrid), considering the relevant tradeoffs
- Deploy models locally and to the cloud
- Document model inference services
Deploying a Model is Easy
Model inference component as a service
from flask import Flask, escape, request
app = Flask(__name__)
app.config['UPLOAD_FOLDER'] = '/tmp/uploads'
detector_model = … # load model…
# inference API that returns JSON with classes
# found in an image
@app.route('/get_objects', methods=['POST'])
def pred():
uploaded_img = request.files["images"]
coverted_img = … # feature encoding of uploaded img
result = detector_model(converted_img)
return jsonify({"response":
result['detection_class_entities']})
But is it really easy?
Offline use?
Deployment at scale?
Hardware needs and operating cost?
Frequent updates?
Integration of the model into a system?
Meeting system requirements?
Every system is different!
What can we reason about?
Peng, Zi, Jinqiu Yang, Tse-Hsun Chen, and Lei Ma. "A first look at the integration of machine learning models in complex autonomous driving systems: a case study on Apollo." In Proc. FSE, 2020.
Case Study: Augmented Reality Translation
Where Should the Models Live?
Cloud? Phone? Glasses?
What qualities are relevant for the decision?
Breakout: Latency and Bandwidth Analysis
- Estimate latency and bandwidth requirements between components
- Discuss tradeoffs among different deployment models
As a group, post in #lecture tagging group members:
- Recommended deployment for OCR (with justification):
- Recommended deployment for Translation (with justification):
Reusing Feature Engineering Code
Avoid training–serving skew
Tecton Feature Store
Separating Models and Business Logic
Based on: Yokoyama, Haruki. "Machine learning system architectural pattern for improving operational stability." In Int'l Conf. Software Architecture Companion, pp. 267-274. IEEE, 2019.
Documenting Input/Output Types for Inference Components
{
"mid": string,
"languageCode": string,
"name": string,
"score": number,
"boundingPoly": {
object (BoundingPoly)
}
}
From Google’s public object detection API.
Anti-Patterns
- Big Ass Script Architecture
- Dead Experimental Code Paths
- Glue code
- Multiple Language Smell
- Pipeline Jungles
- Plain-Old Datatype Smell
- Undeclared Consumers
See also: 🗎 Washizaki, Hironori, Hiromu Uchida, Foutse Khomh, and Yann-Gaël Guéhéneuc. "Machine Learning Architecture and Design Patterns." Draft, 2019; 🗎 Sculley, et al. "Hidden technical debt in machine learning systems." In NeurIPS, 2015.
Machine Learning in Production
Testing in Production
Learning Goals
- Design telemetry for evaluation in practice
- Understand the rationale for beta tests and chaos experiments
- Plan and execute experiments (chaos, A/B, shadow releases, ...) in production
- Conduct and evaluate multiple concurrent A/B tests in a system
- Perform canary releases
- Examine experimental results with statistical rigor
- Support data scientists with monitoring platforms providing insights from production data
Beta Testing

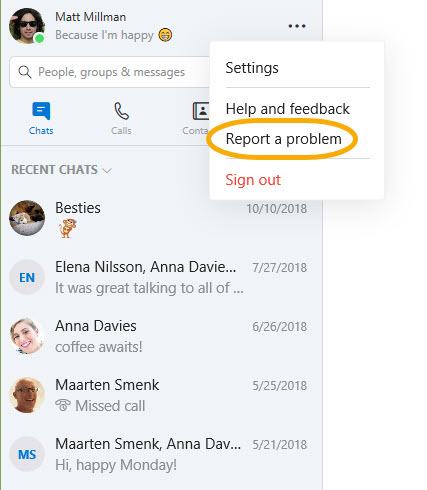

Crash Telemetry
A/B Testing
Measuring Model Quality with Telemetry
- Usual 3 steps: (1) Metric, (2) data collection (telemetry), (3) operationalization
- Telemetry can provide insights for correctness
- sometimes very accurate labels for real unseen data
- sometimes only mistakes
- sometimes delayed
- often just samples
- often just weak proxies for correctness
- Often sufficient to approximate precision/recall or other model-quality measures
- Mismatch to (static) evaluation set may indicate stale or unrepresentative data
- Trend analysis can provide insights even for inaccurate proxy measures
Breakout: Design Telemetry in Production
Discuss how to collect telemetry, the metric to monitor, and how to operationalize
Scenarios:
- Front-left: Amazon: Shopping app detects the shoe brand from photos
- Front-right: Google: Tagging uploaded photos with friends' names
- Back-left: Spotify: Recommended personalized playlists
- Back-right: Wordpress: Profanity filter to moderate blog posts
As a group post to #lecture and tag team members:
- Quality metric:
- Data to collect:
- Operationalization:

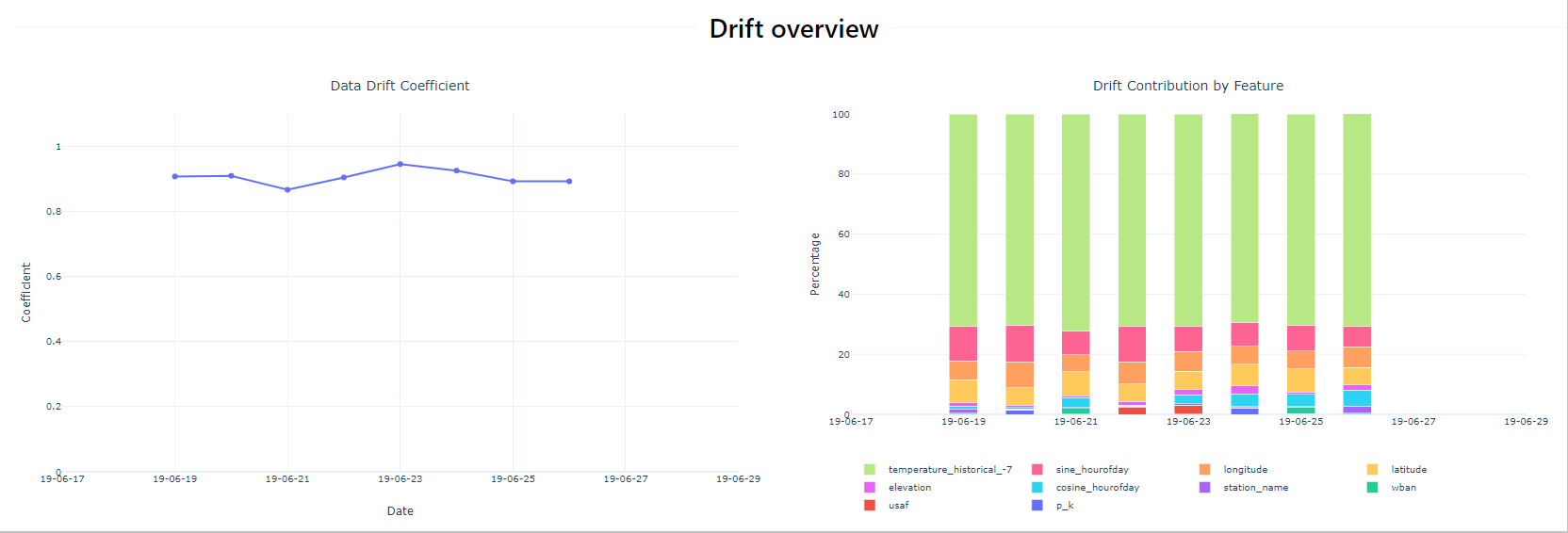

Detecting Drift
Image source: Joel Thomas and Clemens Mewald. Productionizing Machine Learning: From Deployment to Drift Detection. Databricks Blog, 2019
Engineering Challenges for Telemetry
Model Quality vs System Quality
Bernardi, Lucas, et al. "150 successful machine learning models: 6 lessons learned at Booking.com." In Proc. Int'l Conf. Knowledge Discovery & Data Mining, 2019.

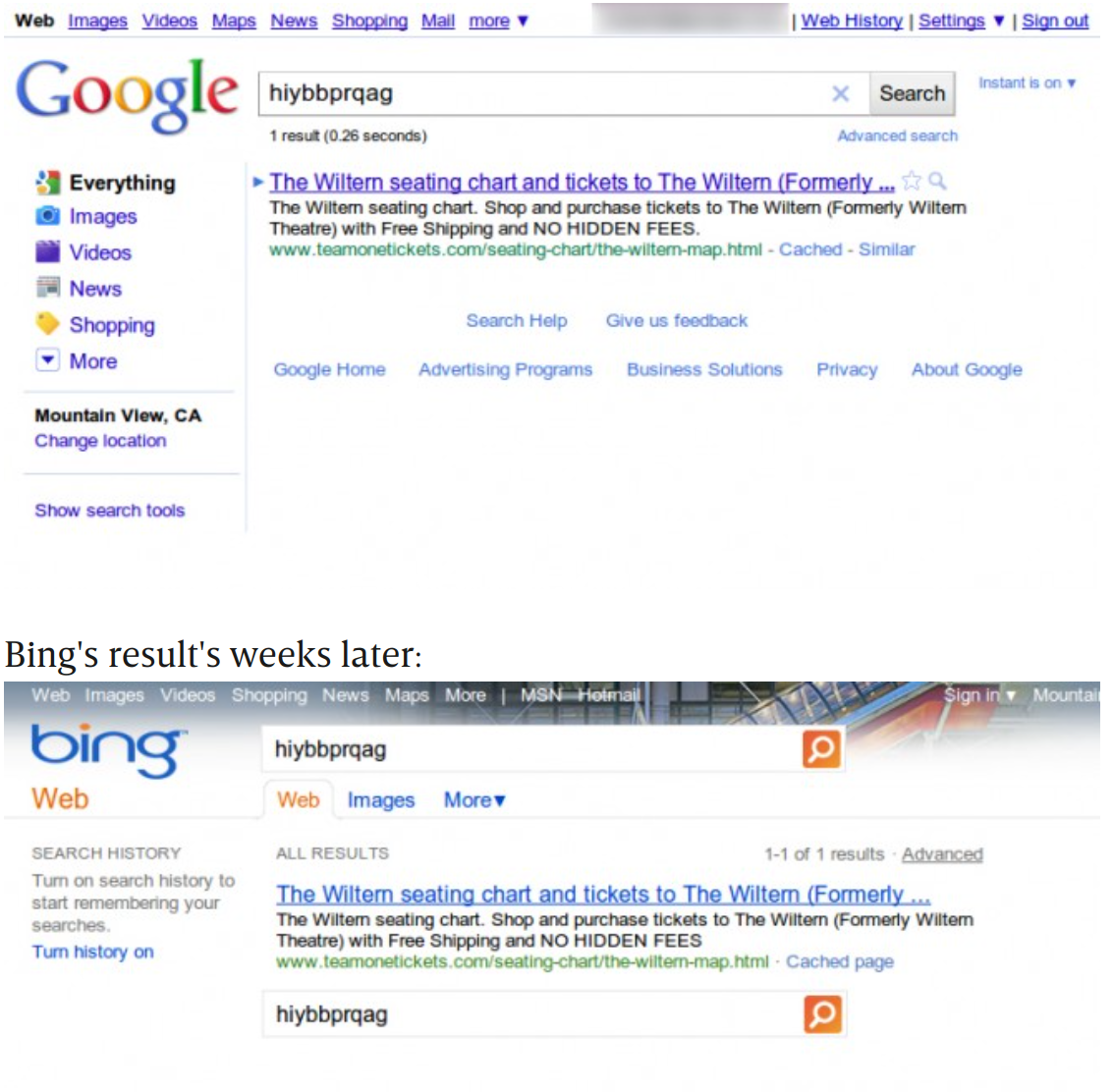

Bing Experiment
- Experiment: Ad Display at Bing
- Suggestion prioritzed low
- Not implemented for 6 month
- Ran A/B test in production
- Within 2h revenue-too-high alarm triggered suggesting serious bug (e.g., double billing)
- Revenue increase by 12% - $100M anually in US
- Did not hurt user-experience metrics
From: Kohavi, Ron, Diane Tang, and Ya Xu. "Trustworthy Online Controlled Experiments: A Practical Guide to A/B Testing." 2020.
Feature Flags (Boolean flags)
if (features.enabled(userId, "one_click_checkout")) {
// new one click checkout function
} else {
// old checkout functionality
}
- Good practices: tracked explicitly, documented, keep them localized and independent
- External mapping of flags to customers, who should see what configuration
- e.g., 1% of users sees
one_click_checkout, but always the same users; or 50% of beta-users and 90% of developers and 0.1% of all users
- e.g., 1% of users sees
def isEnabled(user): Boolean = (hash(user.id) % 100) < 10
Canary Releases
Release new version to small percentage of population (like A/B testing)
Automatically roll back if quality measures degrade
Automatically and incrementally increase deployment to 100% otherwise
Chaos Experiments
Machine Learning in Production
Infrastructure Quality & MLOps
Learning Goals
- Implement and automate tests for all parts of the ML pipeline
- Understand testing opportunities beyond functional correctness
- Automate test execution with continuous integration
- Deploy a service for models using container infrastructure
- Automate common configuration management tasks
- Devise a monitoring strategy and suggest suitable components for implementing it
- Diagnose common operations problems
- Understand the typical concerns and concepts of MLOps
Possible Mistakes in ML Pipelines
Danger of "silent" mistakes in many phases
Examples?
Integrating the Pipeline with other Components
Unit Test, Integration Tests, System Tests
General Testing Strategy: Decoupling Code Under Test
Subtle Bugs in Data Wrangling Code
df['Join_year'] = df.Joined.dropna().map(
lambda x: x.split(',')[1].split(' ')[1])
df.loc[idx_nan_age,'Age'].loc[idx_nan_age] =
df['Title'].loc[idx_nan_age].map(map_means)
df["Weight"].astype(str).astype(int)
Modularizing and Testing Data Cleaning
def is_valid_row(row):
try:
datetime.strptime(row['date'], '%b %d %Y')
return true
except ValueError:
return false
@test
def test_dates(self):
self.assertTrue(is_valid_row(...))
self.assertTrue(is_valid_row(...))
self.assertFalse(is_valid_row(...))
Integration and system tests
Test larger units of behavior
Often based on use cases or user stories -- customer perspective
@Test void testCleaningWithFeatureEng() {
DataFrame d = loadTestData();
DataFrame cd = clean(d);
DataFrame f = feature3.encode(cd);
assert(noMissingValues(f.getColumn("m")));
assert(max(f.getColumn("m"))<=1.0);
}
Static Analysis, Code Linting
Automatic detection of problematic patterns based on code structure
if (user.jobTitle = "manager") {
...
}
function fn() {
x = 1;
return x;
x = 3;
}
Breakout Groups
- In the Smartphone Covid Detection scenario
- Discuss in groups:
- Back left: data tests
- Back right: model dev. tests
- Front right: infrastructure tests
- Front left: monitoring tests
- For 8 min, discuss some of the listed point in the context of the Covid-detection scenario: what would you do?
- In
#lecture, tagging group members, suggest what tests to implement

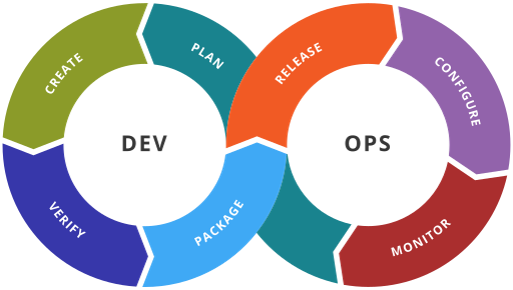

Dev vs. Ops
Developers
- Coding
- Testing, static analysis, reviews
- Continuous integration
- Bug tracking
- Running local tests and scalability experiments
- ...
Operations
- Allocating hardware resources
- Managing OS updates
- Monitoring performance
- Monitoring crashes
- Managing load spikes, …
- Tuning database performance
- Running distributed at scale
- Rolling back releases
- ...
QA responsibilities in both roles

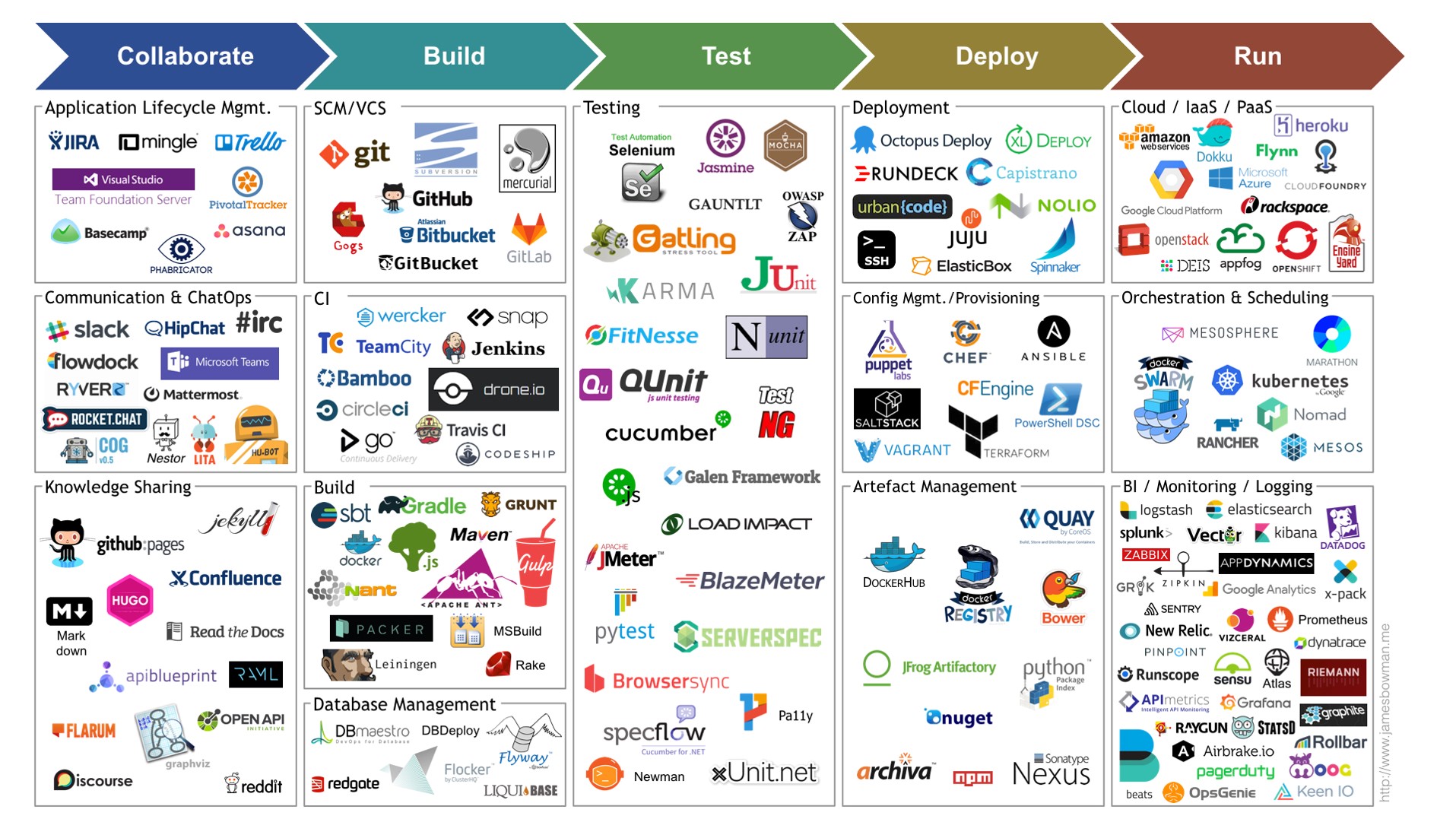

Heavy tooling and automation
Automate Everything
Containers
- Lightweight virtual machine
- Contains entire runnable software, incl. all dependencies and configurations
- Used in development and production
- Sub-second launch time
- Explicit control over shared disks and network connections
CC BY-SA 4.0 Khtan66
MLOps Overview
Integrate ML artifacts into software release process, unify process (i.e., DevOps extension)
Automated data and model validation (continuous deployment)
Continuous deployment for ML models: from experimenting in notebooks to quick feedback in production
Versioning of models and datasets (more later)
Monitoring in production (discussed earlier)
Further reading: MLOps principles

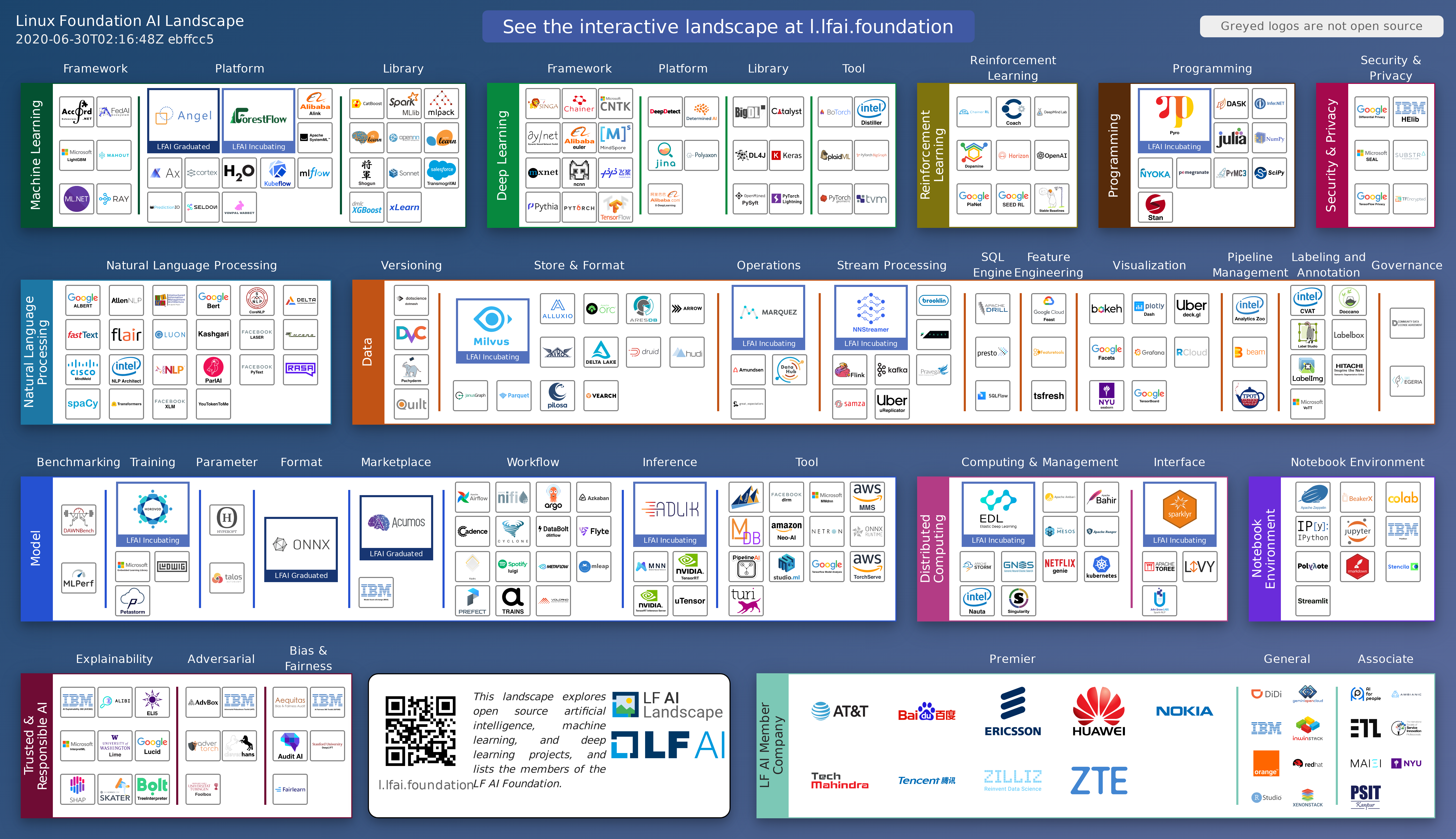

Tooling Landscape LF AI
Linux Foundation AI Initiative
Machine Learning in Production
Data Quality
Learning Goals
- Distinguish precision and accuracy; understanding the better models vs more data tradeoffs
- Use schema languages to enforce data schemas
- Design and implement automated quality assurance steps that check data schema conformance and distributions
- Devise infrastructure for detecting data drift and schema violations
- Consider data quality as part of a system; design an organization that values data quality
Data cleaning and repairing account for about 60% of the work of data scientists.
Own experience?
Quote: Gil Press. “Cleaning Big Data: Most Time-Consuming, Least Enjoyable Data Science Task, Survey Says.” Forbes Magazine, 2016.

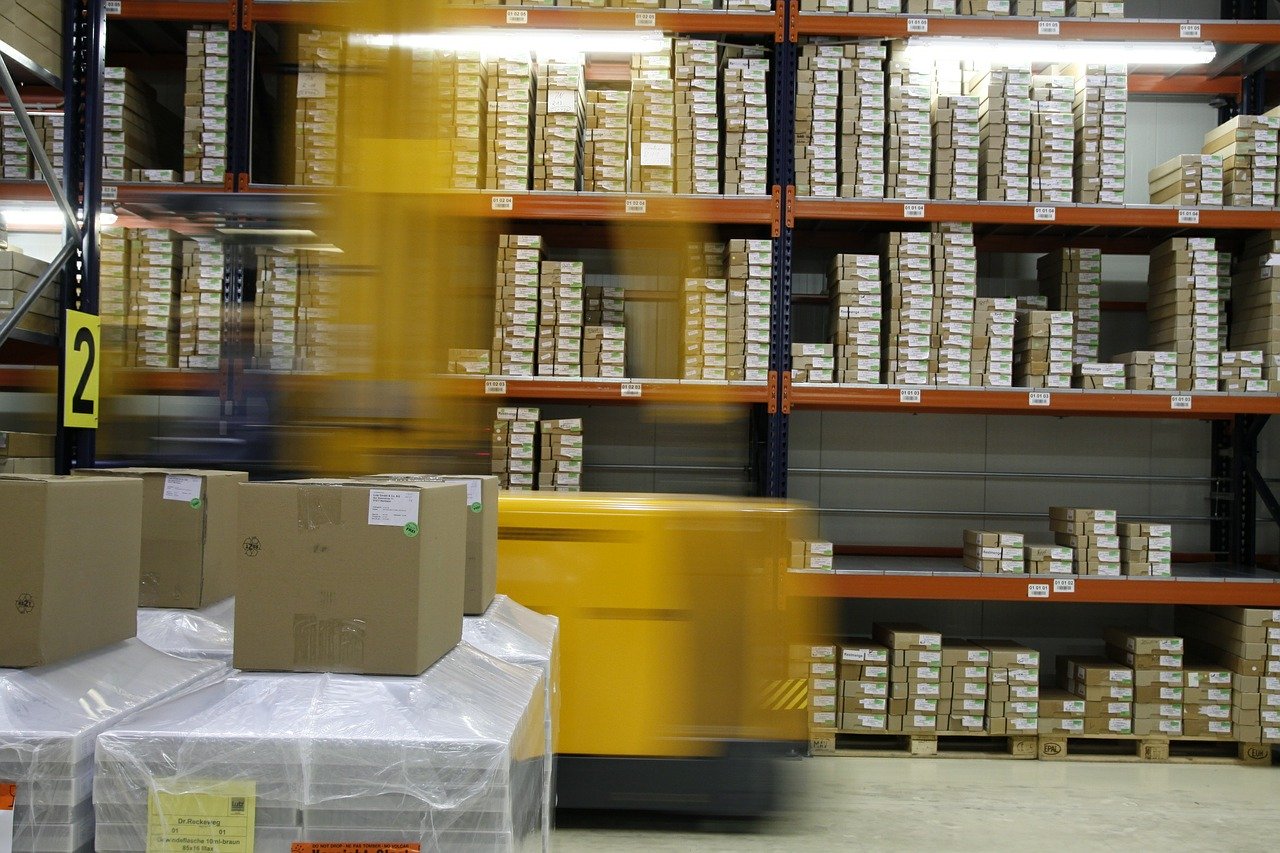

Case Study: Inventory Management
Many Data Sources
sources of different reliability and quality
Raw Data is an Oxymoron
Recommended Reading: Gitelman, Lisa, Virginia Jackson, Daniel Rosenberg, Travis D. Williams, Kevin R. Brine, Mary Poovey, Matthew Stanley et al. "Data bite man: The work of sustaining a long-term study." In "Raw Data" Is an Oxymoron, (2013), MIT Press: 147-166.
Accuracy vs Precision
Accuracy: Reported values (on average) represent real value
Precision: Repeated measurements yield the same result
Accurate, but imprecise: Average over multiple measurements
Inaccurate, but precise: ?
(CC-BY-4.0 by Arbeck)

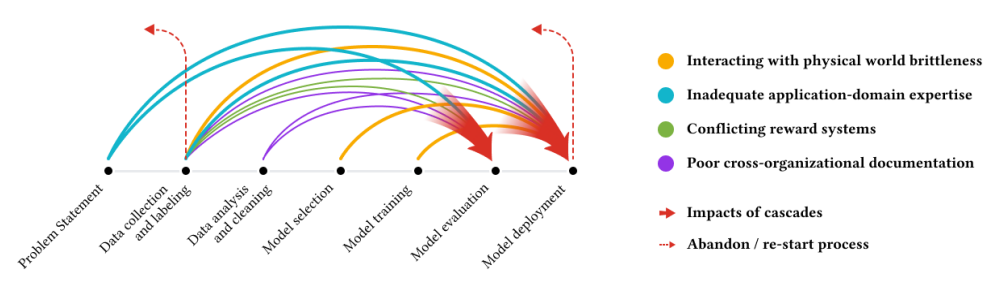

Data Cascades
Detection almost always delayed! Expensive rework. Difficult to detect in offline evaluation.
Sambasivan, N., et al. (2021, May). “Everyone wants to do the model work, not the data work”: Data Cascades in High-Stakes AI. In Proc. CHI (pp. 1-15).
Schema in Relational Databases
CREATE TABLE employees (
emp_no INT NOT NULL,
birth_date DATE NOT NULL,
name VARCHAR(30) NOT NULL,
PRIMARY KEY (emp_no));
CREATE TABLE departments (
dept_no CHAR(4) NOT NULL,
dept_name VARCHAR(40) NOT NULL,
PRIMARY KEY (dept_no), UNIQUE KEY (dept_name));
CREATE TABLE dept_manager (
dept_no CHAR(4) NOT NULL,
emp_no INT NOT NULL,
FOREIGN KEY (emp_no) REFERENCES employees (emp_no),
FOREIGN KEY (dept_no) REFERENCES departments (dept_no),
PRIMARY KEY (emp_no,dept_no));

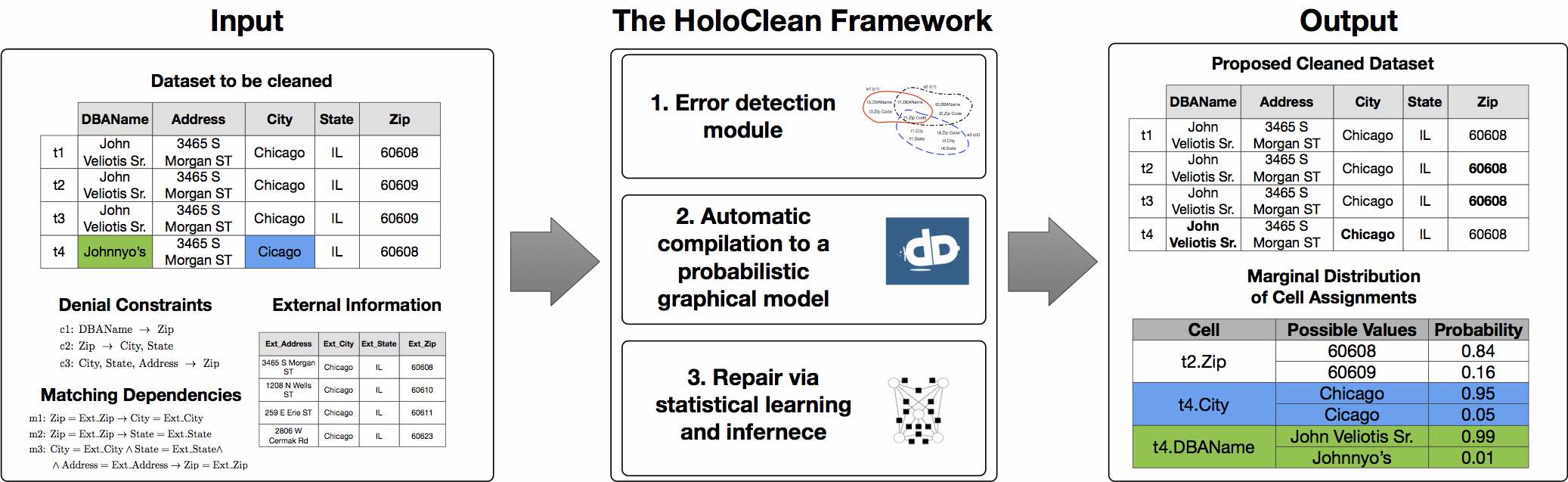

Example: HoloClean
- User provides rules as integrity constraints (e.g., "two entries with the same name can't have different city")
- Detect violations of the rules in the data; also detect statistical outliers
- Automatically generate repair candidates (with probabilities)
Image source: Theo Rekatsinas, Ihab Ilyas, and Chris Ré, “HoloClean - Weakly Supervised Data Repairing.” Blog, 2017.
Drift & Model Decay
Concept drift (or concept shift)
- properties to predict change over time (e.g., what is credit card fraud)
- model has not learned the relevant concepts
- over time: different expected outputs for same inputs
Data drift (or covariate shift, distribution shift, or population drift)
- characteristics of input data changes (e.g., customers with face masks)
- input data differs from training data
- over time: predictions less confident, further from training data
Upstream data changes
- external changes in data pipeline (e.g., format changes in weather service)
- model interprets input data incorrectly
- over time: abrupt changes due to faulty inputs
How do we fix these drifts?
Breakout: Drift in the Inventory System
What kind of drift might be expected?
As a group, tagging members, write plausible examples in #lecture:
- Concept Drift:
- Data Drift:
- Upstream data changes:
Microsoft Azure Data Drift Dashboard
Image source and further readings: Detect data drift (preview) on models deployed to Azure Kubernetes Service (AKS)
"Everyone wants to do the model work, not the data work"
Sambasivan, N., Kapania, S., Highfill, H., Akrong, D., Paritosh, P., & Aroyo, L. M. (2021, May). “Everyone wants to do the model work, not the data work”: Data Cascades in High-Stakes AI. In Proceedings of the 2021 CHI Conference on Human Factors in Computing Systems (pp. 1-15).
Data Quality Documentation
Teams rarely document expectations of data quantity or quality
Data quality tests are rare, but some teams adopt defensive monitoring
- Local tests about assumed structure and distribution of data
- Identify drift early and reach out to producing teams
Several ideas for documenting distributions, including Datasheets and Dataset Nutrition Label
- Mostly focused on static datasets, describing origin, consideration, labeling procedure, and distributions; Example
🗎 Gebru, Timnit, et al. "Datasheets for datasets." Communications of the ACM 64, no. 12 (2021).
🗎 Nahar, Nadia, et al. “Collaboration Challenges in Building ML-Enabled Systems: Communication, Documentation, Engineering, and Process.” In Pro. ICSE, 2022.
Machine Learning in Production
Scaling Data Storage and Data Processing
Learning Goals
- Organize different data management solutions and their tradeoffs
- Understand the scalability challenges involved in large-scale machine learning and specifically deep learning
- Explain the tradeoffs between batch processing and stream processing and the lambda architecture
- Recommend and justify a design and corresponding technologies for a given system
Scaling Computations
Efficent Algorithms
Faster Machines
More Machines

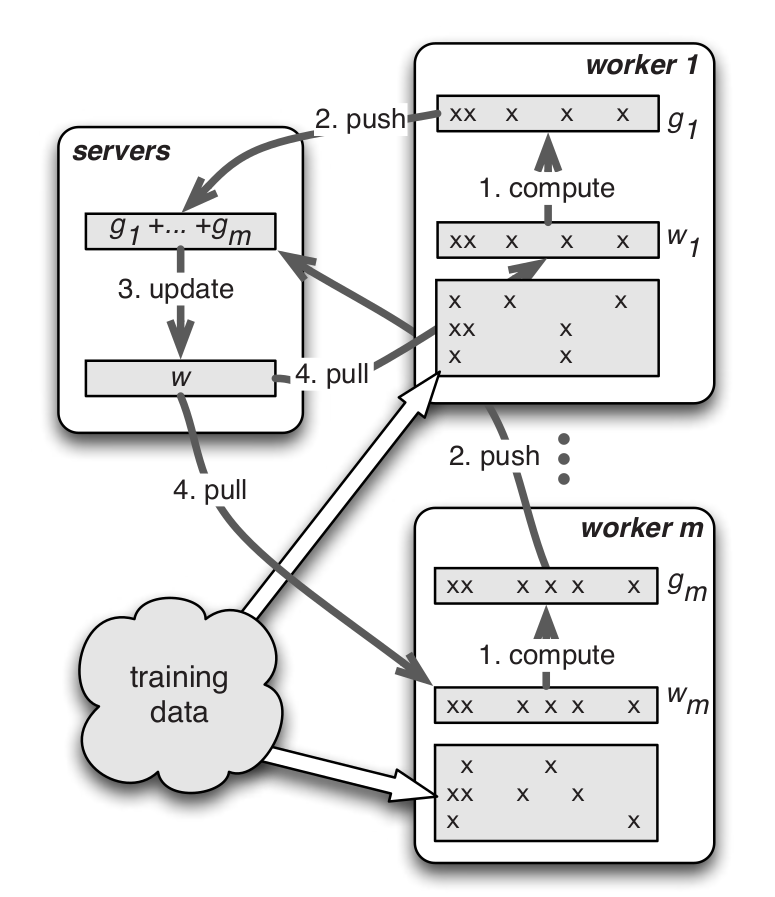

Distributed Gradient Descent
Relational Data Models
Photos:
| photo_id | user_id | path | upload_date | size | camera_id | camera_setting |
|---|---|---|---|---|---|---|
| 133422131 | 54351 | /st/u211/1U6uFl47Fy.jpg | 2021-12-03T09:18:32.124Z | 5.7 | 663 | ƒ/1.8; 1/120; 4.44mm; ISO271 |
| 133422132 | 13221 | /st/u11b/MFxlL1FY8V.jpg | 2021-12-03T09:18:32.129Z | 3.1 | 1844 | ƒ/2, 1/15, 3.64mm, ISO1250 |
| 133422133 | 54351 | /st/x81/ITzhcSmv9s.jpg | 2021-12-03T09:18:32.131Z | 4.8 | 663 | ƒ/1.8; 1/120; 4.44mm; ISO48 |
Users:
| user_id | account_name | photos_total | last_login |
|---|---|---|---|
| 54351 | ckaestne | 5124 | 2021-12-08T12:27:48.497Z |
| 13221 | eva.burk | 3 | 2021-12-21T01:51:54.713Z |
Cameras:
| camera_id | manufacturer | print_name |
|---|---|---|
| 663 | Google Pixel 5 | |
| 1844 | Motorola | Motorola MotoG3 |
select p.photo_id, p.path, u.photos_total
from photos p, users u
where u.user_id=p.user_id and u.account_name = "ckaestne"
Partitioning
Divide data:
- Horizontal partitioning: Different rows in different tables; e.g., movies by decade, hashing often used
- Vertical partitioning: Different columns in different tables; e.g., movie title vs. all actors
Tradeoffs?
Replication with Leaders and Followers
Microservices
Figure based on Christopher Meiklejohn. Dynamic Reduction: Optimizing Service-level Fault Injection Testing With Service Encapsulation. Blog Post 2021
Stream Processing (e.g., Kafka)
Event Sourcing
- Append only databases
- Record edit events, never mutate data
- Compute current state from all past events, can reconstruct old state
- For efficiency, take state snapshots
- Similar to traditional database logs, but persistent
addPhoto(id=133422131, user=54351, path="/st/u211/1U6uFl47Fy.jpg", date="2021-12-03T09:18:32.124Z")
updatePhotoData(id=133422131, user=54351, title="Sunset")
replacePhoto(id=133422131, user=54351, path="/st/x594/vipxBMFlLF.jpg", operation="/filter/palma")
deletePhoto(id=133422131, user=54351)
Lambda Architecture and Machine Learning
- Learn accurate model in batch job
- Learn incremental model in stream processor
Data Lake
Trend to store all events in raw form (no consistent schema)
May be useful later
Data storage is comparably cheap
Bet: Yet unknown future value of data is greater than storage costs
Breakout: Vimeo Videos
As a group, discuss and post in #lecture, tagging group members:
- How to distribute storage:
- How to design scalable copy-right protection solution:
- How to design scalable analytics (views, ratings, ...):
Machine Learning in Production
Process and Technical Debt
Process...
Learning Goals
- Overview of common data science workflows (e.g., CRISP-DM)
- Importance of iteration and experimentation
- Role of computational notebooks in supporting data science workflows
- Overview of software engineering processes and lifecycles: costs and benefits of process, common process models, role of iteration and experimentation
- Contrasting data science and software engineering processes, goals and conflicts
- Integrating data science and software engineering workflows in process model for engineering AI-enabled systems with ML and non-ML components; contrasting different kinds of AI-enabled systems with data science trajectories
- Overview of technical debt as metaphor for process management; common sources of technical debt in AI-enabled systems

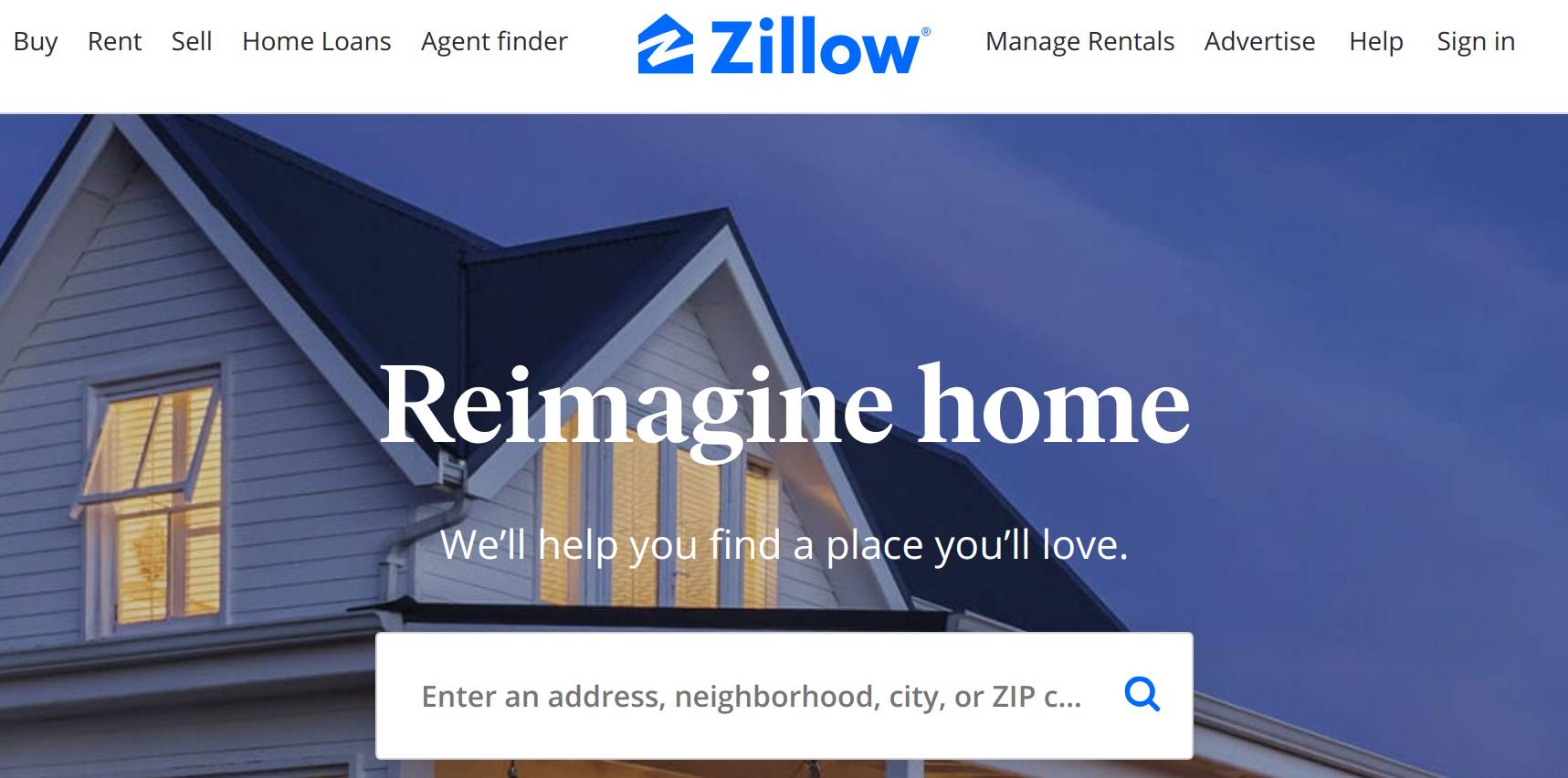

Case Study: Real-Estate Website
Data Science is Iterative and Exploratory
Martínez-Plumed et al. "CRISP-DM Twenty Years Later: From Data Mining Processes to Data Science Trajectories." IEEE Transactions on Knowledge and Data Engineering (2019).
Computational Notebooks
- Origins in "literate programming", interleaving text and code, treating programs as literature (Knuth'84)
- First notebook in Wolfram Mathematica 1.0 in 1988
- Document with text and code cells, showing execution results under cells
- Code of cells is executed, per cell, in a kernel
- Many notebook implementations and supported languages, Python + Jupyter currently most popular
Waterfall Model
taming chaos, understand req., plan before coding, remember testing
Risk First: Spiral Model
incremental prototypes, starting with most risky components
Constant iteration: Agile
working with customers, constant replanning
(Image CC BY-SA 4.0, Lakeworks)
Discussion: Iteration in Notebook vs Agile?
(CC BY-SA 4.0, Lakeworks)
Model first vs Product first

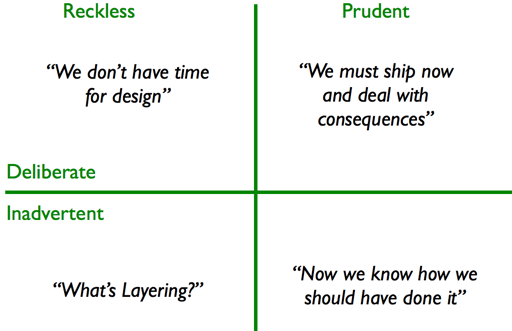

Technical debt
Source: Martin Fowler 2009, https://martinfowler.com/bliki/TechnicalDebtQuadrant.html
Breakout: Technical Debt from ML
As a group in #lecture, tagging members: Post two plausible examples technical debt in housing price prediction system:
- Deliberate, prudent:
- Reckless, inadvertent:
Sculley, David, et al. Hidden technical debt in machine learning systems. Advances in Neural Information Processing Systems. 2015.
Machine Learning in Production
Responsible ML Engineering
(Intro to Ethics and Fairness)
Changing directions...
With a few lines of code...
In 2015, Shkreli received widespread criticism [...] obtained the manufacturing license for the antiparasitic drug Daraprim and raised its price from USD 13.5 to 750 per pill [...] referred to by the media as "the most hated man in America" and "Pharma Bro". -- Wikipedia
"I could have raised it higher and made more profits for our shareholders. Which is my primary duty." -- Martin Shkreli
Another Example: Social Media
What is the (real) organizational objective of the company?
Mental Health
- 35% of US teenagers with low social-emotional well-being have been bullied on social media.
- 70% of teens feel excluded when using social media.
Who's to blame?
Are these companies intentionally trying to cause harm? If not, what are the root causes of the problem?
Liability?
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Buzzword or real progress?
Legally protected classes (US)
- Race (Civil Rights Act of 1964)
- Religion (Civil Rights Act of 1964)
- National origin (Civil Rights Act of 1964)
- Sex, sexual orientation, and gender identity (Equal Pay Act of 1963, Civil Rights Act of 1964, and Bostock v. Clayton)
- Age (40 and over, Age Discrimination in Employment Act of 1967)
- Pregnancy (Pregnancy Discrimination Act of 1978)
- Familial status (preference for or against having children, Civil Rights Act of 1968)
- Disability status (Rehabilitation Act of 1973; Americans with Disabilities Act of 1990)
- Veteran status (Vietnam Era Veterans’ Readjustment Assistance Act of 1974; Uniformed Services Employment and Reemployment Rights Act of 1994)
- Genetic information (Genetic Information Nondiscrimination Act of 2008)
Dividing a Pie?
- Equal slices for everybody
- Bigger slices for active bakers
- Bigger slices for inexperienced/new members (e.g., children)
- Bigger slices for hungry people
- More pie for everybody, bake more
(Not everybody contributed equally during baking, not everybody is equally hungry)
Harms of Allocation
- Withhold opportunities or resources
- Poor quality of service, degraded user experience for certain groups
Gender Shades: Intersectional Accuracy Disparities in Commercial Gender Classification, Buolamwini & Gebru, ACM FAT* (2018).
Harms of Representation
- Over/under-representation of certain groups in organizations
- Reinforcement of stereotypes
Discrimination in Online Ad Delivery, Latanya Sweeney, SSRN (2013).
Historical Bias
Data reflects past biases, not intended outcomes
Should the algorithm reflect the reality?
Tainted Labels
Bias in dataset labels assigned (directly or indirectly) by humans
Example: Hiring decision dataset -- labels assigned by (possibly biased) experts or derived from past (possibly biased) hiring decisions
Skewed Sample
Bias in how and what data is collected
Crime prediction: Where to analyze crime? What is considered crime? Actually a random/representative sample?
Recall: Raw data is an oxymoron
Proxies
Features correlate with protected attribute, remain after removal
- Example: Neighborhood as a proxy for race
- Extracurricular activities as proxy for gender and social class (e.g., “cheerleading”, “peer-mentor for ...”, “sailing team”, “classical music”)
Feedback Loops reinforce Bias
"Big Data processes codify the past. They do not invent the future. Doing that requires moral imagination, and that’s something only humans can provide. " -- Cathy O'Neil in Weapons of Math Destruction
Breakout: College Admission
Scenario: Evaluate applications & identify students who are likely to succeed
Features: GPA, GRE/SAT, gender, race, undergrad institute, alumni connections, household income, hometown, transcript, etc.
As a group, post to #lecture tagging members:
- Possible harms: Allocation of resources? Quality of service? Stereotyping? Denigration? Over-/Under-representation?
- Sources of bias: Skewed sample? Tainted labels? Historical bias? Limited features? Sample size disparity? Proxies?
Machine Learning in Production
Measuring Fairness
Learning Goals
- Understand different definitions of fairness
- Discuss methods for measuring fairness
- Outline interventions to improve fairness at the model level
Past bias, different starting positions
Source: Federal Reserve’s Survey of Consumer Finances
Anti-Classification
- Also called fairness through blindness or fairness through unawareness
- Ignore certain sensitive attributes when making a decision
- Example: Remove gender and race from mortgage model
- Easy to implement, but any limitations?
Group fairness
Key idea: Compare outcomes across two groups
- Similar rates of accepted loans across racial/gender groups?
- Similar chance of being hired/promoted between gender groups?
- Similar rates of (predicted) recidivism across racial groups?
Outcomes matter, not accuracy!
Equalized odds
Key idea: Focus on accuracy (not outcomes) across two groups
- Similar default rates on accepted loans across racial/gender groups?
- Similar rate of "bad hires" and "missed stars" between gender groups?
- Similar accuracy of predicted recidivism vs actual recidivism across racial groups?
Accuracy matters, not outcomes!
Breakout: Cancer Prognosis
In groups, post to #lecture tagging members:
- Does the model meet anti-classification fairness wrt. sex?
- Does the model meet group fairness?
- Does the model meet equalized odds?
- Is the model fair enough to use?
Intuitive Justice
Research on what post people perceive as fair/just (psychology)
When rewards depend on inputs and participants can chose contributions: Most people find it fair to split rewards proportional to inputs
- Which fairness measure does this relate to?
Most people agree that for a decision to be fair, personal characteristics that do not influence the reward, such as sex or age, should not be considered when dividing the rewards.
- Which fairness measure does this relate to?
Equality vs Equity
🕮 Ian Foster, Rayid Ghani, Ron S. Jarmin, Frauke Kreuter and Julia Lane. Big Data and Social Science: Data Science Methods and Tools for Research and Practice. Chapter 11, 2nd ed, 2020
Discussion: Fairness Goal for College Admission?
Strong legal precedents
Very limited scope of affirmative action
Most forms of group fairness likely illegal
In practice: Anti-classification
Improving Fairness of a Model
In all pipeline stages:
- Data collection
- Data cleaning, processing
- Training
- Inference
- Evaluation and auditing
Example audit tool: Aequitas
Example: Tweaking Thresholds
Machine Learning in Production
Building Fair Products
Learning Goals
- Understand the role of requirements engineering in selecting ML fairness criteria
- Understand the process of constructing datasets for fairness
- Document models and datasets to communicate fairness concerns
- Consider the potential impact of feedback loops on AI-based systems and need for continuous monitoring
- Consider achieving fairness in AI-based systems as an activity throughout the entire development cycle
Most Fairness Discussions are Model-Centric or Pipeline-Centric
Fairness-aware Machine Learning, Bennett et al., WSDM Tutorial (2019).
Fairness Problems are System-Wide Challenges
- Requirements engineering challenges: How to identify fairness concerns, fairness metric, design data collection and labeling
- Human-computer-interaction design challenges: How to present results to users, fairly collect data from users, design mitigations
- Quality assurance challenges: Evaluate the entire system for fairness, continuously assure in production
- Process integration challenges: Incoprorate fairness work in development process
- Education and documentation challenges: Create awareness, foster interdisciplinary collaboration
Negotiate Fairness Goals/Measures
Equality or equity? Equalized odds? ...
Cannot satisfy all. People have conflicting preferences...
Treating everybody equally in a meritocracy will reinforce existing inequalities whereas uplifting disadvantaged communities can be seen as giving unfair advantages to people who contributed less, making it harder to succeed in the advantaged group merely due to group status.
Making Rare Skills Attainable
We should stop training radiologists now. It’s just completely obvious that within five years, deep learning is going to do better than radiologists. -- Geoffrey Hinton, 2016
Who does the Fairness Work?
Within organizations usually little institutional support for fairness work, few activists
Fairness issues often raised by communities affected, after harm occurred
Affected groups may need to organize to affect change
Do we place the cost of unfair systems on those already marginalized and disadvantaged?
Breakout: College Admission
Assume most universities want to automate admissions decisions.
As a group in #lecture, tagging group members:
What good or bad societal implications can you anticipate, beyond a single product? Should we do something about it?
1. Avoid Unnecessary Distinctions
"Doctor/nurse applying blood pressure monitor" -> "Healthcare worker applying blood pressure monitor"
2. Suppress Potentially Problem Outputs
How to fix?
4. Keep Humans in the Loop
TV subtitles: Humans check transcripts, especially with heavy dialects
Fairer Data Collection
Carefully review data collection procedures, sampling biases, what data is collected, how trustworthy labels are, etc.
Can address most sources of bias: tainted labels, skewed samples, limited features, sample size disparity, proxies:
- deliberate what data to collect
- collect more data, oversample where needed
- extra effort in unbiased labels
-> Requirements engineering, system engineering
-> World vs machine, data quality, data cascades
Feedback Loops
Barriers to Fairness Work
- Rarely an organizational priority, mostly reactive (media pressure, regulators)
- Limited resources for proactive work
- Fairness work rarely required as deliverable, low priority, ignorable
- No accountability for actually completing fairness work, unclear responsibilities
What to do?
Affect Culture Change
Buy-in from management is crucial
Show that fairness work is taken seriously through action (funding, hiring, audits, policies), not just lofty mission statements
Reported success strategies:
- Frame fairness work as financial profitable, avoiding rework and reputation cost
- Demonstrate concrete, quantified evidence of benefits of fairness work
- Continuous internal activism and education initiatives
- External pressure from customers and regulators
Documenting Model Fairness
Recall: Model cards
Mitchell, Margaret, et al. "Model cards for model reporting." In Proc. FAccT, 220-229. 2019.
Documenting Fairness of Datasets
Excerpt from a “Data Card” for Google’s Open Images Extended dataset (full data card)
Machine Learning in Production
Explainability and Interpretability
Explainability as Building Block in Responsible Engineering
Learning Goals
- Understand the importance of and use cases for interpretability
- Explain the tradeoffs between inherently interpretable models and post-hoc explanations
- Measure interpretability of a model
- Select and apply techniques to debug/provide explanations for data, models and model predictions
- Eventuate when to use interpretable models rather than ex-post explanations
Image: Gong, Yuan, and Christian Poellabauer. "An overview of vulnerabilities of voice controlled systems." arXiv preprint arXiv:1803.09156 (2018).
Detecting Anomalous Commits
Goyal, Raman, Gabriel Ferreira, Christian Kästner, and James Herbsleb. "Identifying unusual commits on GitHub." Journal of Software: Evolution and Process 30, no. 1 (2018): e1893.
Is this recidivism model fair?
IF age between 18–20 and sex is male THEN
predict arrest
ELSE IF age between 21–23 and 2–3 prior offenses THEN
predict arrest
ELSE IF more than three priors THEN
predict arrest
ELSE
predict no arrest
Rudin, Cynthia. "Stop explaining black box machine learning models for high stakes decisions and use interpretable models instead." Nature Machine Intelligence 1, no. 5 (2019): 206-215.
How to interpret the results?
Image source (CC BY-NC-ND 4.0): Christin, Angèle. (2017). Algorithms in practice: Comparing web journalism and criminal justice. Big Data & Society. 4.
Debugging
- Why did the system make a wrong prediction in this case?
- What does it actually learn?
- What data makes it better?
- How reliable/robust is it?
- How much does second model rely on outputs of first?
- Understanding edge cases
Debugging is the most common use in practice (Bhatt et al. "Explainable machine learning in deployment." In Proc. FAccT. 2020.)
Understanding a Model
Levels of explanations:
- Understanding a model
- Explaining a prediction
- Understanding the data
Inherently Interpretable: Sparse Linear Models
f(x)=α+β1x1+...+βnxn
Truthful explanations, easy to understand for humans
Easy to derive contrastive explanation and feature importance
Requires feature selection/regularization to minimize to few important features (e.g. Lasso); possibly restricting possible parameter values
Score card: Sparse linear model with "round" coefficients
Post-Hoc Model Explanation: Global Surrogates
- Select dataset X (previous training set or new dataset from same distribution)
- Collect model predictions for every value: yi=f(xi)
- Train inherently interpretable model g on (X,Y)
- Interpret surrogate model g
Can measure how well g fits f with common model quality measures, typically R2
Advantages? Disadvantages?
Post-Hoc Model Explanation: Feature Importance
Source: Christoph Molnar. "Interpretable Machine Learning." 2019
Post-Hoc Model Explanation: Partial Dependence Plot (PDP)
Source: Christoph Molnar. "Interpretable Machine Learning." 2019
Understanding Predictions from Inherently Interpretable Models is easy
Derive key influence factors or decisions from model parameters
Derive contrastive counterfacturals from models
Examples: Predict arrest for 18 year old male with 1 prior:
IF age between 18–20 and sex is male THEN predict arrest
ELSE IF age between 21–23 and 2–3 prior offenses THEN predict arrest
ELSE IF more than three priors THEN predict arrest
ELSE predict no arrest
Posthoc Prediction Explanation: Feature Influences
Which features were most influential for a specific prediction?
Source: https://github.com/marcotcr/lime
Feature Influences in Images
Source: https://github.com/marcotcr/lime
Example: Anchors
Source: Ribeiro, Marco Tulio, Sameer Singh, and Carlos Guestrin. "Anchors: High-precision model-agnostic explanations." In Thirty-Second AAAI Conference on Artificial Intelligence. 2018.
Multiple Counterfactuals
Often long or multiple explanations
Your loan application has been declined. If your savings account ...
Your loan application has been declined. If your lived in ...
Report all or select "best" (e.g. shortest, most actionable, likely values)
(Rashomon effect)
Prototypes and Criticisms
- Prototype is a data instance that is representative of all the data
- Criticism is a data instance not well represented by the prototypes
Source: Christoph Molnar. "Interpretable Machine Learning." 2019
Influential Instance
Data debugging: What data most influenced the training?
Source: Christoph Molnar. "Interpretable Machine Learning." 2019
Breakout: Debugging with Explanations
In groups, discuss which explainability approaches may help and why. Tagging group members, write to #lecture.
Algorithm bad at recognizing some signs in some conditions:
Graduate appl. system seems to rank applicants from HBCUs low:
Left Image: CC BY-SA 4.0, Adrian Rosebrock
Tell the user when a lack of data might mean they’ll need to use their own judgment. Don’t be afraid to admit when a lack of data could affect the quality of the AI recommendations.
Source: People + AI Guidebook, Google
Setting Cancer Imaging -- What explanations do radiologists want?
- Past attempts often not successful at bringing tools into production. Radiologists do not trust them. Why?
- Wizard of oz study to elicit requirements
Explanations foster Trust
Users are less likely to question the model when explanations provided
- Even if explanations are unreliable
- Even if explanations are nonsensical/incomprehensible
Danger of overtrust and intentional manipulation
Stumpf, Simone, Adrian Bussone, and Dympna O’sullivan. "Explanations considered harmful? user interactions with machine learning systems." In Proceedings of the ACM SIGCHI Conference on Human Factors in Computing Systems (CHI). 2016.
(a) Rationale, (b) Stating the prediction, (c) Numerical internal values
Observation: Both experts and non-experts overtrust numerical explanations, even when inscrutable.
Ehsan, Upol, Samir Passi, Q. Vera Liao, Larry Chan, I. Lee, Michael Muller, and Mark O. Riedl. "The who in explainable AI: how AI background shapes perceptions of AI explanations." arXiv preprint arXiv:2107.13509 (2021).
"Stop explaining ..."
Hypotheses:
- It is a myth that there is necessarily a trade-off between accuracy and interpretability (when having meaningful features)
- Explainable ML methods provide explanations that are not faithful to what the original model computes
- Explanations often do not make sense, or do not provide enough detail to understand what the black box is doing
- Black box models are often not compatible with situations where information outside the database needs to be combined with a risk assessment
- Black box models with explanations can lead to an overly complicated decision pathway that is ripe for human error
Rudin, Cynthia. "Stop explaining black box machine learning models for high stakes decisions and use interpretable models instead." Nature Machine Intelligence 1.5 (2019): 206-215. (Preprint)
Machine Learning in Production
Transparency and Accountability
More Explainability, Policy, and Politics
Learning Goals
- Explain key concepts of transparency and trust
- Discuss whether and when transparency can be abused to game the system
- Design a system to include human oversight
- Understand common concepts and discussions of accountability/culpability
- Critique regulation and self-regulation approaches in ethical machine learning
Case Study: Facebook's Feed Curation
Eslami, Motahhare, et al. I always assumed that I wasn't really that close to [her]: Reasoning about Invisible Algorithms in News Feeds. In Proc. CHI, 2015.
Gaming/Attacking the Model with Explanations?
Does providing an explanation allow customers to 'hack' the system?
- Loan applications?
- Apple FaceID?
- Recidivism?
- Auto grading?
- Cancer diagnosis?
- Spam detection?
Human Oversight and Appeals
- Unavoidable that ML models will make mistakes
- Users knowing about the model may not be comforting
- Inability to appeal a decision can be deeply frustrating
Who is responsible?
Easy to Blame "The Algorithm" / "The Data" / "Software"
"Just a bug, things happen, nothing we could have done"
- But system was designed by humans
- But humans did not anticipate possible mistakes, did not design to mitigate mistakes
- But humans made decisions about what quality was good enough
- But humans designed/ignored the development process
- But humans gave/sold poor quality software to other humans
- But humans used the software without understanding it
- ...
Results from the 2018 StackOverflow Survey
Machine Learning in Production
Versioning, Provenance, and Reproducability
More Foundational Technology for Responsible Engineering
Learning Goals
- Judge the importance of data provenance, reproducibility and explainability for a given system
- Create documentation for data dependencies and provenance in a given system
- Propose versioning strategies for data and models
- Design and test systems for reproducibility
Breakout Discussion: Movie Predictions
Assume you are receiving complains that a child gets many recommendations about R-rated movies
In a group, discuss how you could address this in your own system and post to #lecture, tagging team members:
- How could you identify the problematic recommendation(s)?
- How could you identify the model that caused the prediction?
- How could you identify the training code and data that learned the model?
- How could you identify what training data or infrastructure code "caused" the recommendations?
K.G Orphanides. Children's YouTube is still churning out blood, suicide and cannibalism. Wired UK, 2018; Kristie Bertucci. 16 NSFW Movies Streaming on Netflix. Gadget Reviews, 2020
Data Provenance
- Track origin of all data
- Collected where?
- Modified by whom, when, why?
- Extracted from what other data or model or algorithm?
- ML models often based on data drived from many sources through many steps, including other models
Versioning Strategies for Datasets
- Store copies of entire datasets (like Git), identify by checksum
- Store deltas between datasets (like Mercurial)
- Offsets in append-only database (like Kafka), identify by offset
- History of individual database records (e.g. S3 bucket versions)
- some databases specifically track provenance (who has changed what entry when and how)
- specialized data science tools eg Hangar for tensor data
- Version pipeline to recreate derived datasets ("views", different formats)
- e.g. version data before or after cleaning?
Aside: Git Internals
Scott Chacon and Ben Straub. Pro Git. 2014
Example: DVC
dvc add images
dvc run -d images -o model.p cnn.py
dvc remote add myrepo s3://mybucket
dvc push
- Tracks models and datasets, built on Git
- Splits learning into steps, incrementalization
- Orchestrates learning in cloud resources
ModelDB Example
from verta import Client
client = Client("http://localhost:3000")
proj = client.set_project("My first ModelDB project")
expt = client.set_experiment("Default Experiment")
# log the first run
run = client.set_experiment_run("First Run")
run.log_hyperparameters({"regularization" : 0.5})
run.log_dataset_version("training_and_testing_data", dataset_version)
model1 = # ... model training code goes here
run.log_metric('accuracy', accuracy(model1, validationData))
run.log_model(model1)
# log the second run
run = client.set_experiment_run("Second Run")
run.log_hyperparameters({"regularization" : 0.8})
run.log_dataset_version("training_and_testing_data", dataset_version)
model2 = # ... model training code goes here
run.log_metric('accuracy', accuracy(model2, validationData))
run.log_model(model2)
Logging and Audit Traces
Key goal: If a customer complains about an interaction, can we reproduce the prediction with the right model? Can we debug the model's pipeline and data? Can we reproduce the model?
- Version everything
- Record every model evaluation with model version
- Append only, backed up
<date>,<model>,<model version>,<feature inputs>,<output>
<date>,<model>,<model version>,<feature inputs>,<output>
<date>,<model>,<model version>,<feature inputs>,<output>
Machine Learning in Production
Security and Privacy
More responsible engineering...
Learning Goals
- Explain key concerns in security (in general and with regard to ML models)
- Identify security requirements with threat modeling
- Analyze a system with regard to attacker goals, attack surface, attacker capabilities
- Describe common attacks against ML models, including poisoning and evasion attacks
- Understand design opportunities to address security threats at the system level
- Apply key design principles for secure system design
Evasion Attacks (Adversarial Examples)
Attack at inference time
- Add noise to an existing sample & cause misclassification
- Possible with and without access to model internals
Accessorize to a Crime: Real and Stealthy Attacks on State-of-the-Art Face Recognition, Sharif et al. (2016).
Task Decision Boundary vs Model Boundary
From Goodfellow et al (2018). Making machine learning robust against adversarial inputs. Communications of the ACM, 61(7), 56-66.
Untargeted Poisoning Attack on Availability
Inject mislabeled training data to damage model quality
- 3% poisoning => 11% decrease in accuracy (Steinhardt, 2017)
Attacker must have some access to the public or private training set
Example: Anti-virus (AV) scanner: AV company (allegedly) poisoned competitor's model by submitting fake viruses
Targeted Poisoning Attacks on Integrity
Insert training data with seemingly correct labels
More targeted than availability attack, cause specific misclassification
Poison Frogs! Targeted Clean-Label Poisoning Attacks on Neural Networks, Shafahi et al. (2018)
Model Stealing Attacks
Singel. Google Catches Bing Copying; Microsoft Says 'So What?'. Wired 2011.
Model Inversion against Confidentiality
Given a model output (e.g., name of a person), infer the corresponding, potentially sensitive input (facial image of the person)
- e.g., gradient descent on input space
Model Inversion Attacks that Exploit Confidence Information and Basic Countermeasures, M. Fredrikson et al. in CCS (2015).
Breakout: Dashcam System
Recall: Dashcam system from I2/I3
As a group, tagging members, post in #lecture:
- Security requirements
- Possible (ML) attacks on the system
- Possible mitigations against these attacks
State of ML Security
STRIDE Threat Modeling
A systematic approach to identifying threats (i.e., attacker actions)
- Construct an architectural diagram with components & connections
- Designate the trust boundary
- For each untrusted component/connection, identify threats
- For each potential threat, devise a mitigation strategy
Secure Design Principles
Minimize the impact of a compromised component
- Principle of least privilege: A component given only minimal privileges needed to fulfill its functionality
- Isolation/compartmentalization: Components should be able to interact with each other no more than necessary
- Zero-trust infrastructure: Components treat inputs from each other as potentially malicious
Monitoring & detection
- Identify data drift and unusual activity
Andew Pole, who heads a 60-person team at Target that studies customer behavior, boasted at a conference in 2010 about a proprietary program that could identify women - based on their purchases and demographic profile - who were pregnant.
Lipka. "What Target knows about you". Reuters, 2014
Data Lakes
Who has access?
Privacy Consent and Control
Machine Learning in Production
Safety
Mitigating more mistakes...
Learning Goals
- Understand safety concerns in traditional and AI-enabled systems
- Apply hazard analysis to identify risks and requirements and understand their limitations
- Discuss ways to design systems to be safe against potential failures
- Suggest safety assurance strategies for a specific project
- Describe the typical processes for safety evaluations and their limitations
AI Safety
Amodei, Dario, Chris Olah, Jacob Steinhardt, Paul Christiano, John Schulman, and Dan Mané. "Concrete problems in AI safety." arXiv preprint arXiv:1606.06565 (2016).
Reward Hacking -- Many Examples
Practical Alignment Problems
Does the model goal align with the system goal? Does the system goal align with the user's goals?
- Profits (max. accuracy) vs fairness
- Engagement (ad sales) vs enjoyment, mental health
- Accuracy vs operating costs
Test model and system quality in production
(see requirements engineering and architecture lectures)
Robustness in a Safety Setting
- Does the model reliably detect stop signs?
- Also in poor lighting? In fog? With a tilted camera? Sensor noise?
- With stickers taped to the sign? (adversarial attacks)
Image: David Silver. Adversarial Traffic Signs. Blog post, 2017
No Model is Fully Robust
- Every useful model has at least one decision boundary
- Predictions near that boundary are not (and should not) be robust
Breakout: Robustness
Scenario: Medical use of transcription service, dictate diagnoses and prescriptions
As a group, tagging members, post to #lecture:
- What safety concerns can you anticipate?
- What notion of robustness are you concerned about (i.e., what distance function)?
- How could you use robustness to improve the product (i.e., when/how to check robustness)?
Safety != Reliability
Reliability = absence of defects, mean time between failure
Safety = prevents accidents, harms
Can build safe systems from unreliable components (e.g. redundancy, safeguards)
System may be unsafe despite reliable components (e.g. stronger gas tank causes more severe damage in incident)
Accuracy and robustness are about reliability!
Safety of AI-Enabled Systems
Improving Safety of ML-Enabled Systems
Anticipate problems (hazard analysis, FTA, FMEA, HAZOP, ...)
Anticipate the existence of unanticipated problems
Plan for mistakes, design mitigations
- Human in the loop
- Undoable actions, failsoft
- Guardrails
- Mistaked detection
- Redundancy, ...
Improve reliability (accuracy, robustness)
Demonstrating Safety
Two main strategies:
- Evidence of safe behavior in the field
- Extensive field trials
- Usually expensive
- Evidence of responsible (safety) engineering process
- Process with hazard analysis, testing mitigations, etc
- Not sufficient to assure safety
Most standards require both
Documenting Safety with Assurance (Safety) Cases
Machine Learning in Production
Fostering Interdisciplinary Teams
(Process and Team Reflections)
One last crosscutting topic
Learning Goals
- Understand different roles in projects for AI-enabled systems
- Plan development activities in an inclusive fashion for participants in different roles
- Diagnose and address common teamwork issues
- Describe agile techniques to address common process and communication issues
Case Study: Depression Prognosis on Social Media
Continuum of Skills
- Software Engineer
- Data Engineer
- Data Scientist
- Applied Scientist
- Research Scientist
Talk: Ryan Orban. Bridging the Gap Between Data Science & Engineer: Building High-Performance Teams. 2016
Process Costs
n(n − 1) / 2 communication links within a team
Congurence
Structural congruence, Geographical congruence, Task congruence, IRC communication congruence
Breakout: Team Structure for Depression Prognosis
In groups, tagging team members, discuss and post in #lecture:
- How to decompose the work into teams?
- What roles to recruit for the teams
Conflicting Goals?
Matrix Organization
Project Organization
Team issues: Groupthink
Mitigation Strategies
- Diversity in team composition
- Culture of open conflicts
- Appoint devil's advocate in discussions, moderate and rotate speaker order, leaders hide opinions in discussions
- Involve outside experts
- Always request a second solution
- Monitoring and process measurement
- Agile techniques as planning poker, on-site customer
Learning from DevOps
Today
(1)
Looking back at the semester
(413 slides in 40 min)
(2)
Discussion of future of ML in Production
(3)
Feedback for future semesters
The Future of Machine Learning in Production?
(closing remarks)
Are Software Engineers Disappearing?
see also Andrej Karpathy. Software 2.0. Blog, 2017
Are Data Scientists Disappearing?
Ryohei Fujimaki. AutoML 2.0: Is The Data Scientist Obsolete? Forbes, 2020
Are Data Scientists Disappearing?
However, AutoML does not spell the end of data scientists, as it doesn’t “AutoSelect” a business problem to solve, it doesn’t AutoSelect indicative data, it doesn’t AutoAlign stakeholders, it doesn’t provide AutoEthics in the face of potential bias, it doesn’t provide AutoIntegration with the rest of your product, and it doesn’t provide AutoMarketing after the fact. -- Frederik Bussler
Frederik Bussler. Will AutoML Be the End of Data Scientists?, Blog 2020
SE4AI Research: More SE Power to Data Scientists?
SE4AI Research: More DS Power to Software Engineers?
Analogy
Analogy
(better tools don't replace the knowledge to use them)
My View
This is an education problem, more than a research problem.
Interdisciplinary teams, mutual awareness and understanding
Software engineers and data scientists will each play an essential role
DevOps as a Role Model
Joint responsibilities, joint processes, joint tools, joint vocabulary
One Last Time: Transcription
Feedback
Some things we tried
- Scaling the class!
- Stable TA-team mapping and checkins
- In-class interactions with 50+ students
- In-class breakouts, posting to slack
- Clear specifications for homework, pass/fail grading, allow resubmission
- Open-ended reading quizzes
- Credit for social activities in teams
- Team checkins, peer grading for "team citizenship"
- Slack for coordination and questions
Feedback
- What was useful?
- What could be improved?
- Where did we overdo it with the homework?
- Ideas for better scaling?
- How to better support teamwork?
- How to better use the recitations?
