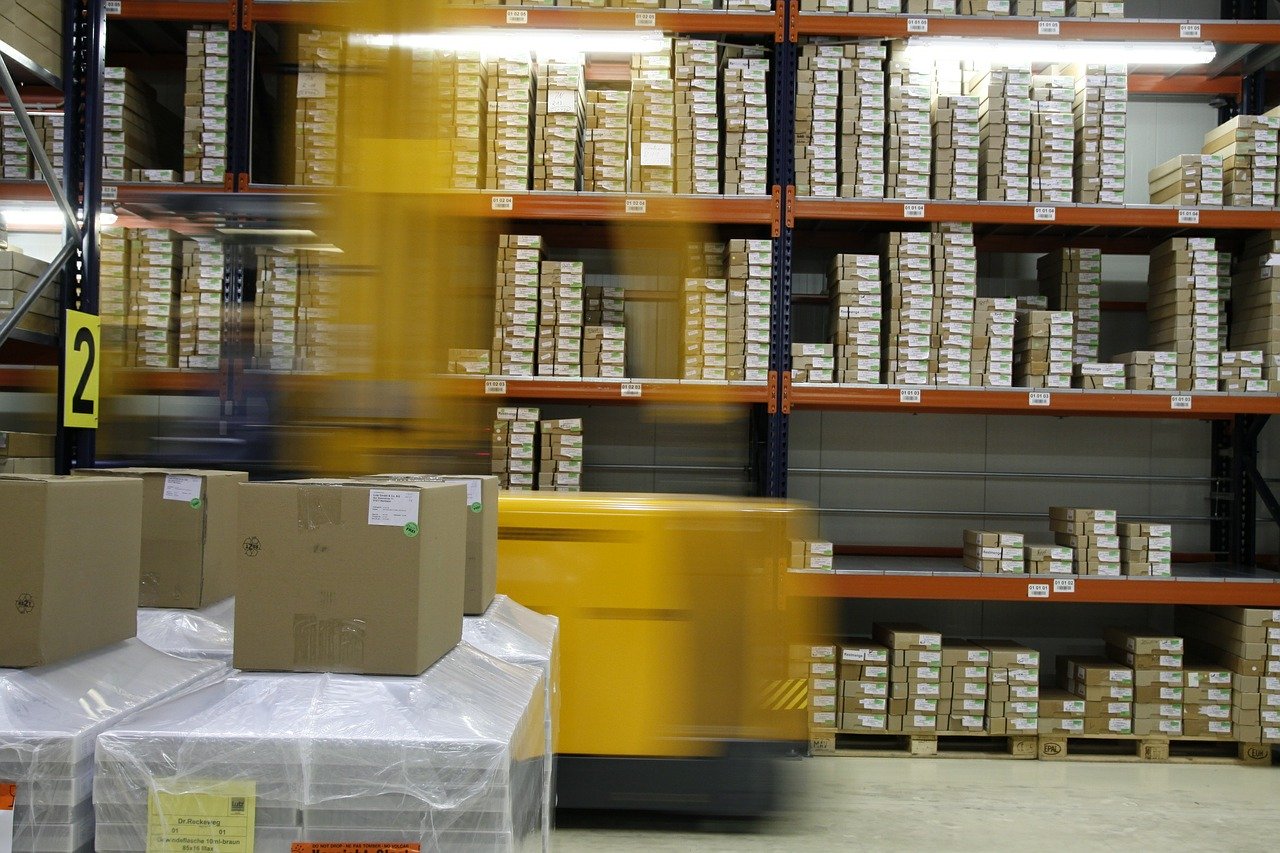

Case Study: Inventory Management

Inventory Database

Product Database:

Stock:

Sales history:

What makes good quality data?

• Accuracy
  • The data was recorded correctly.
• Completeness
  • All relevant data was recorded.
• Uniqueness
  • The entries are recorded once.
• Consistency
  • The data agrees with itself.
• Timeliness
  • The data is kept up to date.

Data is noisy

• Unreliable sensors or data entry
• Wrong results and computations, crashes
• Duplicate data, near-duplicate data
• Out of order data
• Data format invalid
• Examples?

Data changes

• System objective changes over time
• Software components are upgraded or replaced
• Prediction models change
• Quality of supplied data changes
• User behavior changes
• Assumptions about the environment no longer hold
• Examples?

Users may deliberately change data

• Users react to model output
• Users try to game/deceive the model
• Examples?

Many Data Sources

sources of different reliability and quality

Accuracy and Precision in Training Data?

Data Quality and Machine Learning

• More data -> better models (up to a point, diminishing effects)
• Noisy data (imprecise) -> less confident models, more data needed
  • some ML techniques are more or less robust to noise (more on robustness in a later lecture)
• Inaccurate data -> misleading models, biased models
• Need the "right" data
• Invest in data quality, not just quantity

Exploratory Data Analysis in Data Science

• Before learning, understand the data
• Understand types, ranges, distributions
• Important for understanding data and assessing quality

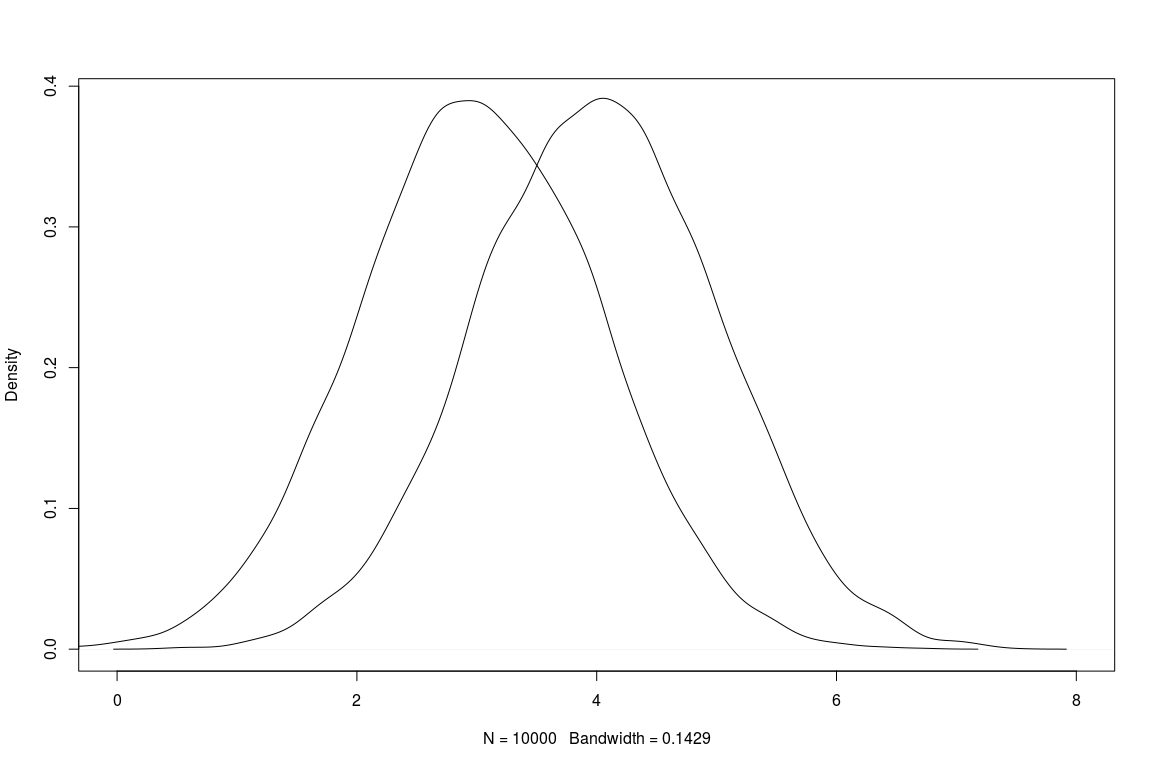

• Plot data distributions for features
  • Visualizations in a notebook
  • Boxplots, histograms, density plots, scatter plots, ...
• Explore outliers
• Look for correlations and dependencies
  • Association rule mining
  • Principal component analysis

Examples: https://rpubs.com/ablythe/520912 and https://towardsdatascience.com/exploratory-data-analysis-8fc1cb20fd15

SE Perspective: Understanding Data for Quality Assurance

• Understand input and output data
• Understand expected distributions
• Understand assumptions made on data for modeling
  • ideally document those
• Check assumptions at runtime

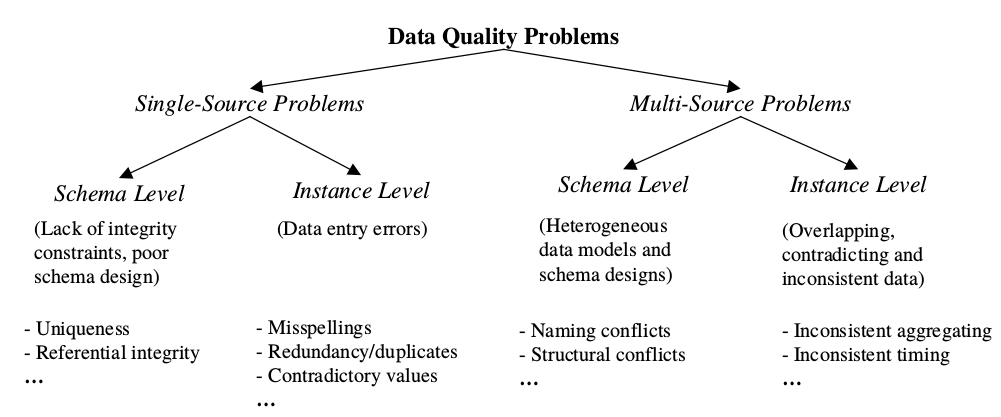

Single-Source Problem Examples

• Schema level:
  • Illegal attribute values: bdate=30.13.70
  • Violated attribute dependencies: age=22, bdate=12.02.70
  • Uniqueness violation: (name=”John Smith”, SSN=”123456”), (name=”Peter Miller”, SSN=”123456”)
  • Referential integrity violation: emp=(name=”John Smith”, deptno=127) if department 127 not defined
• Instance level:
  • Missing values: phone=9999-999999
  • Misspellings: city=Pittsburg
  • Misfielded values: city=USA
  • Duplicate records: name=John Smith, name=J. Smith
  • Wrong reference: emp=(name=”John Smith”, deptno=127) if department 127 defined but wrong

Dirty Data: Example

Problems with the data?

Discussion: Potential Data Quality Problems?

Data Cleaning Overview

• Data analysis / Error detection
  • Error types: e.g. schema constraints, referential integrity, duplication
  • Single-source vs multi-source problems
  • Detection in input data vs detection in later stages (more context)
• Error repair
  • Repair data vs repair rules, one at a time or holistic
  • Data transformation or mapping
  • Automated vs human guided

Error Detection

• Illegal values: min, max, variance, deviations, cardinality
• Misspelling: sorting + manual inspection, dictionary lookup
• Missing values: null values, default values
• Duplication: sorting, edit distance, normalization

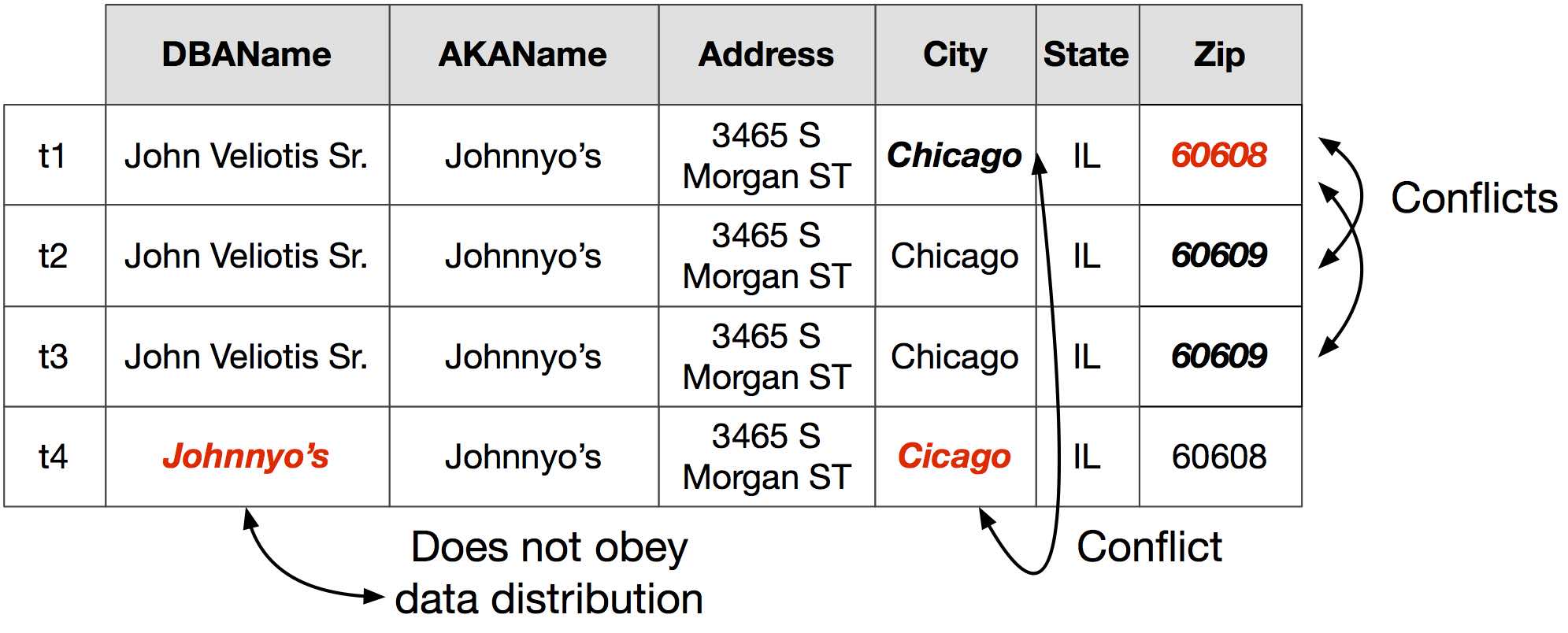

Error Detection: Example

Q. Can we (automatically) detect errors? Which errors are problem-dependent?

Common Strategies

• Enforce schema constraints
  • e.g., delete rows with missing data or use defaults
• Explore sources of errors
  • e.g., debugging missing values, outliers
• Remove outliers
  • e.g., Testing for normal distribution, remove > 2σ
• Normalization
  • e.g., range [0, 1], power transform
• Fill in missing values

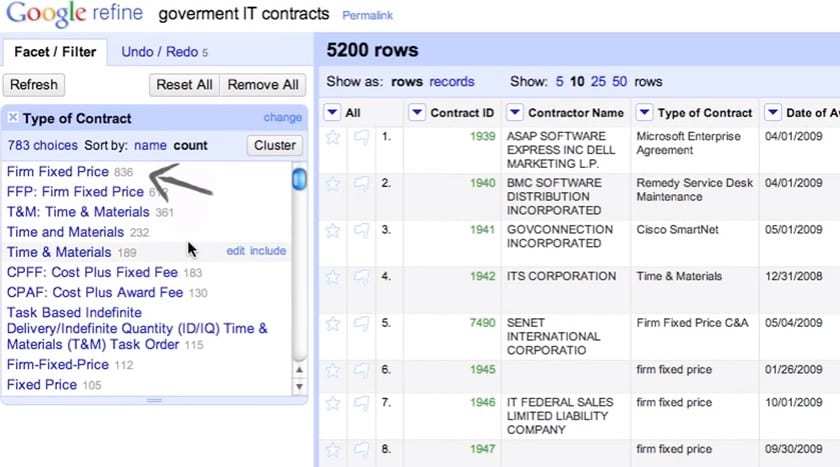

Data Cleaning Tools

OpenRefine (formerly Google Refine), Trifacta Wrangler, Drake, etc.,

Different Cleaning Tools

• Outlier detection
• Data deduplication
• Data transformation
• Rule-based data cleaning and rule discovery
  • (conditional) functional dependencies and other constraints
• Probabilistic data cleaning

Data Schema

• Define expected format of data
  • expected fields and their types
  • expected ranges for values
  • constraints among values (within and across sources)
• Data can be automatically checked against schema
• Protects against change; explicit interface between components

Schema in Relational Databases

CREATE TABLE employees (
    emp_no      INT             NOT NULL,
    birth_date  DATE            NOT NULL,
    name        VARCHAR(30)     NOT NULL,
    PRIMARY KEY (emp_no));
CREATE TABLE departments (
    dept_no     CHAR(4)         NOT NULL,
    dept_name   VARCHAR(40)     NOT NULL,
    PRIMARY KEY (dept_no), UNIQUE  KEY (dept_name));
CREATE TABLE dept_manager (
   dept_no      CHAR(4)         NOT NULL,
   emp_no       INT             NOT NULL,
   FOREIGN KEY (emp_no)  REFERENCES employees (emp_no),
   FOREIGN KEY (dept_no) REFERENCES departments (dept_no),
   PRIMARY KEY (emp_no,dept_no));

Schema-Less Data Exchange

• CSV files
• Key-value stores (JSon, XML, Nosql databases)
• Message brokers
• REST API calls
• R/Pandas Dataframes

1::Toy Story (1995)::Animation|Children's|Comedy
2::Jumanji (1995)::Adventure|Children's|Fantasy
3::Grumpier Old Men (1995)::Comedy|Romance

10|53|M|lawyer|90703
11|39|F|other|30329
12|28|F|other|06405
13|47|M|educator|29206

Example: Apache Avro

{   "type": "record",
    "namespace": "com.example",
    "name": "Customer",
    "fields": [{
            "name": "first_name",
            "type": "string",
            "doc": "First Name of Customer"
        },
        {
            "name": "age",
            "type": "int",
            "doc": "Age at the time of registration"
        }
    ]
}

Example: Apache Avro

• Schema specification in JSON format
• Serialization and deserialization with automated checking
• Native support in Kafka
• Benefits
  • Serialization in space efficient format
  • APIs for most languages (ORM-like)
  • Versioning constraints on schemas
• Drawbacks
  • Reading/writing overhead
  • Binary data format, extra tools needed for reading
  • Requires external schema and maintenance
  • Learning overhead

Many Schema Formats

Examples

• Avro
• XML Schema
• Protobuf
• Thrift
• Parquet
• ORC

Discussion: Data Schema for Inventory System?

Product Database:

Stock:

Sales history:

Data Quality Rules

• Invariants on data that must hold
• Typically about relationships of multiple attributes or data sources, eg.
  • ZIP code and city name should correspond
  • User ID should refer to existing user
  • SSN should be unique
  • For two people in the same state, the person with the lower income should not have the higher tax rate
• Classic integrity constraints in databases or conditional constraints
• Rules can be used to reject data or repair it

Discovery of Data Quality Rules

• Rules directly taken from external databases
  • e.g. zip code directory
• Given clean data,
  • several algorithms that find functional relationships ($X\Rightarrow Y$) among columns
  • algorithms that find conditional relationships (if $Z$ then $X\Rightarrow Y$)
  • algorithms that find denial constraints ($X$ and $Y$ cannot cooccur in a row)
• Given mostly clean data (probabilistic view),
  • algorithms to find likely rules (e.g., association rule mining)
  • outlier and anomaly detection
• Given labeled dirty data or user feedback,
  • supervised and active learning to learn and revise rules
  • supervised learning to learn repairs (e.g., spell checking)

Association rule mining

• Sale 1: Bread, Milk
• Sale 2: Bread, Diaper, Beer, Eggs
• Sale 3: Milk, Diaper, Beer, Coke
• Sale 4: Bread, Milk, Diaper, Beer
• Sale 5: Bread, Milk, Diaper, Coke

Rules

• {Diaper, Beer} -> Milk (40% support, 66% confidence)
• Milk -> {Diaper, Beer} (40% support, 50% confidence)
• {Diaper, Beer} -> Bread (40% support, 66% confidence)

(also useful tool for exploratory data analysis)

Excursion: Daikon for dynamic detection of likely invariants

• Software engineering technique to find invariants
  • e.g., i>0, a==x, this.stack != null, db.query() after db.prepare()
  • Pre- and post-conditions of functions, local variables
• Uses for documentation, avoiding bugs, debugging, testing, verification, repair
• Idea: Observe many executions (instrument code), log variable values, look for relationships (test many possible invariants)

Daikon Example

int ABS(int x) {
    if (x>0) return x;
    else return (x*(-1));
}
int main () {
    int i=0;
    int abs_i;
    for (i=-5000;i<5000;i++)
        abs_i=ABS(i);
}

==================
std.ABS(int;):::ENTER
==================
std.ABS(int;):::EXIT1
x == return
==================
std.ABS(int;):::EXIT2
return == - x
==================
std.ABS(int;):::EXIT
x == orig(x)
x <= return
==================

Probabilistic Repair

• Use rules to identify inconsistencies and the more likely fix
• If confidence high enough, apply automatically
• Show suggestions to end users (like spell checkers) or data scientists
• Many tools in this area

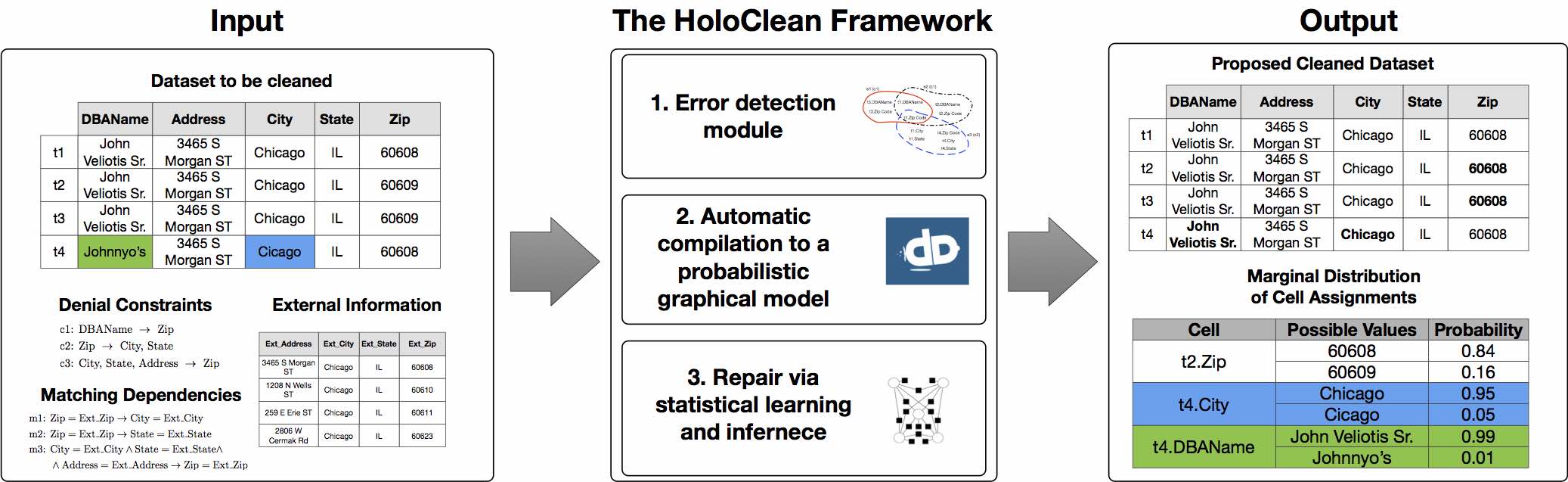

HoloClean

HoloClean: Data Quality Management with Theodoros Rekatsinas, SEDaily Podcast, 2020

Discussion: Data Quality Rules in Inventory System

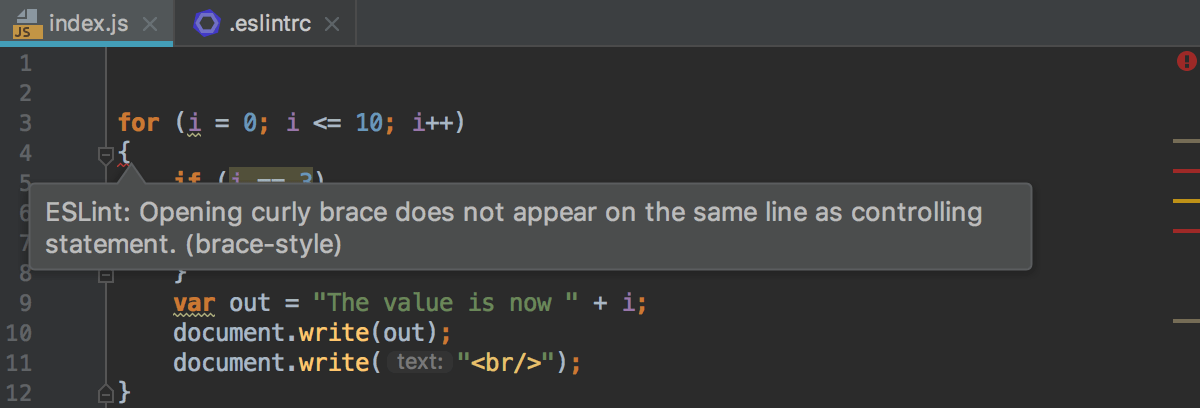

Excursion: Static Analysis and Code Linters

Automate routine inspection tasks

if (user.jobTitle = "manager") {
   ...
}

function fn() {
    x = 1;
    return x;
    x = 3; // dead code
}

PrintWriter log = null;
if (anyLogging) log = new PrintWriter(...);
if (detailedLogging) log.println("Log started");

Static Analysis

• Analyzes the structure/possible executions of the code, without running it
• Different levels of sophistication
  • Simple heuristic and code patterns (linters)
  • Sound reasoning about all possible program executions
• Tradeoff between false positives and false negatives
• Often supporting annotations needed (e.g., @Nullable)
• Tools widely available, open source and commercial

A Linter for Data?

Data Linter at Google

• Miscoding
  • Number, date, time as string
  • Enum as real
  • Tokenizable string (long strings, all unique)
  • Zip code as number
• Outliers and scaling
  • Unnormalized feature (varies widely)
  • Tailed distributions
  • Uncommon sign
• Packaging
  • Duplicate rows
  • Empty/missing data

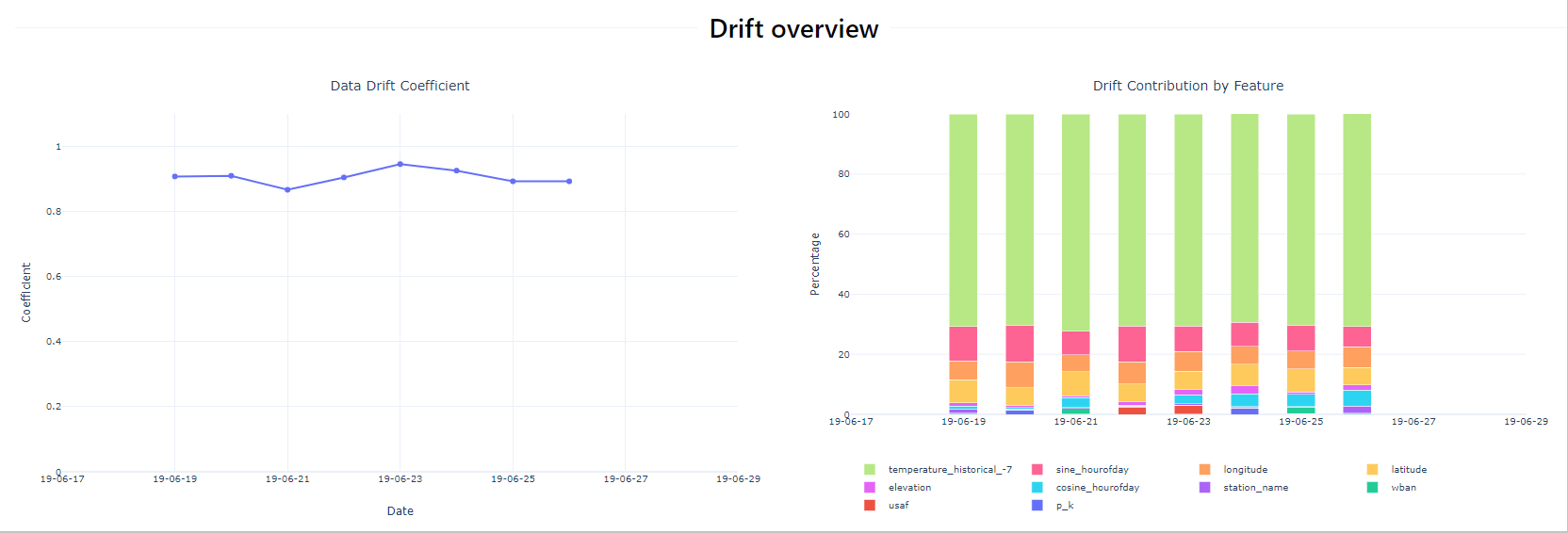

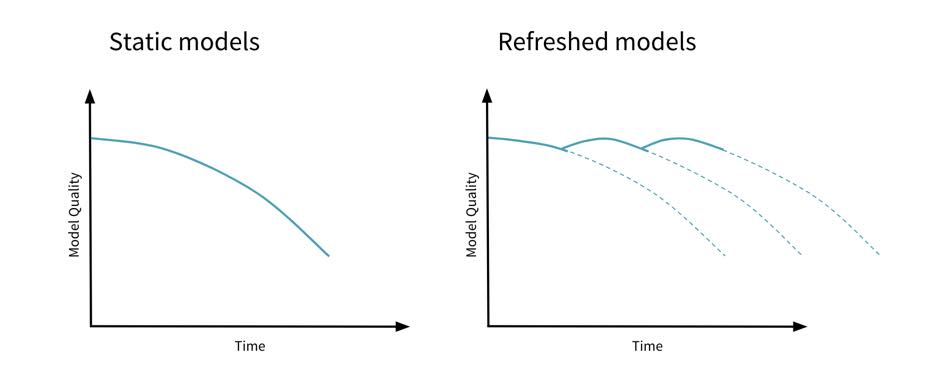

Drift & Model Decay

in all cases, models are less effective over time

• Concept drift
  • properties to predict change over time (e.g., what is credit card fraud)
  • over time: different expected outputs for same inputs
  • model has not learned the relevant concepts
• Data drift
  • characteristics of input data changes (e.g., customers with face masks)
  • input data differs from training data
  • over time: predictions less confident, further from training data
• Upstream data changes
  • external changes in data pipeline (e.g., format changes in weather service)
  • model interprets input data incorrectly
  • over time: abrupt changes due to faulty inputs

how to fix?

On Terminology

• Concept and data drift are separate concepts
• In practice and literature not always clearly distinguished
• Colloquially encompasses all forms of model degradations and environment changes
• Define term for target audience

Watch for Degradation in Prediction Accuracy

Indicators of Concept Drift

How to detect concept drift in production?

Indicators of Concept Drift

• Model degradations observed with telemetry
• Telemetry indicates different outputs over time for similar inputs
• Relabeling training data changes labels
• Interpretable ML models indicate rules that no longer fit

(many papers on this topic, typically on statistical detection)

Dealing with Drift

• Regularly retrain model on recent data
  • Use evaluation in production to detect decaying model performance
• Involve humans when increasing inconsistencies detected
  • Monitoring thresholds, automation
• Monitoring, monitoring, monitoring!

Different forms of Data Drift

• Structural drift
  • Data schema changes, sometimes by infrastructure changes
  • e.g., 4124784115 -> 412-478-4115
• Semantic drift
  • Meaning of data changes, same schema
  • e.g., Netflix switches from 5-star to +/- rating, but still uses 1 and 5
• Distribution changes
  • e.g., credit card fraud differs to evade detection
  • e.g., marketing affects sales of certain items
• Other examples?

Detecting Data Drift

• Compare distributions over time (e.g., t-test)
• Detect both sudden jumps and gradual changes
• Distributions can be manually specified or learned (see invariant detection)

Data Distribution Analysis

• Plot distributions of features (histograms, density plots, kernel density estimation)
  • identify which features drift
• Define distance function between inputs and identify distance to closest training data (eg., wasserstein and energy distance, see also kNN)
• Formal models for data drift contribution etc exist
• Anomaly detection and "out of distribution" detection
• Observe distribution of output labels

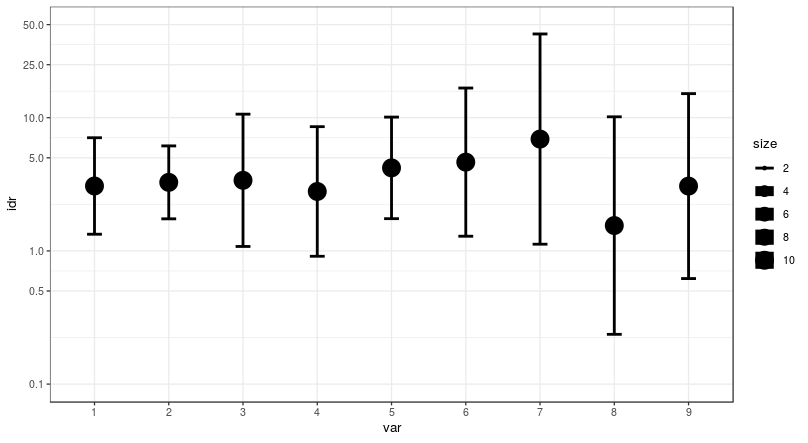

Data Distribution Example

https://rpubs.com/ablythe/520912

Microsoft Azure Data Drift Dashboard

Discussion: Inventory System

What kind of drift might be expected? What kind of detection/monitoring?

Weak Supervision -- Key Ideas

• Labeled data is expensive, unlabled data is often widely available
• Different labelers with different cost and accuracy/precision
  • crowd sourcing vs. med students vs. trained experts in labeling cancer diagnoses
• Often heuristics can define labels for some data (labeling functions)
  • hard coded heuristics (e.g., regular expressions)
  • distant supervision with external knowledge bases
  • noisy manual labels with crowd sourcing
  • external models providing some predictions
• Combine signals from labeling functions to automatically label training data

Labeling Function

For binary label, vote 1 (spam) or 0 (not spam) or -1 (abstain).

from snorkel.labeling import labeling_function


@labeling_function()
def lf_keyword_my(x):
    """Many spam comments talk about 'my channel', 'my video'."""
    return SPAM if "my" in x.text.lower() else ABSTAIN

@labeling_function()
def lf_textblob_polarity(x):
    """We use a third-party sentiment classification model."""
    return NOT_SPAM if
      TextBlob(x.text).sentiment.polarity > 0.3 else ABSTAIN

Can also represent constraints and invariants if known

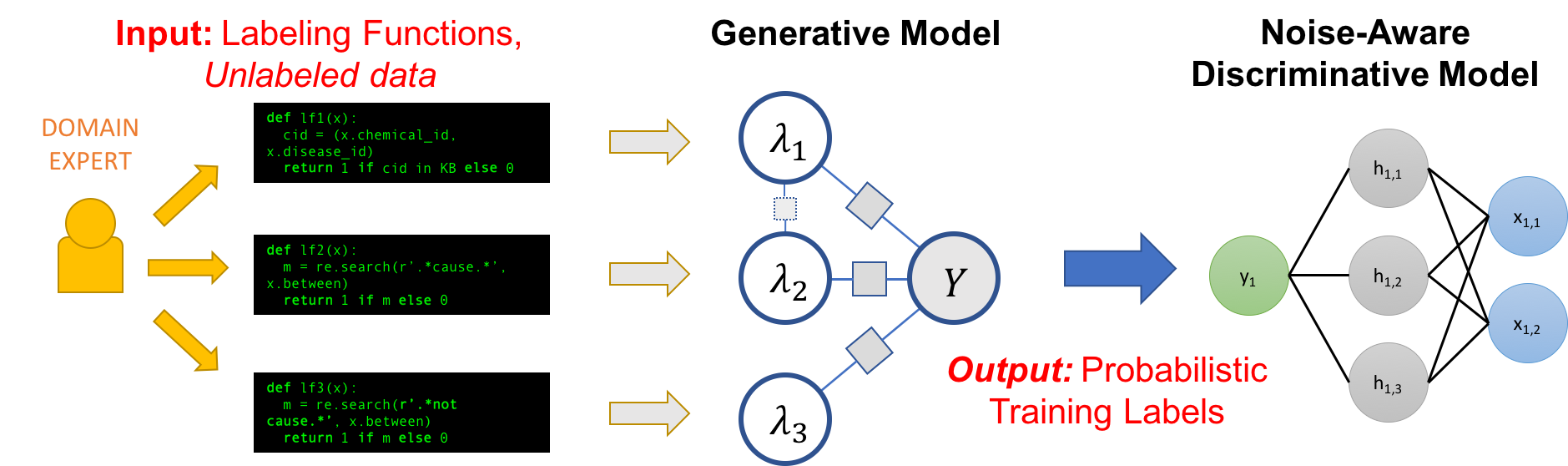

Snorkel

Generative model learns which labeling functions to trust and when (~ from correlations). Learns "expertise" of labeling functions.

Generative model used to provide probabilistic training labels. Discriminative model learned from labeled training data; generalizes beyond label functions.

Data Programming in Inventory System?

Data Programming for Detecting Toxic Comments in Youtube?

Error Handling and Testing in Pipeline

Avoid silent failures!

• Write testable data acquisition and feature extraction code
• Test this code (unit test, positive and negative tests)
• Test retry mechanism for acquisition + error reporting
• Test correct detection and handling of invalid input
• Catch and report errors in feature extraction
• Test correct detection of data drift
• Test correct triggering of monitoring system
• Detect stale data, stale models

More in a later lecture.
